TDK Surface Mount Common Mode Line Filter with Ferrite Core 200mA Idc 2520 Case ACM2520

Free Delivery in India | Lowest Global Shipping Charges

TDK Surface Mount Common Mode Line Filter with Ferrite Core 200mA Idc 2520 Case ACM2520



Category Ferrite Core Brand TDK Condition New

Specifications

Country of Origin	Japan
Brand	TDK
Height	1.2mm
Length	2.5mm
Model	ACM2520
Depth	2mm
Packaging	Reel
Series	ACM2520
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Interfaces	USB and IEEE1394 computer lines, LVDS panel link lines
Core Material	Ferrite
Standards/Approvals	REACH SVHC-Free, Halogen Free, Lead Free, RoHS
Package/Case	2520
Maximum DC Current	200mA
Pin Count	3
Maximum DC Resistance	900mΩ
Termination Style	Surface Mount
Inductor Construction	Wirewound

Key Features

Constructed with wirewound inductor on ferrite core ensuring high common-mode impedance.
Features a low differential mode impedance to maintain signal integrity at high speeds.
Temperature range from -25°C to +85°C suits various industrial environments.
Designed for surface mount technology with a 3-pin configuration for easy PCB integration.
Ideal for noise suppression on USB, IEEE1394, and LVDS lines in electronic devices.
Packaged on reels for efficient automated assembly in manufacturing.
Complies with RoHS, REACH SVHC-Free, halogen free, and lead free standards for environmental safety.
Originated from Japan, reflecting quality manufacturing standards.

Product Description

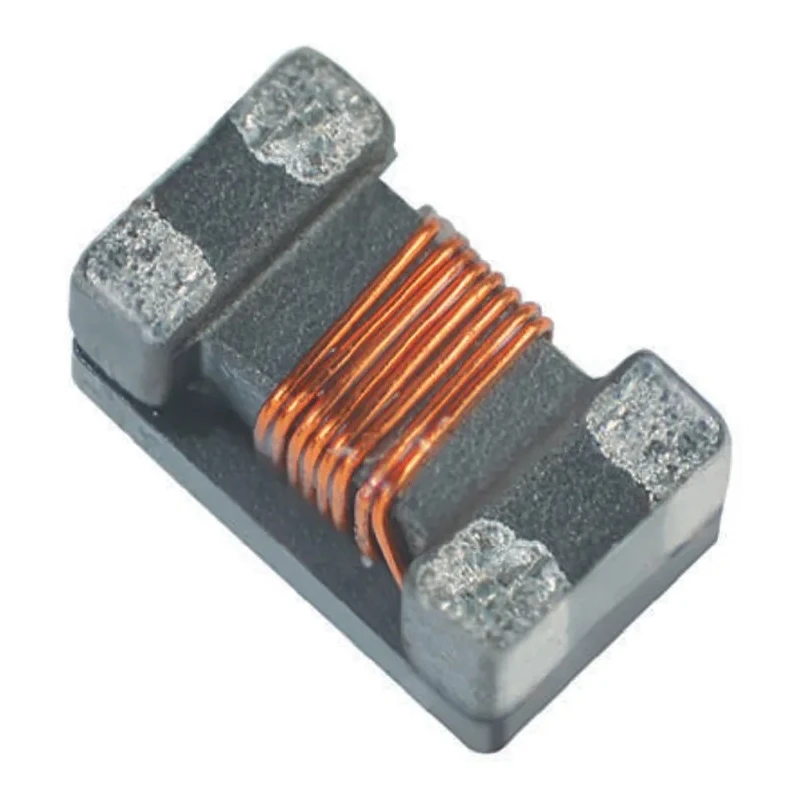

TDK ACM2520 Surface Mount Common Mode Line Filter with Ferrite Core is engineered for effective suppression of radiation and common-mode noise in electronic circuits. Rated for a maximum DC current of 200 mA, this miniature SMD common-mode choke features wirewound inductors on a ferrite core that provide over 1000 Ω of common-mode impedance at 100 MHz.

The low differential mode impedance ensures negligible effect on high-speed signals, making it suitable for applications involving USB, IEEE1394 computer lines, and LVDS panel link lines.

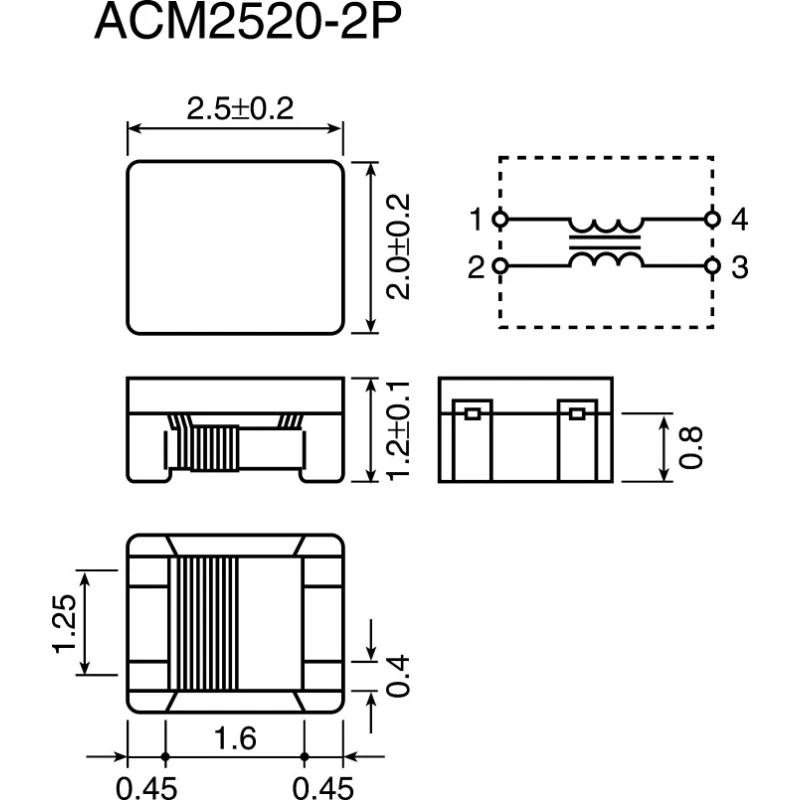

With a compact size of 2.5 mm length, 1.2 mm height, and 2.0 mm depth, the ACM2520 series is designed for surface mount assembly on PCBs, facilitating efficient mass production through reel packaging.

Operating effectively within -25°C to +85°C, this filter meets stringent environmental requirements including RoHS compliance, being halogen and lead free, and conforms to REACH SVHC-Free standards.

This product is manufactured in Japan, underscoring TDK's commitment to quality and reliability in electronic component manufacturing. Wirewound inductor construction on Ferrite Core ensures high noise filtration performance.

Compact 2520 package supports space-saving PCB designs. Maximum DC current handling of 200 mA supports modest current applications. Surface mount termination style enables automated, efficient PCB assembly. Compliant with multiple environmental and safety standards including RoHS and REACH.

Wide operating temperature range ensures suitability across diverse industrial applications. Designed to minimize impact on high-speed data signals while suppressing noise effectively. Packaged on reels for optimized production line integration.

This filter is highly applicable in industrial, automotive, telecommunications, and consumer electronics manufacturing sectors, providing reliable EMI mitigation to improve device performance and stability.

Explore more from TDK and browse our extensive selection of Surface Mount Inductors and Noise Filters on EnvMart.
