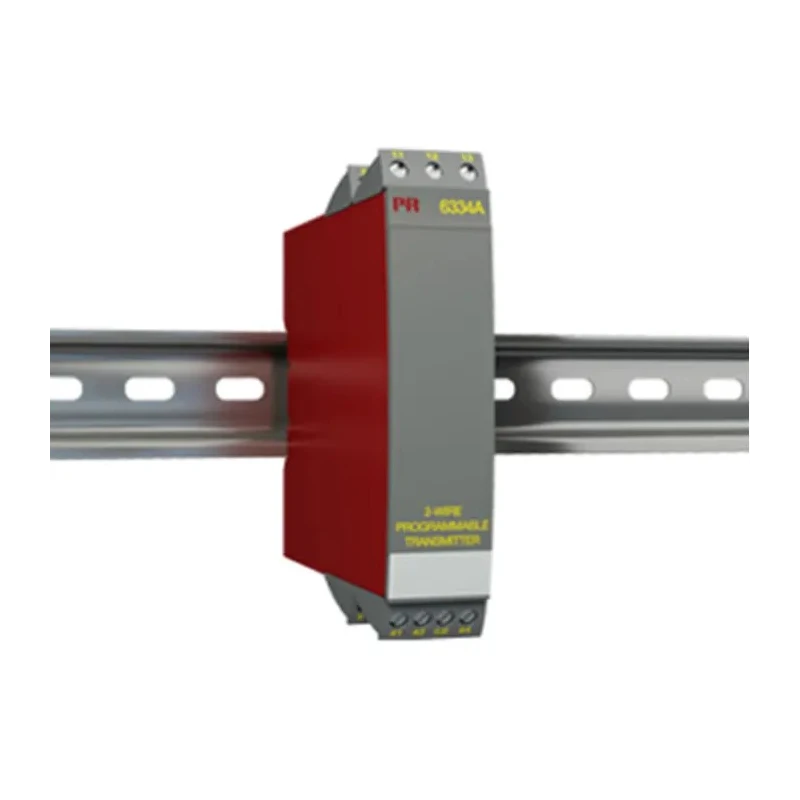

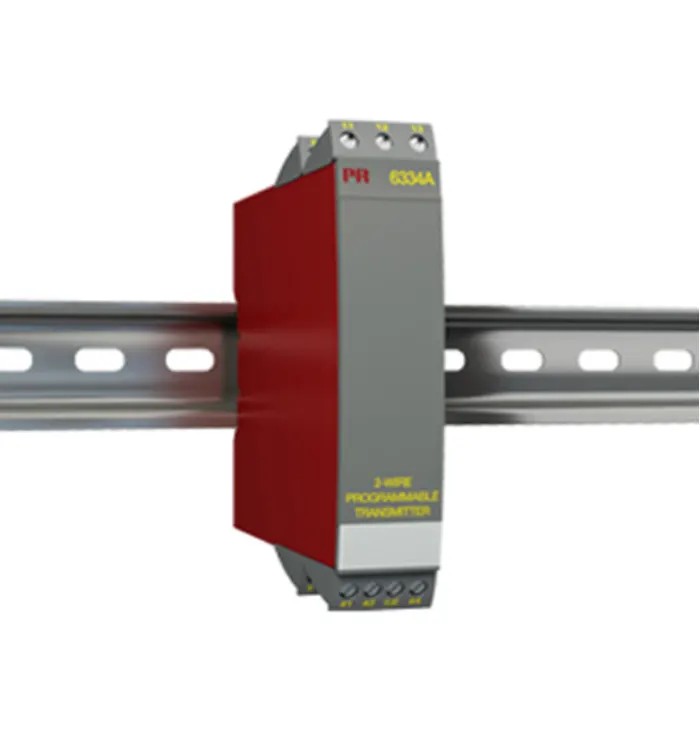

PR Electronics 2-Wire Programmable Temperature Transmitter Thermocouple Voltage Input 35V, -40°C to 85°C 6334A2A
Specifications
| Country of Origin | Denmark |
|---|---|
| Voltage | Input 35V, 85 °C, -40 °C RS Stock No |
| Diameter | 23.5mm |
| Brand | PR Electronics |
| Model | 6334A2A |
| Depth | 104mm |
| Output type | 4 to 20 mA |
| Series | 6334A |
| Input Type | Thermocouple, Voltage |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Hazardous Area Certification | ATEX, Ex |
| Standards/Approvals | EMC 2014/30/EU, EAC TR-CU 020/2011 |
| Maximum Supply Voltage | 35V |
| High immunity to conducted noise | tested against 10 Vrms in the range 15 Hz - 100 MHz |
Key Features
- Supports thermocouple and voltage input types for versatile usage.
- Outputs a 4 to 20 mA signal for standard process control compatibility.
- Operates reliably between -40°C and 85°C temperatures.
- Features galvanic isolation up to 1.5 kVAC for sensor safety.
- DIN rail mounting enables easy installation in industrial setups.
- High immunity to conducted noise tested against 10 Vrms from 15 Hz to 100 MHz.
- Sensor drift detection ensures long-term measurement reliability.
- Configured via user-friendly PReset software with PC connection.
Product Description
PR Electronics 6334A2A is a 2-wire programmable temperature transmitter designed for precise and reliable temperature measurement in industrial environments. It accepts thermocouple and voltage sensor inputs, converting these signals into a standardized 4 to 20 mA output for effective process control integration.
This transmitter offers a wide operating temperature range from -40°C to 85°C, ensuring consistent performance even under harsh conditions. Its compact form factor with a 23.5 mm diameter and 104 mm depth facilitates easy DIN rail mounting within control panels.
The 6334A2A provides galvanic isolation up to 1.5 kVAC, safeguarding sensor signals against electrical interference, and includes sensor drift detection capabilities to maintain measurement accuracy over time.
High immunity to conducted noise is a critical feature, with tests against 10 Vrms in the 15 Hz to 100 MHz range, contributing to robust and stable operation in environments with electromagnetic disturbances.
Configuration is simplified via PR Electronics’ PReset software, allowing users to program input types, output modes, sensor error detection, and calibration parameters quickly and efficiently through a standard PC connection.
Supports thermocouple and voltage inputs for versatile applications. Output range of 4 to 20 mA ensures compatibility with common control systems. Galvanic isolation up to 1.5 kVAC protects signal integrity. Sensor drift detection for reliable measurement continuity.
High noise immunity for industrial electromagnetic environments. Compact DIN rail mounting design.
Ideal for process control, industrial automation, HVAC systems, and other environments demanding precise temperature monitoring. Made in Denmark, this transmitter complies with EMC 2014/30/EU and EAC TR-CU 020/2011 standards and carries ATEX and Ex hazardous area certifications.
Explore the full range of Temperature Transmitters to find the optimal solution for your measurement needs at EnvMart.
