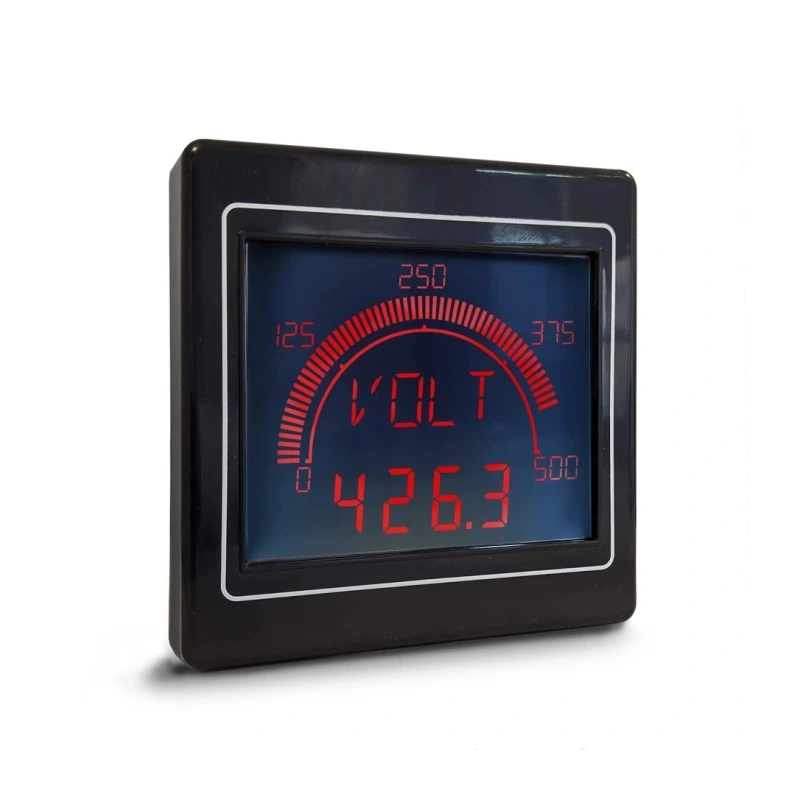

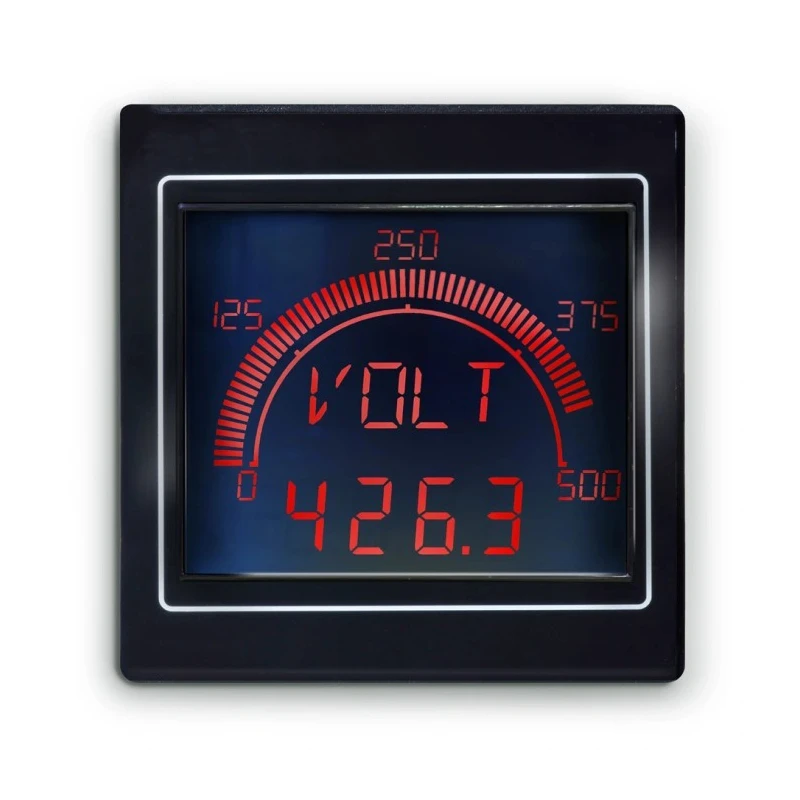

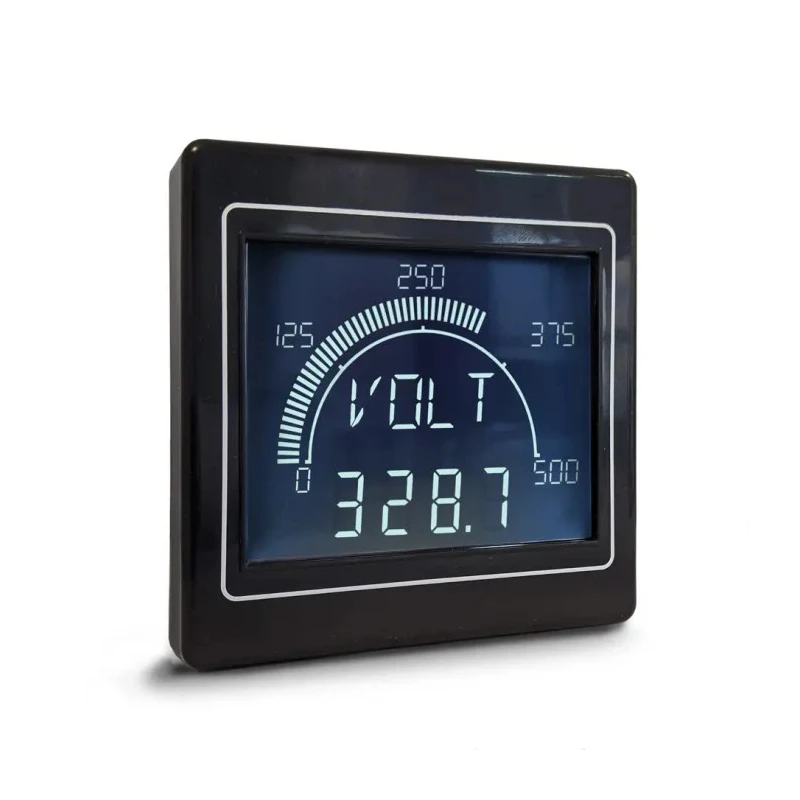

Trumeter APM LCD Multi-Function Panel Meter for Frequency, Power, Current, Voltage, 68 mm x 68 mm APM-MAX-M23-NL-4B

Free Delivery in India | Lowest Global Shipping Charges

Trumeter APM LCD Multi-Function Panel Meter for Frequency, Power, Current, Voltage, 68 mm x 68 mm APM-MAX-M23-NL-4B

Name: Trumeter APM LCD Multi-Function Panel Meter for Frequency, Power, Current, Voltage, 68 mm x 68 mm APM-MAX-M23-NL-4B
Brand: Trumeter
SKU: 112159
Price: 479.73 USD
Availability: InStock



Category Multi-Function Panel Meter Brand Trumeter Condition New

Specifications

Country of Origin	Malaysia
Display Type	LCD
Display	screen
Brand	Trumeter
Model	APM-MAX-M23-NL-4B
Depth	45mm
Series	APM
Maximum Operating Temperature	60°C
Meter Type	Electronic
Number Of Digits	4
Minimum Operating Temperature	-10°C
Digit height	14.5mm
Standards/Approvals	RoHS, CE, UL
Properties Measured	Frequency, Power, Current, Voltage
Cutout Height	68mm
Cutout Width	68mm
2 independent outputs	2 digital (open collector), 1 analogue (4 - 20mA)

Key Features

The meter features a 4-digit LCD with a 60-segment bar graph for precise readings.
It offers a 25% larger screen size compared to the standard APM series with an 81.5 mm x 66 mm display area.
Supports programmable scaling, two independent alarm set-points, and two independent digital outputs.
Includes 4-20mA analogue output and supports MODBUS RTU and TCP/IP communication protocols.
Equipped with full colour RGB dynamic backlight for instant alert notifications.
Designed for panel cutouts of 68 mm x 68 mm with a depth of 45 mm.
Operates reliably within a temperature range of -10°C to 60°C.
Electronic meter type compliant with RoHS, CE, and UL standards.

Product Description

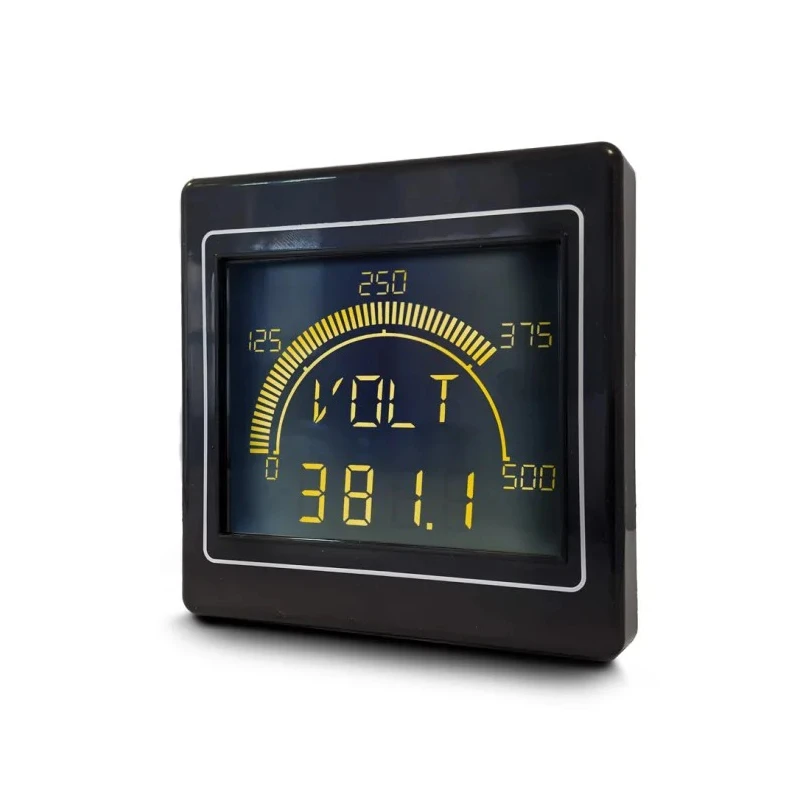

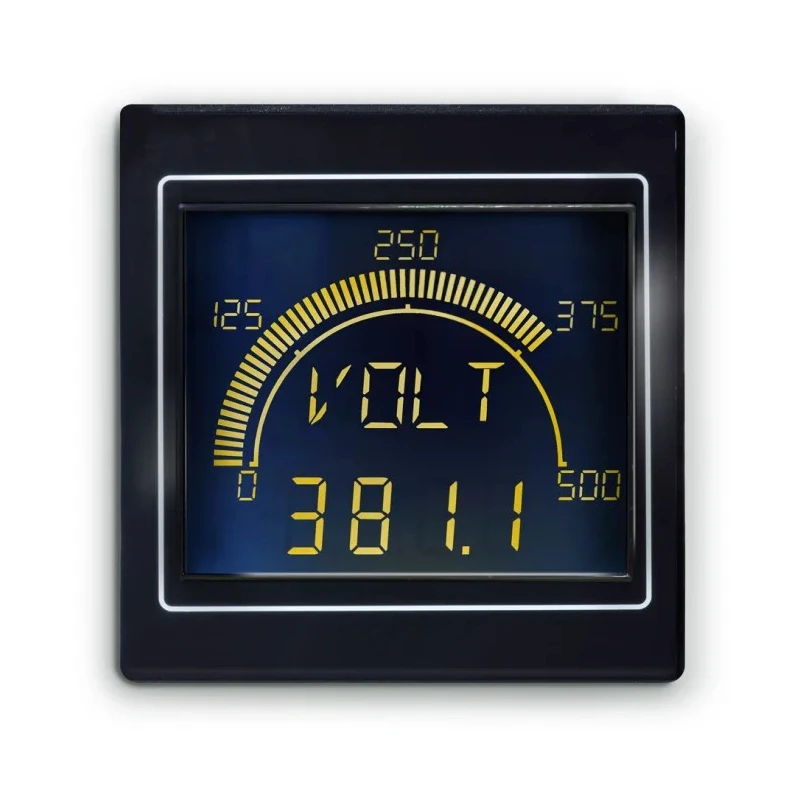

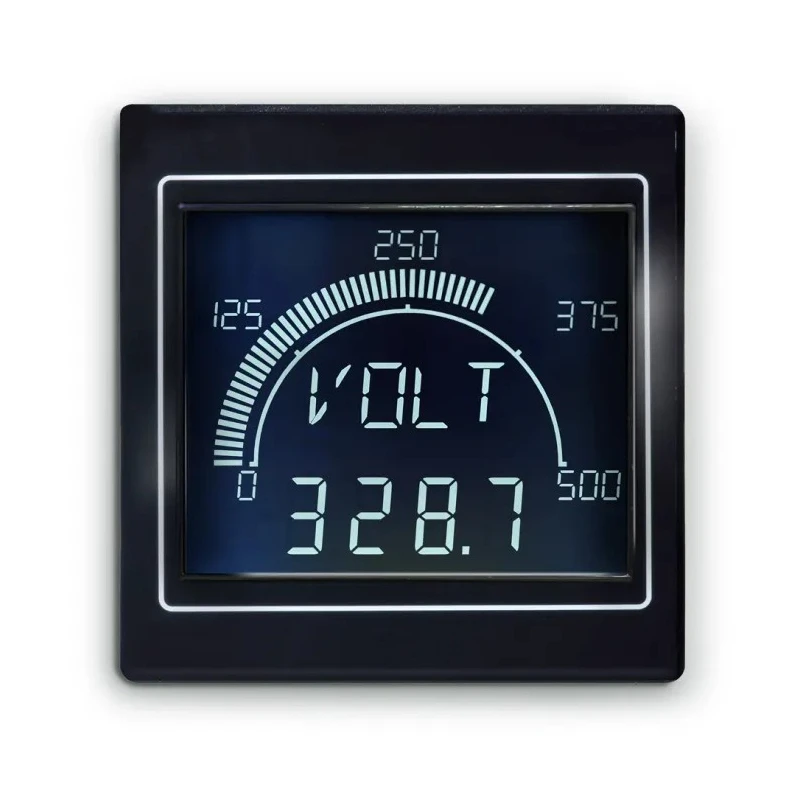

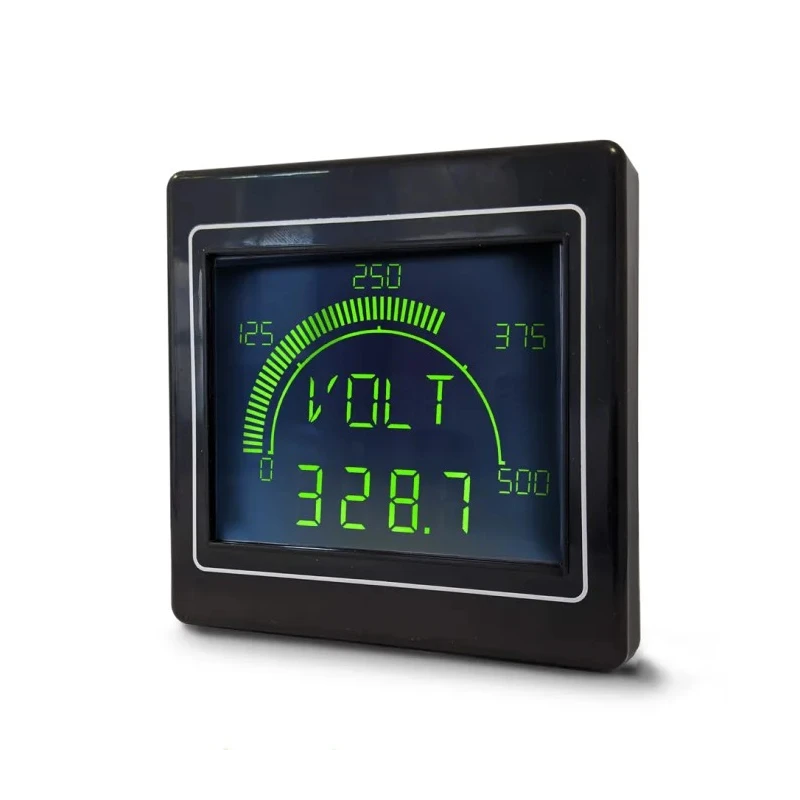

Trumeter APM-MAX-M23-NL-4B is a high-performance LCD multi-function panel meter engineered for precise measurement of frequency, power, current, and voltage. This electronic meter is designed for lower voltage applications and features a robust 68 mm x 68 mm square panel cutout size with 45 mm depth, fitting standard industrial panels.

The meter uniquely combines analogue visual representation with digital accuracy using a large 4-digit display complemented by a 60-segment bar graph and a starburst display area dedicated to messaging and alarm information. Its full-colour RGB dynamic backlight allows for customizable alert indications, improving monitoring efficiency in industrial environments.

This model supports a wide array of programmable features including scaling and range adjustments such as min/max limits, offset, gain, and 20-point non-linear scaling. It incorporates two independent alarm set-points and dual digital outputs (two open collector digital outputs), alongside a 4-20mA analogue output ensuring seamless integration with control systems via MODBUS RTU and TCP/IP protocols.

With operating temperatures ranging from -10°C to 60°C and conformity to RoHS, CE, and UL standards, the APM-MAX-M23-NL-4B is suitable for various industrial applications including automation, process control, electrical installations, and manufacturing plants. It mounts in a compact 68 mm square panel cutout with a depth of 45 mm, making it adaptable to existing control panels.

The meter’s 25% larger screen enhances legibility and user interaction. Advanced scaling features allow precise configuration tailored to application needs. Robust industrial design supports long-term reliability and performance.

Dynamic backlighting and alarm features facilitate rapid response to system conditions. Connectivity options ensure easy integration into modern automation networks. Ideal for electrical, industrial automation, HVAC, and manufacturing sectors requiring multifunction measurement in a single compact panel meter.

Discover more products in the Multi-Function Panel Meters category on EnvMart for comprehensive industrial instrumentation solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Trumeter APM-MAX-M23-NL-4B measures frequency, power, current, and voltage, making it suitable for various electrical applications.

This model requires a panel cutout of 68 mm x 68 mm with a depth of 45 mm for installation.

It features a 4-digit LCD display complemented by a 60-segment bar graph for enhanced visual representation of measurements.

The operating temperature range for the APM-MAX-M23-NL-4B is from -10°C to 60°C.

This model includes two independent digital outputs (open collector) and one analogue output (4-20mA).

Yes, it complies with RoHS, CE, and UL standards, ensuring adherence to safety and environmental regulations.

It supports MODBUS RTU and TCP/IP communication protocols for seamless integration with control systems.

The full-colour RGB dynamic backlight allows for customizable alert indications, enhancing monitoring efficiency in industrial environments.

The programmable scaling feature allows for adjustments such as min/max limits, offset, gain, and 20-point non-linear scaling tailored to specific application needs.

The digit height of the display is 14.5 mm, contributing to readability.

The Trumeter APM-MAX-M23-NL-4B is manufactured in Malaysia.

It is suitable for various industrial applications, including automation, process control, electrical installations, and manufacturing plants.
