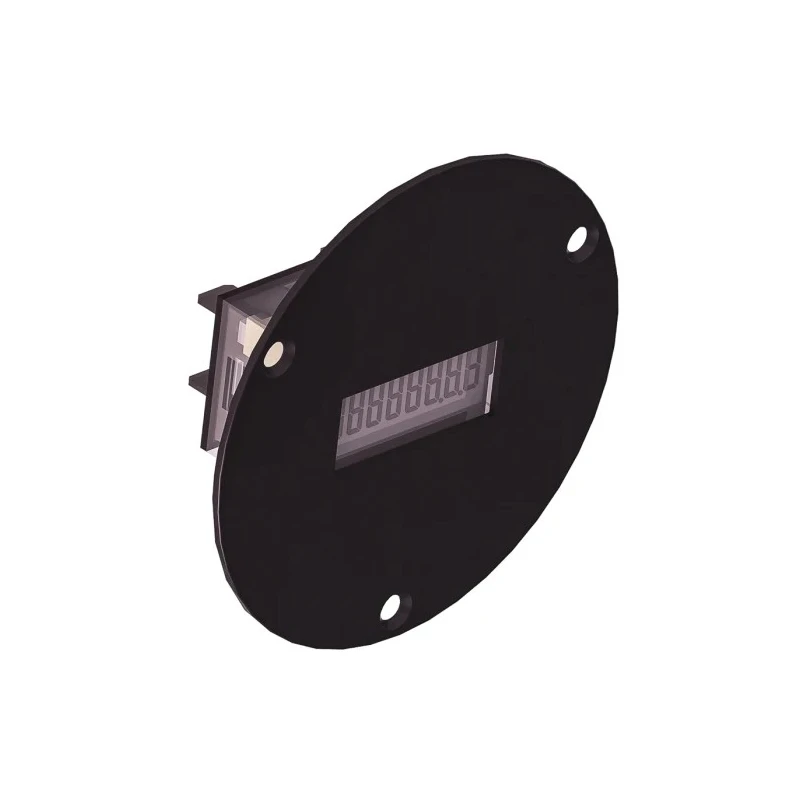

Trumeter 8 Digit LCD Hour Meter 300V AC Panel Mount Bi-Directional Count 3410-1000

Free Delivery in India | Lowest Global Shipping Charges

Trumeter 8 Digit LCD Hour Meter 300V AC Panel Mount Bi-Directional Count 3410-1000

Name: Trumeter 8 Digit LCD Hour Meter 300V AC Panel Mount Bi-Directional Count 3410-1000
Brand: Trumeter
SKU: 411785
Price: 42.54 USD
Availability: InStock



Category Measurement Instruments Brand Trumeter Condition New

Specifications

Country of Origin	Malaysia
Display Type	LCD
Brand	Trumeter
Function	Hour Meter
Connection Type	Spade Terminal
Depth	19mm
Mount Type	Panel Mount
Series	3410
Maximum Operating Temperature	60°C
Number Of Digits	8
Digit height	7mm
Standards/Approvals	CE, cUL Recognized (File # ELIY2.E36690), NEMA 4, NEMA 4x, RoHS Compliant, SAE, UL, WEEE
Cutout Height	24.1mm
Cutout Width	36.8mm
Count Direction	Bi-Directional
Maximum Supply Voltage	300V ac
Reset Method	No Reset
Trumeter 3410 Hour Meter, 8 Digit LCD 300V acBrand	Trumeter

Key Features

Features an 8 digit LCD display with 7mm high characters for easy readability.
Operates from 10-300V DC and 20-300V AC, compatible with diverse voltage inputs.
Designed for panel mount installation with a compact 19mm depth and cutout dimensions of 36.8mm width by 24.1mm height.
Bi-directional counting capability with no reset functionality to ensure continuous operation.
Sealed construction rated to IP66 and suitable for submersion up to 2 meters, offering robust protection against moisture and dirt.
Operates reliably within a maximum temperature of 60°C, confirming suitability for industrial environments.
Meets multiple standards including CE, cUL, NEMA 4/4X, RoHS compliance, UL, SAE, and WEEE.
Long battery life exceeding 15 years and equipped with a polarized lens to enhance visibility outdoors.

Product Description

Trumeter 3410-1000 Hour Meter is a precision industrial counter designed for monitoring operational hours with an 8 digit LCD display featuring 7mm high characters, ensuring clear visibility in panel mount arrangements. This robust hour meter operates efficiently on a wide voltage range from 10 to 300V DC and 20 to 300V AC, suitable for diverse electrical systems within industrial automation and control applications.

Engineered for demanding environments, the device offers bi-directional counting and no reset method, ensuring count integrity over sustained use. The hour meter's sealed design conforms to IP66 standards, making it resistant to moisture and dirt ingress and capable of submersion up to 2 meters, ideal for harsh industrial or outdoor settings.

Mounting is facilitated via panel cutout dimensions of 36.8mm width by 24.1mm height and a compact depth of 19mm, allowing easy integration into existing control panels. It withstands operating temperatures up to 60°C, supporting reliable functionality in challenging thermal conditions.

Certified to meet multiple international standards including CE, cUL Recognized, NEMA 4/4X, UL, RoHS compliance, SAE, and WEEE, the product assures safety and environmental compliance. The polarized lens design enhances outdoor readability while an internal battery offers a life span exceeding 15 years to guarantee long-term operation without replacement.

This hour meter is suitable for extensive industrial, laboratory, and manufacturing process control requirements where precise hour tracking is essential. Due to its versatile voltage input and robust sealing, it is widely applied in automation control panels, machinery monitoring, and maintenance scheduling systems.

8 digit LCD display with 7mm characters ensures easy reading. Wide voltage compatibility: 10-300V DC and 20-300V AC. Panel mount type with dimensions supporting easy installation. Bi-directional count and no reset for continuous operation.

Sealed to IP66, water submersible up to 2 meters. Supports industrial operating temperatures up to 60°C. Conforms to CE, cUL Recognized, NEMA 4/4X, RoHS compliant standards. Polarized lens for outdoor high visibility and long battery life.

Explore more industrial panel meters and automation solutions in the Electronics & Electricals category at EnvMart.

Explore more products in our Measurement Instruments category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model operates within a voltage range of 10-300V DC and 20-300V AC, making it compatible with various electrical systems.

The cutout dimensions for panel mounting are 36.8mm in width and 24.1mm in height, with a compact depth of 19mm.

It features an 8 digit LCD display with 7mm high characters for improved readability.

Yes, it has a polarized lens that enhances visibility outdoors and is sealed to IP66, allowing it to withstand moisture and dirt.

The maximum operating temperature for this hour meter is 60°C, suitable for industrial environments.

No, it features a no reset method, ensuring continuous operation and count integrity over time.

It meets multiple standards including CE, cUL Recognized, NEMA 4/4X, RoHS compliance, UL, SAE, and WEEE.

This unit is rated to IP66, which provides robust protection against moisture and dirt ingress, making it suitable for harsh environments.

The bi-directional counting capability allows the hour meter to count in both directions without any reset, ensuring accurate tracking of operational hours.
