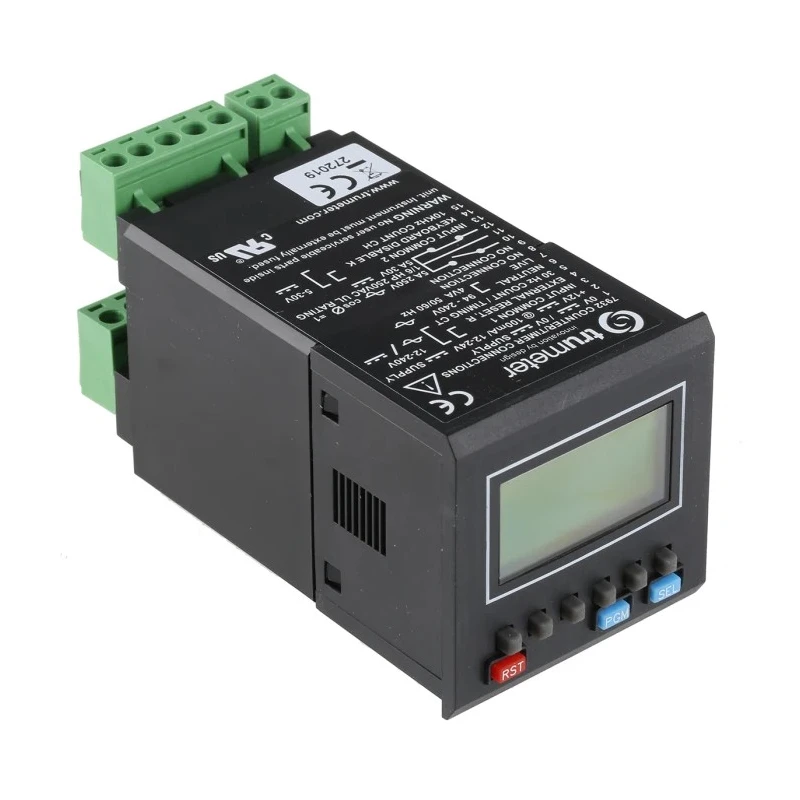

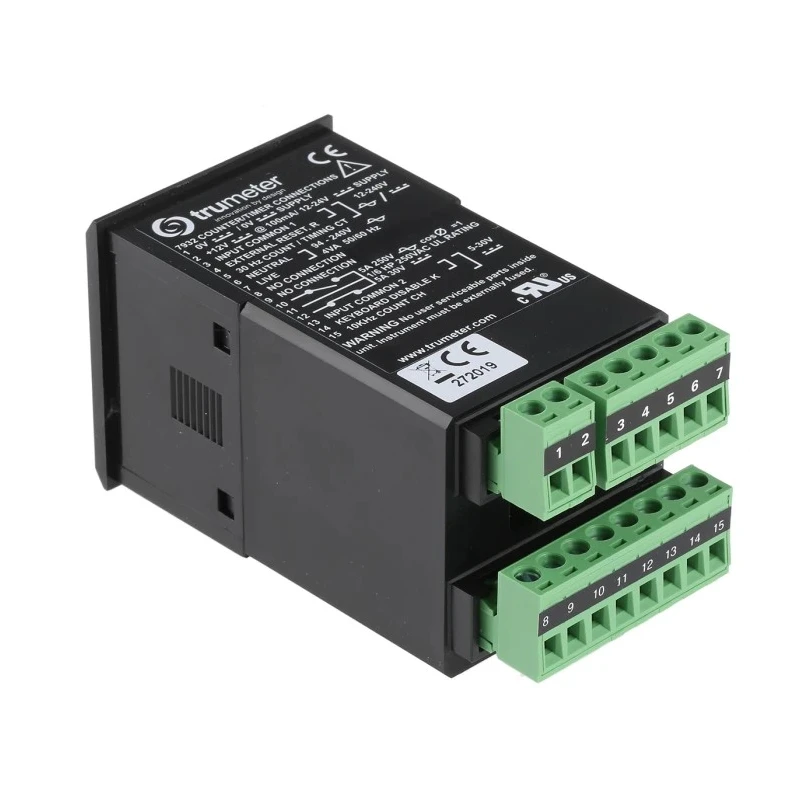

Trumeter 6 Digit Programmable Preset Digital Counter 10VDC-26VDC, 85VAC-265VAC 10kHz 7932

Trumeter 7932 is a 6 Digit Programmable Preset Digital Counter with EEPROM data retention, capable of operating with voltage supply from 10VDC to 26VDC or 85VAC to 265VAC and handling counting frequencies up to 10kHz. This industrial-grade counter features a super twist LCD with large 85mm digit height for excellent readability and a dual-row display where the upper row shows the current count and the lower row displays the preset value. The count inputs are opto-isolated and support both sink (NPN) and source (PNP) sensors, enhancing compatibility and noise immunity.

Programming is simplified via a menu-driven interface, allowing easy configuration of counting parameters and backlight operation modes including on, off, or auto. The device includes a 12V DC output for driving external sensors when powered by AC supply. Output relay contacts are rated for 5A, with programmable pulse duration and ability to set output as latch or pulse, making it versatile for control applications.

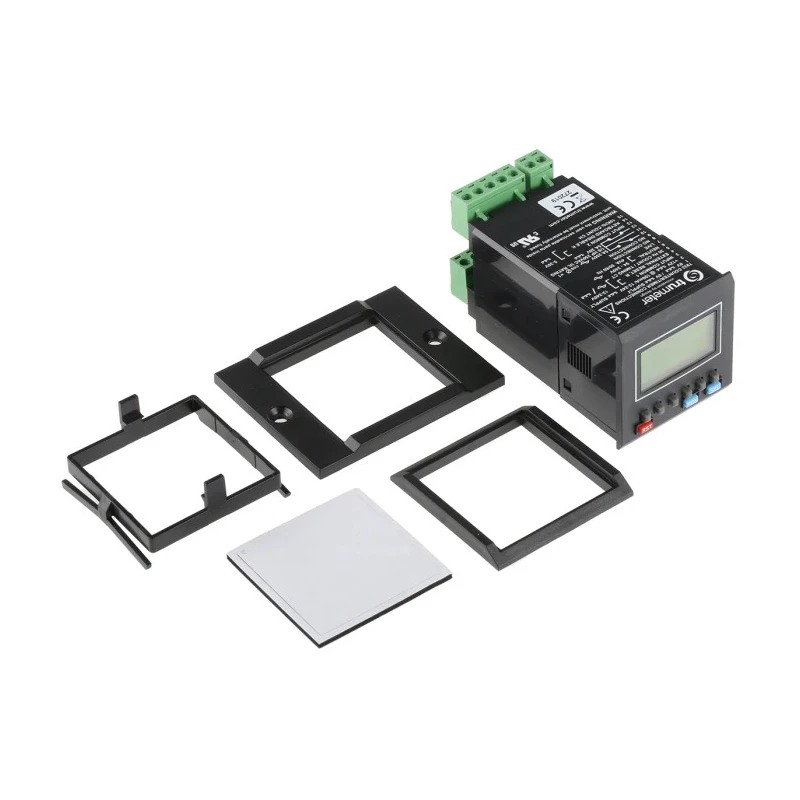

Constructed with a standard DIN housing, it provides ease of installation in industrial control panels. The operating temperature range from -10°C to 60°C makes it reliable for various industrial environments such as manufacturing assembly lines, control, and monitoring systems. This product is CE, UL, and cULus certified and carries an IP65 rating, ensuring protection against dust and water ingress.

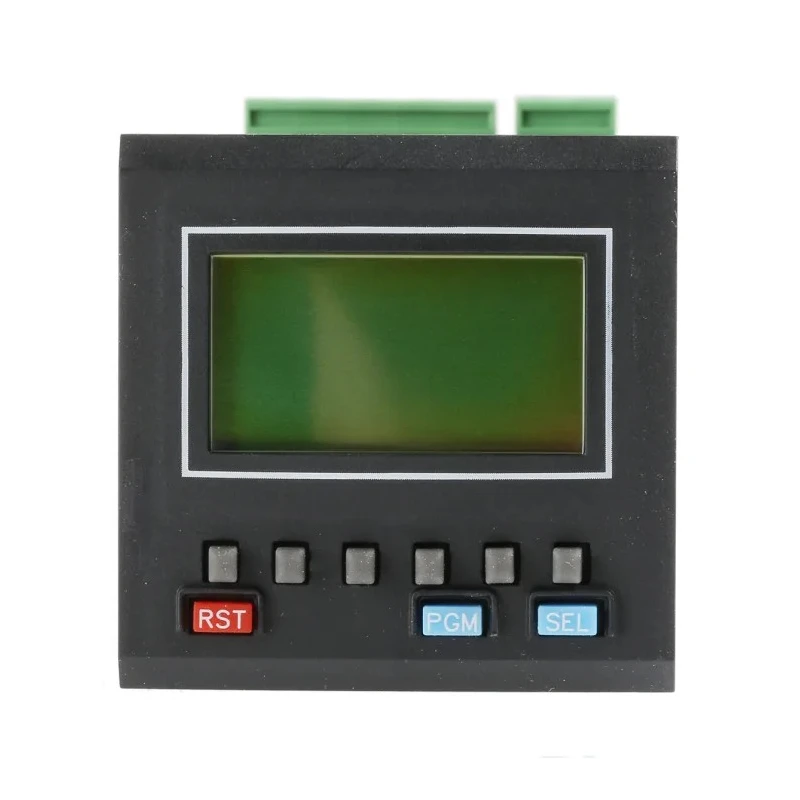

Equipped with a 6-digit super twist LCD with 85mm digit height and LED backlight for clear visibility. Operates at supply voltage ranges from 10VDC to 26VDC or 85VAC to 265VAC. Counts up to a maximum frequency of 10kHz with opto-isolated input count signals compatible with NPN or PNP sensors.

Features a dual row display showing count on the main row and preset value on the lower row. Backlight settings can be programmed to on, off, or automatic modes. Includes a 12V DC output to drive sensors when AC powered, and output relay contacts rated at 5A.

Supports remote reset and programmable pulse duration outputs with latch or pulse modes. Designed with robust standard DIN housing suitable for industrial environments. Operating temperature range between -10°C and 60°C for diverse applications.

Ideal for industrial counting, manufacturing assembly lines, control and monitoring systems. Certified CE, UL, and cULus, and features an IP65 rating for protection against dust and water.
