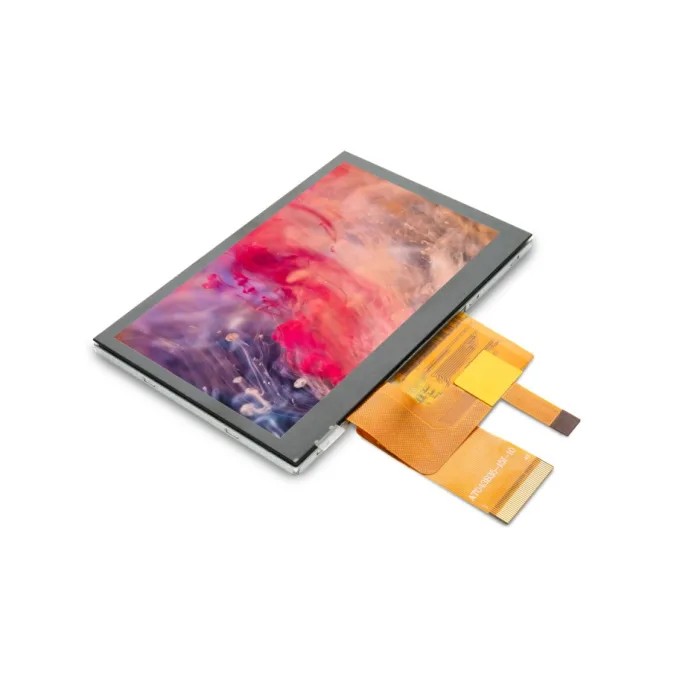

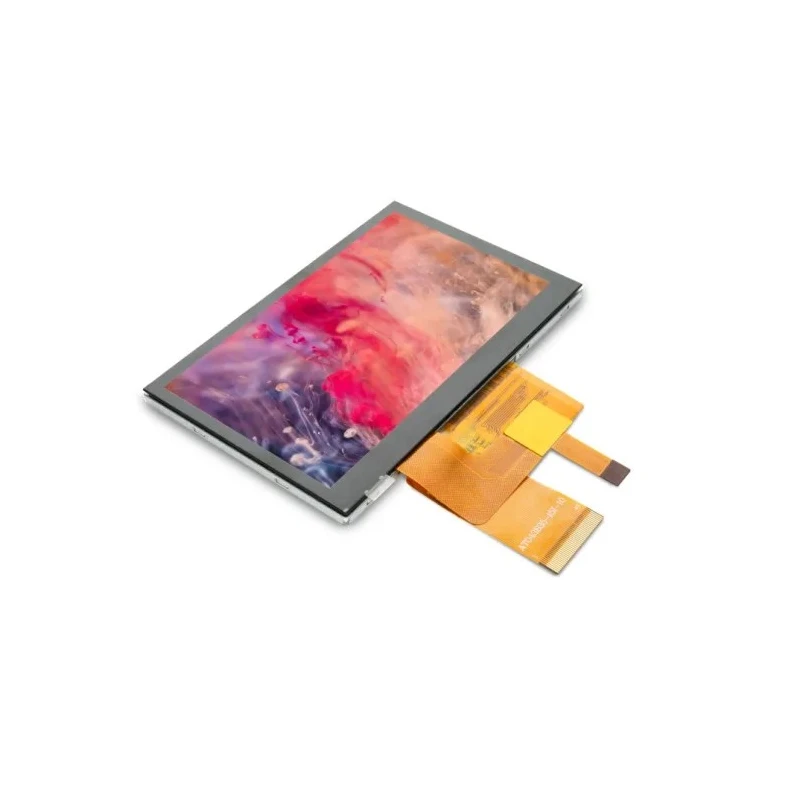

MikroElektronika 4.3 inch 480x270 Pixel TFT LCD Display Touch Screen MIKROE-3904
Specifications
| Country of Origin | India |
|---|---|
| Display Type | TFT |
| Brand | MikroElektronika |
| Current | 25mA |
| Model | MIKROE-3904 |
| Maximum Operating Temperature | 70°C |
| Brightness | 450cd/m² |
| Minimum Operating Temperature | -20°C |
| Interface Type | RGB 24Bit |
| Screen Resolution | 480 x 270 pixel |
| Standards/Approvals | RoHS |
| Touch Screen Type | Capacitive |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | -0.3V |
| Viewing Area Dimensions | 95.04 x 53.86 mm |
| Backlight Type | 5X2 LEDs |
| Diagonal Display Size | 4.3in |
| Contrast Ratio | 300:500 |
| 300 | 500 |
| Contrast Ratio300 | 500 |
| The MikroElektronika TFT display module supports up to 24-bit pixel format (RGB | 888), allowing a true-colour palette of 16,7 million colours, and resolution of 480 x 272 pixels. It features an excellent contrast ratio and uniform brightness. This module is composed of a TFT-LCD panel, driver IC, FPC, a back light unit |
Key Features
- The display supports 24-bit RGB color depth for up to 16.7 million colors.
- The touch screen uses capacitive technology for accurate input detection.
- The backlight consists of 5x2 LEDs ensuring uniform brightness of 450cd/m².
- Operating voltage ranges from -0.3V to 3.6V for flexible power integration.
- It functions reliably in temperatures from -20°C to 70°C.
- The viewing area dimensions are 95.04 by 53.86 mm for a compact form factor.
- The module includes a TFT-LCD panel with driver IC and FPC connectivity.
Product Description
MikroElektronika MIKROE-3904 is a 4.3 inch TFT LCD Display Touch Screen module designed for industrial, electronic component applications requiring high-quality color displays with touch input. Featuring a resolution of 480 x 270 pixels and a 24-bit RGB color format, this module enables display of vivid images with true-color palette of 16.7 million colors.
The capacitive touch screen enhances user interaction with accurate and responsive touch detection. The display module is built with a robust TFT-LCD panel, integrated driver IC, FPC interface, and backlight unit consisting of 10 LEDs arranged in 5x2 configuration, delivering uniform brightness of 450cd/m² for excellent visibility even under varying ambient lighting conditions.
With an operating voltage ranging between -0.3V and 3.6V, it supports flexible power supply options and consumes a nominal current of 25mA. The device operates over a wide temperature range from -20°C to 70°C, suitable for industrial and environmental conditions.
The display features a contrast ratio of 300:500 providing clear image distinction. Its viewing area measures 95.04 mm by 53.86 mm, making it compact for embedded and panel-mount electronic projects.
This TFT LCD display module is ideal for applications such as industrial automation HMI interfaces, laboratory equipment displays, consumer electronics, and embedded system visual output. It complies with RoHS standards, ensuring environmental safety and compliance.
The display supports a true-color 24-bit pixel format and RGB:888 color depth. Equipped with a capacitive touch panel for enhanced user interface experience. Backlight illumination provided by 5x2 LED array for consistent brightness.
Wide operating temperature range from -20°C to 70°C suitable for harsh environments. Power supply voltage ranges from -0.3V to 3.6V with low current consumption. Compact viewing area dimensions ideal for panel mounting and embedded systems.
Supports industrial and commercial applications requiring reliable touchscreen displays. Explore related MikroElektronika display modules and accessories at EnvMart for comprehensive electronic component solutions.
