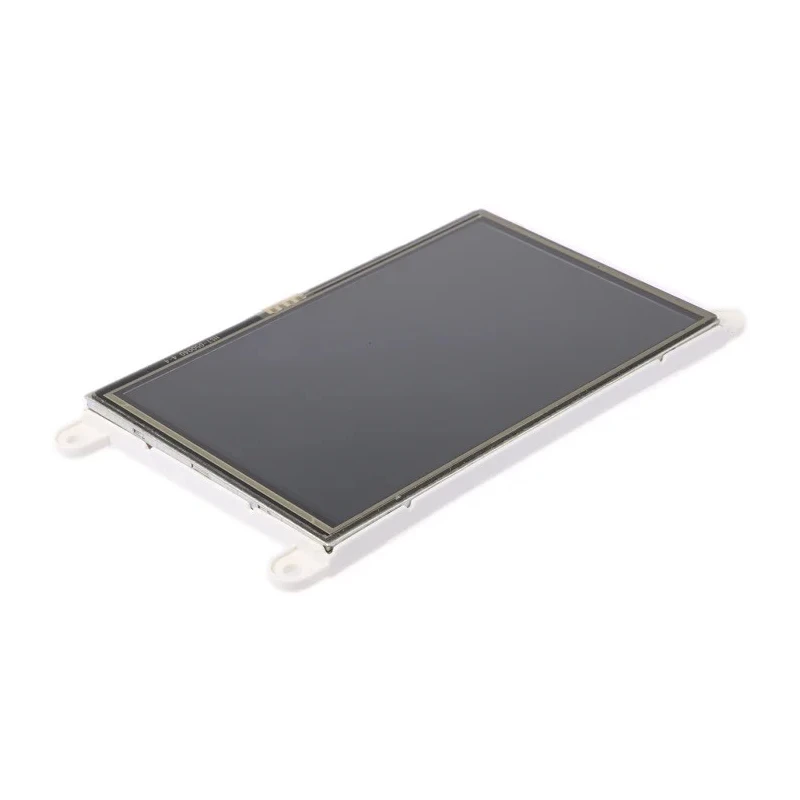

4D Systems 5 in LCD Colour Display Touch Screen 800 x 480 pixel gen4-uLCD-50DT

4D Systems gen4-uLCD-50DT is a high-quality 5 inch LCD Colour Display Touch Screen featuring an 800 x 480 pixel resolution and 4-wire resistive touch capabilities, designed for embedded graphical human-machine interfaces. The LED backlight ensures bright and clear display performance with a brightness of 400 cd/m² and contrast ratio of 500:1, suitable for industrial, electronic, and commercial display applications.

Its compact module dimensions approximately 142.8 mm wide, 64.8 mm deep, and 8.2 mm in height allow it to fit in space-limited environments. The display uses a 30-pin ZIF connection which simplifies wiring and integration into a motherboard or embedded system. Additionally, the micro-SD card slot supports multimedia storage and data logging functionality for advanced applications.

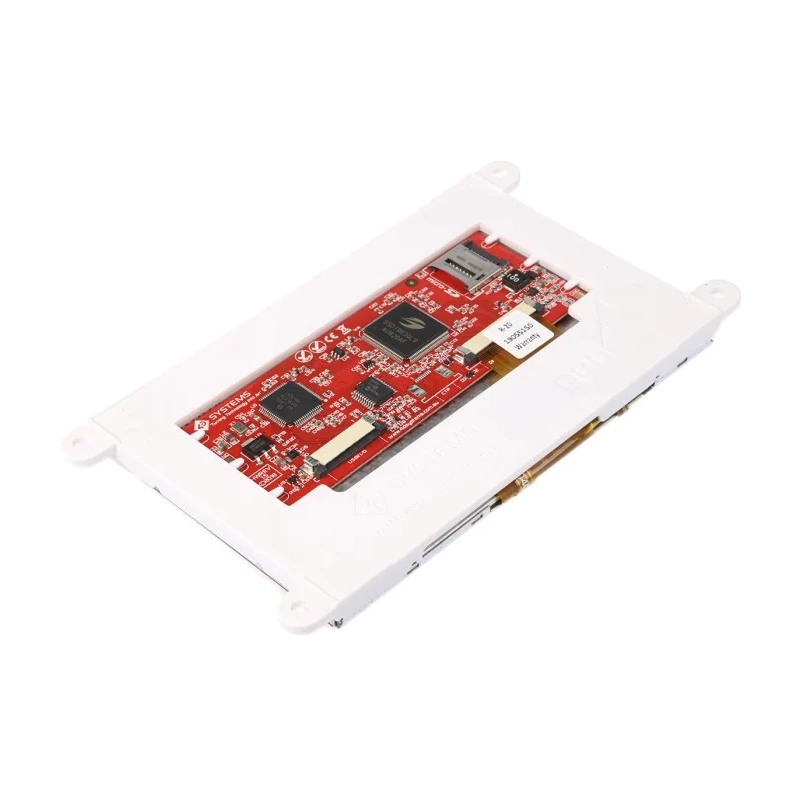

The unit is powered by the 4D Systems Diablo16 embedded graphics processor which supports advanced graphics, text, images, and animations. It includes 6 banks of 32KB Flash memory and 32KB of user RAM, offering ample resources for custom user applications. The processor supports multiple GPIOs for analogue outputs, PWM, pulse output, and quadrature encoder inputs, enabling versatile connectivity and control.

Operating voltage ranges between 4.0 V and 5.5 V with a typical current consumption of 440 mA. The display works efficiently within a temperature range from -10°C to 60°C and conforms to CE standards, ensuring reliable operation in various industrial environments.

This display module is ideal for embedded system developers requiring rich graphical user interfaces, interactive touch input, and multimedia capabilities across industrial automation, electronic instrumentation, and other fields.

The display features a 5 inch diagonal size with RGB 65k true-to-life colours. Equipped with 4-wire resistive touch screen for precise input control. LED backlight provides 400 cd/m² brightness and 500:1 contrast ratio for clear visibility.

Compact design with module dimensions of approximately 142.8 mm width and 64.8 mm depth. Supports operating voltage range from 4 V to 5.5 V with a typical current of 440 mA. Includes a 30-pin ZIF socket for easy integration and a micro-SD card connector for multimedia storage and logging.

Powered by the embedded 4D Systems Diablo16 processor with built-in graphics and animation capabilities. Operates reliably within temperature ranges from -10°C to 60°C. Fully compatible with the 4D Systems Workshop4 IDE offering flexible development environments.
