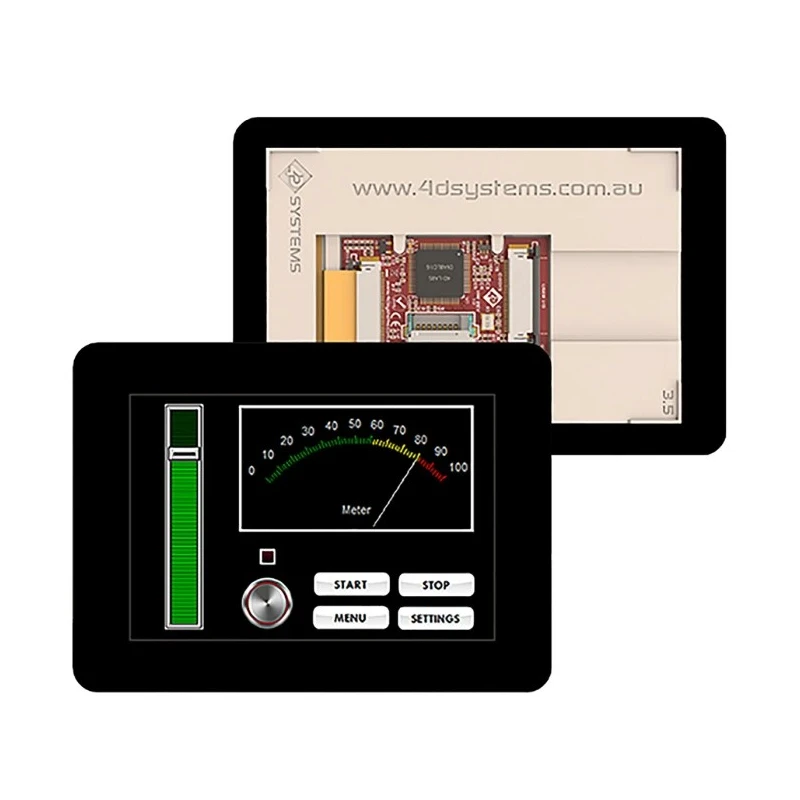

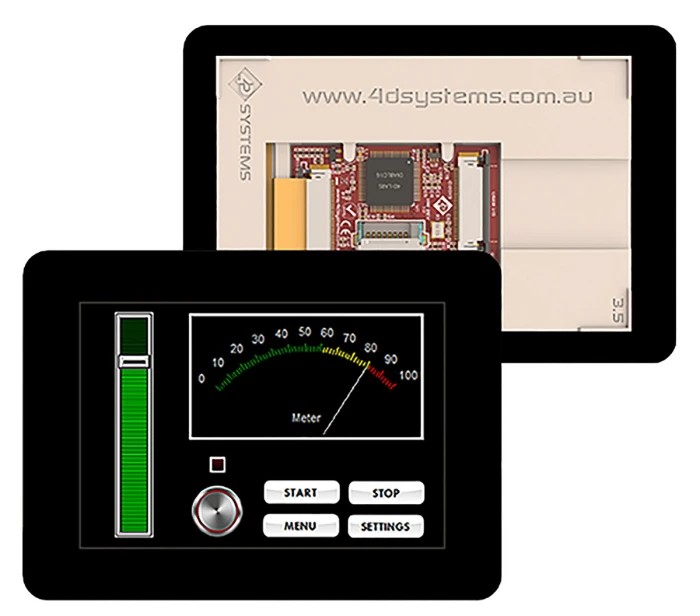

4D Systems gen4 series 3.5in LCD Colour Display Touch Screen 320 x 480 pixels Capacitive 4-wire gen4-uLCD-35DCT-CLB
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD |
| Brand | 4D Systems |
| Current | 175mA |
| Height | 7.8mm |
| Model | gen4-uLCD-35DCT-CLB |
| Depth | 73.44mm |
| Width | 104.2mm |
| Series | gen4 |
| Maximum Operating Temperature | 60°C |
| Brightness | 216cd/m² |
| Minimum Operating Temperature | -10°C |
| Interface Type | Serial |
| Screen Resolution | 320 x 480 pixel |
| Standards/Approvals | CE |
| Touch Screen Type | Capacitive |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4V |
| Viewing Area Dimensions | 49 x 73 mm |
| Backlight Type | LED |
| Diagonal Display Size | 88.9mm |
| Contrast Ratio | 250:1 |
| Contrast Ratio250 | 1 |
| 250 | 1 |
Key Features
- The display features a serial interface compatible with 4-wire capacitive touch inputs.
- It operates between 4 V and 5.5 V supply voltage with a current rating of 175 mA.
- The viewing area dimensions are 49 x 73 mm with an LED backlight and a brightness of 216 cd/m².
- The module measures 104.2 mm width, 7.8 mm height, and 73.44 mm depth for compact integration.
- Equipped with a 30-pin ZIF connector and micro-SD card slot for multimedia and data logging.
- Operational temperature range is -10°C to 60°C suitable for various industrial environments.
- Powered by an embedded Diablo16 processor compatible with 4D Systems Workshop4 IDE.
- Supports multiple GPIO channels, PWM audio pin, and high color fidelity with RGB 65k true-to-life colors.
Product Description
4D Systems gen4-uLCD-35DCT-CLB is a 3.5-inch LCD colour display touch screen module designed for compact, easy integration into electronic and industrial applications. It displays 320 x 480 pixels with a bright 216 cd/m² LED backlight and offers a capacitive 4-wire touch interface suitable for human-machine interfaces.
The design of the gen4 series provides a slim profile with dimensions of 104.2 mm width, 7.8 mm height, and 73.44 mm depth. It uses a 30-pin zero insertion force (ZIF) connector for simplified integration and includes a micro-SD card slot for expanded multimedia storage and data logging capabilities.
This display module runs from 4 V to 5.5 V with a current draw of 175 mA and can operate in temperature ranges from -10°C to 60°C, making it reliable for various industrial, laboratory, and embedded system applications.
Powered by the embedded Diablo16 processor, the module supports multiple general-purpose input/output (GPIO) channels including configurable analogue outputs and pulse outputs, PWM audio pin, SPI and I2C communication channels, and advanced features like quadrature encoders. It also supports 65k RGB true-to-life colour display with high contrast ratio of 250:1 and full support for Windows fonts, suitable for rich graphical user interfaces.
Typical usage encompasses industrial control panels, embedded system interfaces, manufacturing equipment, and commercial electronic devices requiring a compact and feature-rich display. The module is CE certified and REACH compliant, ensuring component safety and environmental standards.

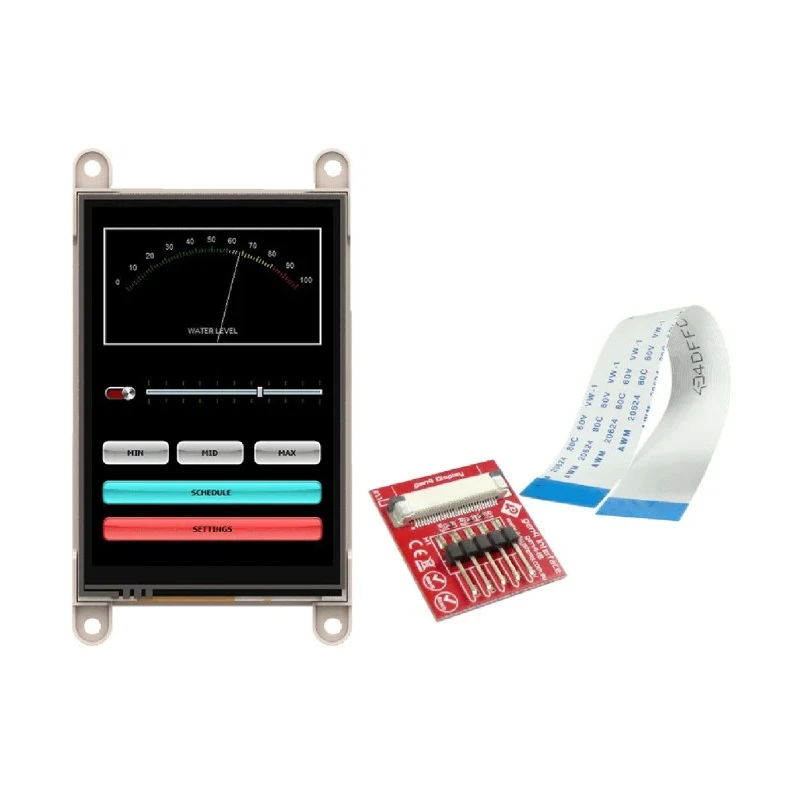

Kit contents include one 3.5-inch gen4-uLCD-35DCT-CLB display module, one gen4-IB interface board, and a 150 mm flat flexible cable (FFC) for connectivity. The display offers 16 GPIO pins, including analogue outputs and encoder inputs.
Three I2C and three SPI channels enable flexible device interaction. 32 KB of user RAM and 6 banks of 32 KB flash memory support complex user applications. Compact form factor allows flush mounting with minimal profile. Integrated PWM audio pin supports sound output for embedded systems.
Explore EnvMart’s Electronics Components category for more advanced LCD display modules and industrial-grade electronic components for your next project.
Explore more products in our LCD Colour Displays category.
