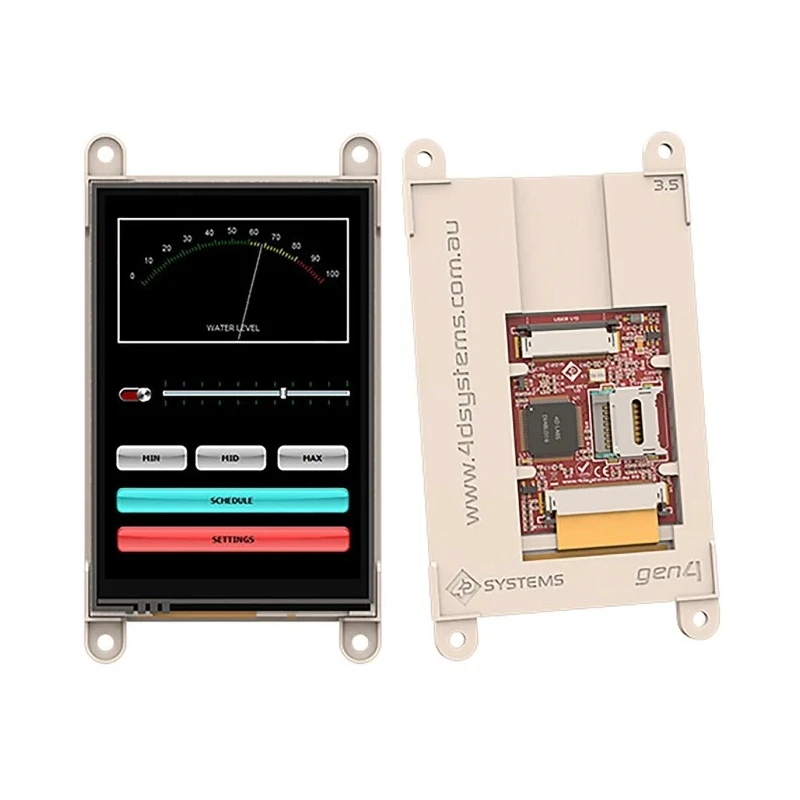

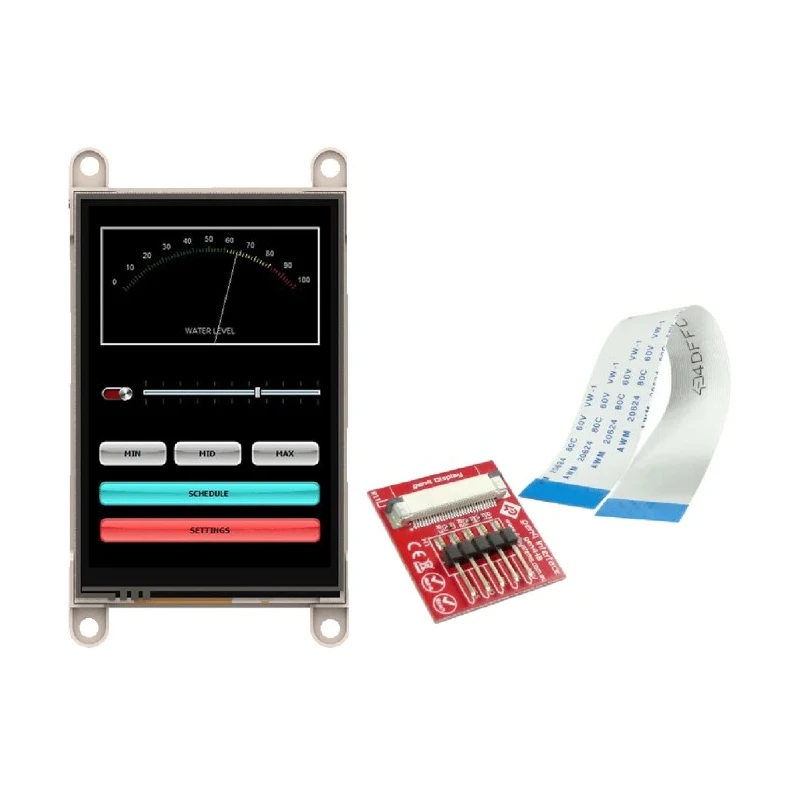

4D Systems LCD Colour Display Touch Screen 88.9 mm 320 x 480 Pixel Serial Interface Resistive Touch LED gen4-uLCD-35DT

4D Systems gen4-uLCD-35DT LCD Colour Display Touch Screen is a premium graphical display module with an 88.9 mm (3.5 inch) diagonal size and 320 x 480 pixel resolution. It features a serial interface and a 4-wire resistive touch panel, making it ideal for embedded applications requiring human-machine interaction. The built-in LED backlight delivers a brightness of 182 cd/m² and a high contrast ratio of 250:1 for excellent image clarity.

This display module is powered by the 4D Systems Diablo16 embedded processor, which supports advanced graphics, text, image, and animation capabilities through the compatible Workshop4 IDE software. The module includes a micro-SD card connector allowing multimedia storage and data logging, enhancing its utility in industrial, laboratory, and commercial applications.

The gen4-uLCD-35DT module is designed for compactness and ease of integration, featuring a 30-pin ZIF socket that facilitates quick connection to application boards or motherboards without wiring complexity. The module's slim profile and overall dimensions of 101.1 mm wide, 7 mm high, and 73.44 mm deep allow fitting into space-constrained environments.

Operating over a voltage range from 4 V to 5.5 V and a wide temperature range from -10°C to 60°C, this display is suitable for various industrial and embedded system requirements. It is CE certified and REACH compliant, ensuring it meets essential safety and environmental standards.

Typical use cases include industrial monitoring systems, laboratory instrumentation interfaces, manufacturing process control panels, and HVAC system displays, where clear visual output and touch interaction are needed. The presence of multiple GPIO pins and I2C/SPI channels facilitates flexible interfacing options.

The 3.5 inch LCD display with 320 x 480 pixels supports vibrant true-colour output. Four-wire resistive touch screen enables accurate user input. The Diablo16 processor provides robust graphics handling capabilities. Micro-SD slot supports multimedia and data logging functions.

Compact design with a 30-pin FPC connector eases installation. Operates from 4 V to 5.5 V for versatile power options. Wide temperature range of -10°C to 60°C for harsh environments. CE certification and REACH compliance ensure quality and safety.
