4D Systems LCD Colour Display Touch Screen Module 81.28 mm 240 x 320 pixel gen4-uLCD-32DCT-CLB

Free Delivery in India | Lowest Global Shipping Charges

4D Systems LCD Colour Display Touch Screen Module 81.28 mm 240 x 320 pixel gen4-uLCD-32DCT-CLB

Name: 4D Systems LCD Colour Display Touch Screen Module 81.28 mm 240 x 320 pixel gen4-uLCD-32DCT-CLB
Brand: 4D Systems
SKU: 142951
Price: 116.23 USD
Availability: InStock



Category LCD Colour Displays Brand 4D Systems Condition New

Specifications

Country of Origin	India
Display Type	LCD
Brand	4D Systems
Current	170mA
Height	8.3mm
Model	gen4
Depth	64.8mm
Width	98.8mm
Series	gen4
Maximum Operating Temperature	60°C
Brightness	190cd/m²
Minimum Operating Temperature	-10°C
Interface Type	Serial
Screen Resolution	240 x 320 pixel
Standards/Approvals	CE
Touch Screen Type	Capacitive
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4V
Viewing Area Dimensions	49 x 65 mm
Backlight Type	LED
500	1
Diagonal Display Size	81.28mm
Contrast Ratio	500:1
Contrast Ratio500	1

Key Features

Supports serial interface communication for easy integration.
Operates at supply voltages between 4 V and 5.5 V with a current consumption of 170 mA.
Designed for operation within -10°C to 60°C environmental temperature range.
Compact dimensions with a width of 98.8 mm and height and depth of 8.3 mm and 64.8 mm respectively.
Includes a 30-pin ZIF connection and micro-SD card slot for multimedia storage and data logging.
Features embedded Diablo16 processor with 6 banks of 32KB Flash memory and 32KB user RAM.
Compliant with CE, RoHS, and REACH standards.
Suitable for industrial, electronic, and embedded systems applications requiring advanced human-machine interfaces.

Product Description

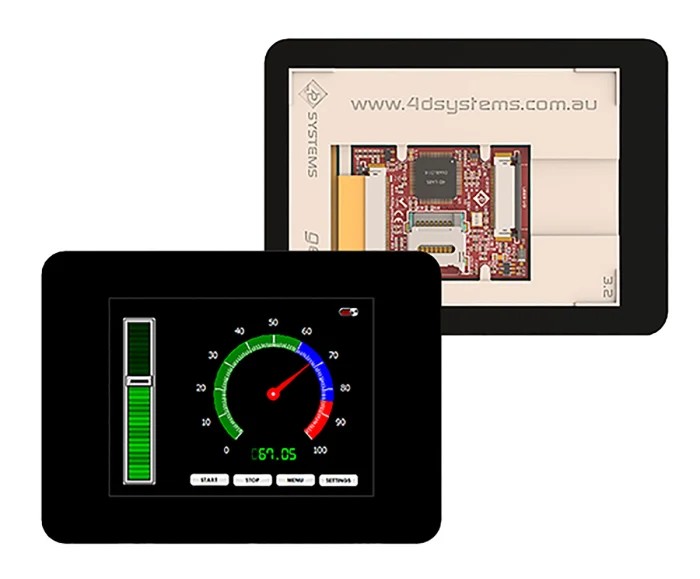

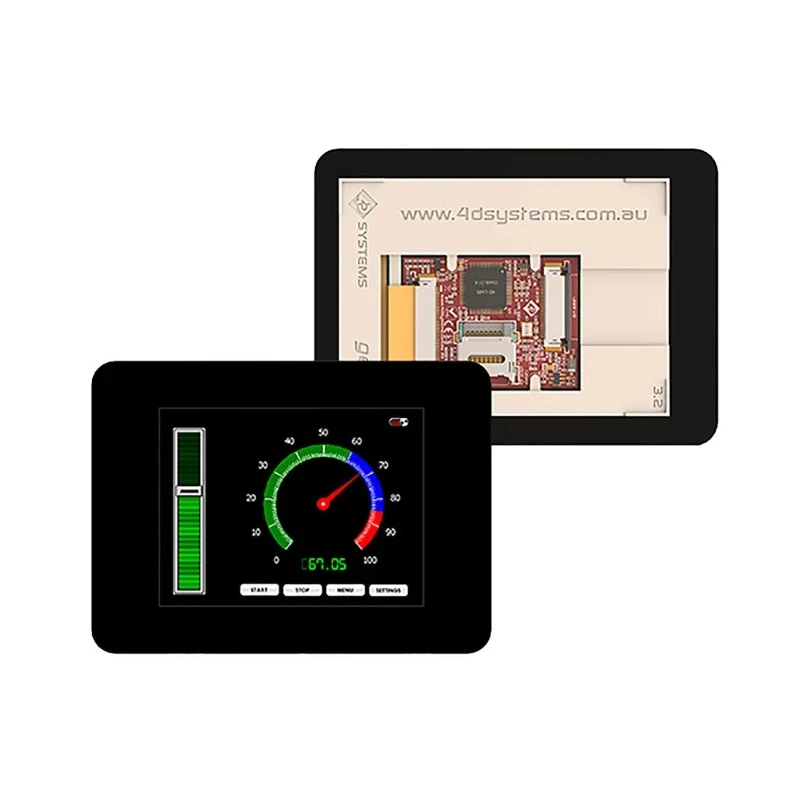

4D Systems gen4-uLCD-32DCT-CLB LCD Colour Display Module is a compact TFT LCD display solution measuring 81.28 mm diagonally and offering a vivid 240 x 320 pixel resolution with RGB 65k true-to-life colours and LED backlighting. The capacitive touch screen supports intuitive human-machine interaction, ideal for interactive embedded device applications.

This module includes a cover lens bezel and features a 30-pin ZIF socket for simple connection, allowing the connected board to fit flush on the back. The embedded Diablo16 processor provides built-in graphics, text, image, and animation capabilities with multiple GPIO, I2C, SPI channels, and PWM outputs.

It supports low voltage operation from 4.0 V to 5.5 V with a typical current of 170 mA and can operate in industrial temperature ranges from -10°C to 60°C. The module dimensions are designed to maintain a slim profile for compact device designs.

A micro-SD card connector adds multimedia storage and data logging capabilities. The gen4 series is fully compatible with 4D Workshop4 IDE, enabling developers to utilize multiple programming environments.

3.2 inch 240 x 320 pixel colour LCD with capacitive touch screen. Embedded Diablo16 controller with built-in graphics and multimedia support. 30-pin FPC connection for signals, power, communications, and programming. High contrast 500:1 LED backlight for clear visibility.

CE, RoHS, and REACH compliant ensuring industrial quality. Operational temperatures from -10°C to 60°C. Integrated GPIO pins supporting PWM, pulse output, and encoder inputs. Compact mounting friendly design with cover lens bezel included.

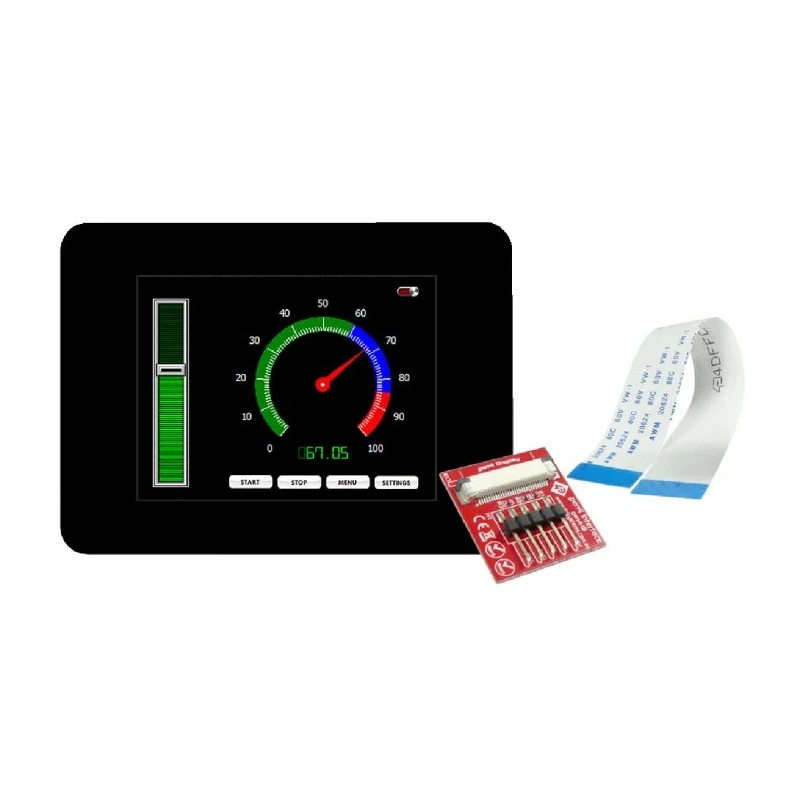

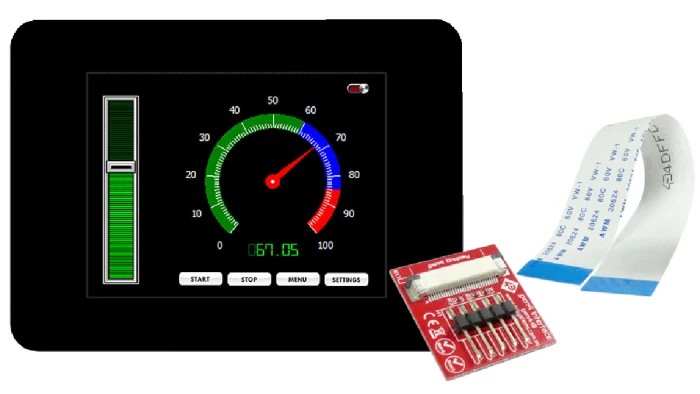

Includes gen4-IB interface board and 150 mm FFC cable.

This LCD Colour Display Module suits industrial, electronic components, embedded systems, laboratory and manufacturing automation environments requiring reliable display and touch interface components. Browse EnvMart’s Electronics Components category for similar display modules and accessories.
