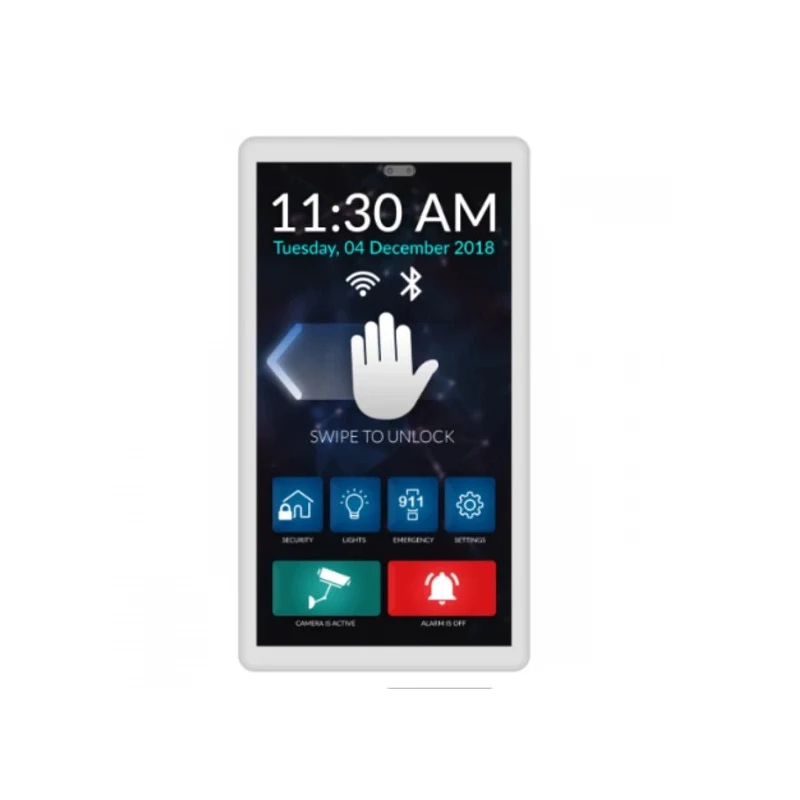

4D Systems 4.95 in TFT LCD Display Touch Screen, 480 x 854 Pixel, Capacitive Touch, WiFi, RS485, Bluetooth 4Discovery-50W
Specifications
| Country of Origin | Australia |
|---|---|
| Display Type | TFT, LCD |
| Display | Screen |
| Brand | 4D Systems |
| Current | 125mA |
| Height | 139.4mm |
| Model | 4Discovery-50W |
| Depth | 24.8mm |
| Width | 76.2mm |
| Series | 4Discovery |
| Maximum Operating Temperature | 60°C |
| Brightness | 500cd/m² |
| Minimum Operating Temperature | -10°C |
| Interface Type | WiFi, RS485, Bluetooth |
| Screen Resolution | 480 x 854 pixel |
| Standards/Approvals | RoHS, CE |
| Touch Screen Type | Capacitive |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Viewing Area Dimensions | 62.56 x 110.53 mm |
| Backlight Type | LED |
| Diagonal Display Size | 4.95in |
Key Features
- The display supports WiFi, RS485, and Bluetooth interfaces for versatile connectivity.
- It has a bright LED backlight with a brightness of 500 cd/m² for clear visibility.
- The viewing area dimensions are 62.56 x 110.53 mm, providing an IPS panel with wide viewing angles.
- The display operates at a minimum voltage of 3.3 V and a maximum of 3.6 V with a current consumption of 125 mA.
- It is designed for wall or panel mounting, suitable for home and building automation applications.
- Operating temperature range is from -10°C to 60°C, ensuring reliable performance in varied environments.
- This model includes 6 banks of 32750 bytes of flash memory and 32Kb SRAM for user applications and data logging.
- An onboard micro-SD memory card connector is available for multimedia storage and logging purposes.
Product Description
4D Systems 4Discovery-50W TFT LCD Display Touch Screen, model 4Discovery-50W, offers a 4.95 inch diagonal TFT LCD with 480 x 854 pixel resolution and capacitive touch functionality. This intelligent display module is designed specifically for home and building automation systems, offering versatile wireless communication with WiFi, RS485, and Bluetooth interfaces.
The IPS panel provides true-to-life RGB 65K colors with wide viewing angles and a 500 cd/m² brightness LED backlight. The capacitive touch screen supports responsive and precise interaction, making it ideal for advanced control panels and embedded display applications.
The display unit operates with a minimum supply voltage of 3.3 V and maximum of 3.6 V at 125 mA current. The robust operating temperature range from -10°C to 60°C allows stable performance across different environments.
Designed for wall or panel mounting, it can be mounted on any drillable flat surface, enabling easy installation in various orientations. Its physical dimensions are 139.4 mm height, 76.2 mm width, and 24.8 mm depth.
Memory features include 6 banks of 32750 bytes flash memory to hold user application code and data, plus 32Kb SRAM dedicated for user use. Additionally, it integrates an onboard micro-SD memory card slot for multimedia storage and data logging tasks.
The device is compliant with RoHS and CE standards, ensuring safety and environmental friendliness. Its versatile interface and mounting options make it well-suited for use in industrial panels, home automation, building management systems, and embedded electronics projects.
Programming is done through RS485, supported by dedicated programming tools designed for the 4Discovery series. The high-resolution display combined with wireless features supports sophisticated graphical user interfaces and remote control.
This 4D Systems 4Discovery-50W model represents a reliable and flexible display solution for industrial and commercial applications requiring high-quality color, touch capability, and integrated communication modules. Explore more in the LCD Colour Displays category at EnvMart for related products and alternatives.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display has a resolution of 480 x 854 pixels.
It has a height of 139.4 mm, a width of 76.2 mm, and a depth of 24.8 mm.
The display features a brightness of 500 cd/m², ensuring clear visibility.
It uses a capacitive touch screen for responsive interaction.
The operating temperature range is from -10°C to 60°C.
It supports WiFi, RS485, and Bluetooth interfaces for versatile connectivity.
The display operates with a minimum supply voltage of 3.3 V and a maximum of 3.6 V.
It has a current consumption of 125 mA.
The viewing area dimensions are 62.56 x 110.53 mm.
It includes 6 banks of 32750 bytes of flash memory and 32Kb SRAM for user applications and data logging.
Yes, it is compliant with RoHS and CE standards, ensuring safety and environmental friendliness.
Yes, it is designed for wall or panel mounting, suitable for various orientations.
