4D Systems 2.4 Inch Resistive Touch Screen LCD Display Module for Raspberry Pi SK-gen4-24DT-PI

4D Systems SK-gen4-24DT-PI is a compact 2.4 inch resistive touch screen LCD display module specially designed for Raspberry Pi platforms. This module integrates a Diablo16 graphics controller and offers a crisp 240 x 320 pixel resolution with a brightness of about 300 nits, making it suitable for clear visualization in various industrial, educational, and development environments.

The display features a 30 way FPC connector and resistive touch technology enabling intuitive user interaction. With module dimensions of 78.4 x 44.8 x 7.4 mm and a viewing area of 36.7 x 49 mm, it fits well into embedded applications requiring compact and effective interfaces.

It operates reliably within a wide ambient temperature range from -15°C to +65°C, and can be stored safely between -30°C to +70°C, ensuring robustness in varying conditions.

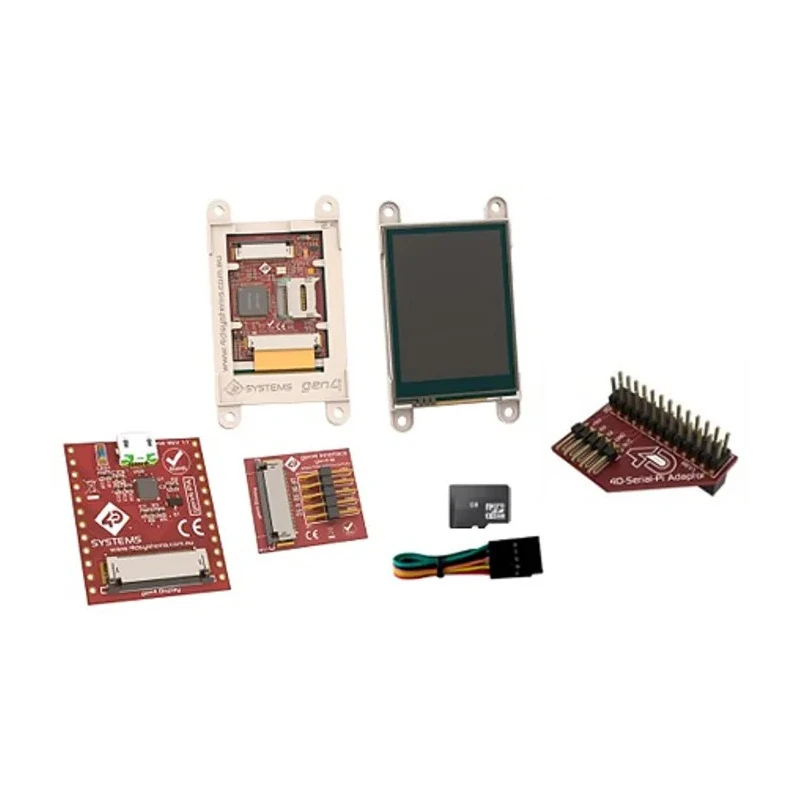

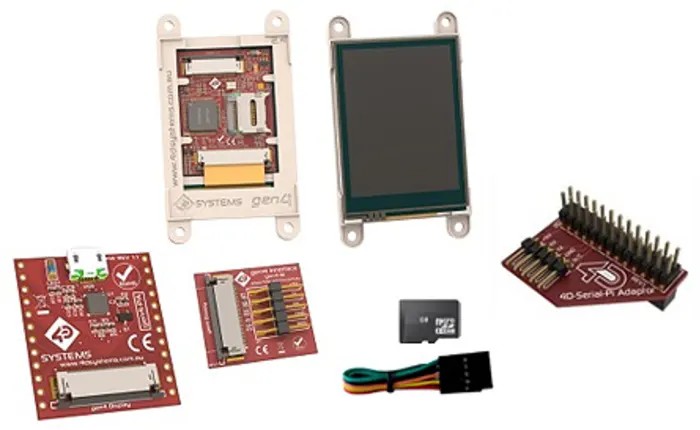

The product kit includes the Gen4 integrated display module (gen4-uLCD-24DT) with resistive touch, a 4D Serial Pi adapter, Gen4 interface module (gen4-IB), Gen4 programming adapter (gen4-PA), a 4 GB micro SD card loaded for image, video, and sound display, and a 150 mm 5-way female-to-female FFC cable with male-to-male adapter.

This module supports multiple programming environments including Designer, ViSi, ViSi-Genie, and Serial, providing versatility for developers with micro SD card storage and programming cable options to download compiled code and firmware updates.

4D Systems SK-gen4-24DT-PI is ideal for applications in industrial automation, embedded system development, STEM education, and prototyping requiring a compact, configurable resistive touch display interface compatible with Raspberry Pi products.

The 2.4 inch display offers 240 x 320 resolution and approximately 300 nits brightness. Includes resistive touch technology with 30 way FPC connector for interfacing. Module dimensions are 78.4 x 44.8 x 7.4 mm with a visible viewing area of 36.7 x 49 mm.

Supports operating ambient temperatures from -15°C to +65°C and storage from -30°C to +70°C. Package includes integrated Display Module, serial Pi adapter, interface module, programming adapter, 4 GB micro SD card and a 150 mm FFC cable.

Compatible with 4D Workshop4 programming environments and various Raspberry Pi adapters for flexible development. Explore a wide range of electronics components and development tools suited for Raspberry Pi applications at EnvMart for optimal integration and project success.
