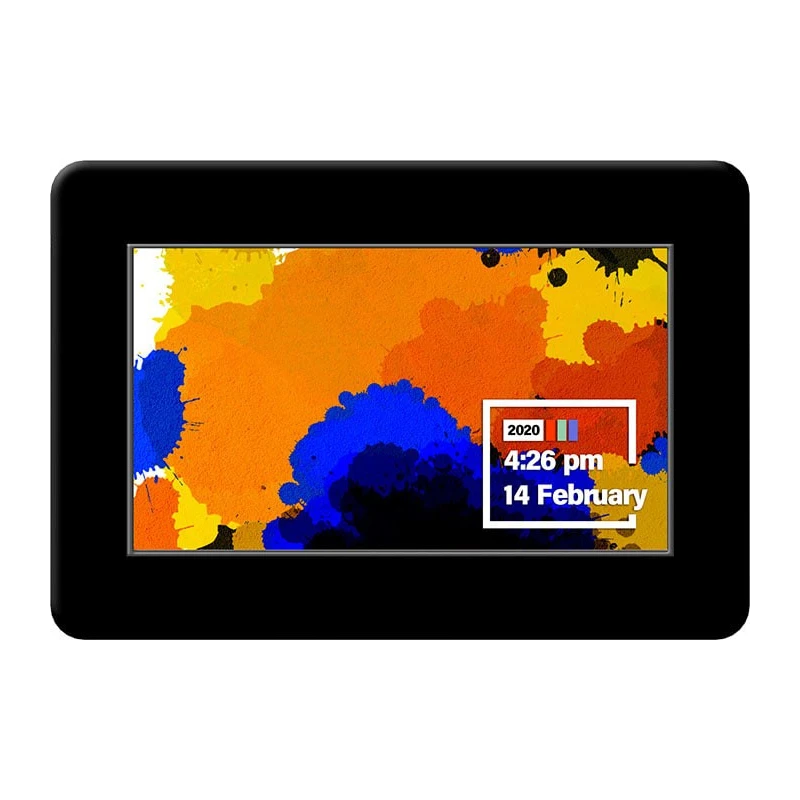

4D Systems LCD Colour Display Touch Screen gen4-FT813-43CTP-CLB, 4.3 inch, 480 x 272 pixel, SPI, 5V

The 4D Systems gen4-FT813-43CTP-CLB is an advanced LCD colour display module featuring a 4.3-inch TFT touch screen with a 480 x 272 pixel resolution. This module is designed for embedded interfaces, industrial HMI systems, instrumentation panels, and commercial display solutions requiring a high-quality touchscreen and robust performance.

This display utilises an SPI interface, ensuring it can be integrated into a wide range of microcontroller- and processor-based systems. The capacitive touch functionality enables responsive user interaction, making the display suitable for process controls, kiosks, laboratory instruments, and automation panels.

Powered by an integrated FTDI FT81x video engine, the gen4-FT813-43CTP-CLB supports complex graphics rendering, smooth animations, and advanced user interfaces. The backlit TFT LCD construction delivers bright and vivid colour reproduction, while the wide 500:1 contrast ratio ensures image clarity even in demanding lighting conditions.

With a supply voltage range of 4.5 to 6V and a current consumption of 835 mA, the module is optimised for embedded and handheld system use. Operating temperatures from -20°C to 70°C enable deployment in industrial, laboratory, and outdoor applications. The actively usable viewing area is 95 x 54 mm, and the display fits within a compact 123 mm x 84.5 mm hardware footprint, with 8.4 mm profile depth allowing easy installation within control panels and electronic enclosures.

The display also incorporates features such as a programmable interrupt controller, JPEG/motion-JPEG decode capability, and power mode control for flexible multimedia and power management options. RoHS and CE compliance provide assurance of safety and environmental standards for international markets and regulated industries.

This module is particularly beneficial for product designers needing a reliable touch interface for industrial automation, scientific instruments, HVAC controllers, vending systems, access controls, and user-programmable devices. Its robust construction, ease of integration, and high visual performance make it a preferred choice for OEMs and system integrators across sectors.

High-resolution 4.3-inch TFT LCD with 480 x 272 pixels for sharp graphics and GUI interfaces. Capacitive touch screen for smooth, intuitive user interaction in embedded systems and equipment panels. SPI interface provides streamlined connection to microcontrollers and industrial processors.

Wide input voltage support (4.5 V - 6 V DC) and low operating current increase energy efficiency in portable and panel-mounted devices. Robust -20 to 70°C operating temperature range, suited for challenging environments like industrial, laboratory, and commercial equipment.

Embedded FTDI FT81x graphics engine delivers advanced multimedia and real-time graphical control capabilities. Programmable features, plus JPEG/MJPEG decoding for use in multimedia-rich applications and human-machine interfaces.

RoHS and CE certified for industrial and laboratory compliance. Browse more high-performance Display Modules and touch screens from 4D Systems and related display product categories on EnvMart.
