4D Systems 2.4 Inch Resistive Touch Screen LCD Display Module Raspberry Pi Screen Gen4
Specifications
| Country of Origin | China |
|---|---|
| Brand | 4D Systems |
| Storage Temperature | -30°C to +70°C |
| Display Size | 2.4 |
| Model | Gen4 |
| Connector | 30 way FPC |
| Display Resolution | 240 x 320 |
| Controller | Picaso |
| Display Technology | Resistive Touch Screen |
| Operating Ambient Temperature | -15°C to +65°C |
| Standards/Approvals | RoHS |
| Kit Name | Gen4 Picaso |
| Diagonal Display Size | 60.96mm |
| Module Dimensions (mm) | 78.4 x 44.8 x 7.4 mm |
| Gen4 Integrated Display Module | gen4-uLCD-24PT Display with resistive touch |
| Gen4 Interface Module | gen4-IB |
| Display Brightness | ∼304 nits |
| Display Viewing Area (mm) | 36.7 x 49 mm |
| Gen4 Programming adapter | gen4-PA |
| 150 mm FFC Cable | 5-way female-to-female ribbon cable with male-to-male adapter |
| Backlight LEDs | 1 x 4 |
| Touch | Resistive |
Key Features
- The display features a 240 x 320 resolution enabling detailed visual output.
- It utilizes a Picaso controller for versatile display control and enhanced functionality.
- The module includes resistive touch technology for precise user input.
- Operating temperature range spans from -15°C to +65°C, suitable for diverse environments.
- Storage temperature capability ranges from -30°C to +70°C for robust handling.
- The kit includes multiple accessories like micro SD card, programming adapters, cables, and interface modules for comprehensive use.
- Display brightness measures approximately 304 nits ensuring good visibility under various lighting conditions.
- The compact module dimensions are 78.4 x 44.8 x 7.4 mm enabling ease of integration into projects.
Product Description
4D Systems Gen4 SK-gen4-24PT-PI is a 2.4 inch resistive touch screen LCD display module designed for Raspberry Pi and similar embedded system applications. Featuring a 240 x 320 pixel resolution and Picaso controller, the display delivers sharp visuals and responsive touch input suitable for development, educational, and embedded display projects.

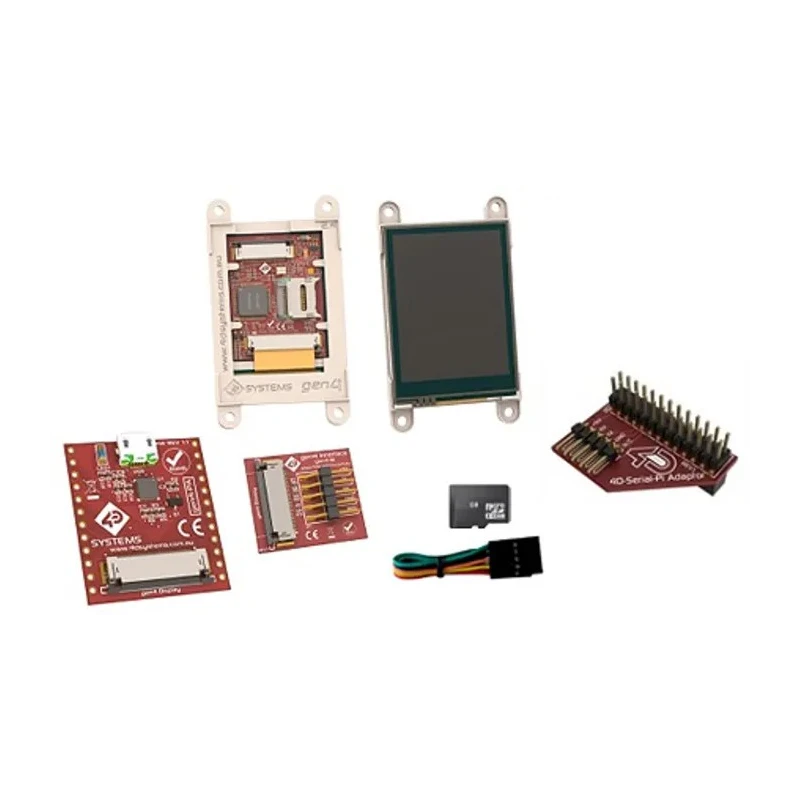

The kit provides a fully integrated solution including the Gen4 integrated Display Module with resistive touch, Gen4 interface module (gen4-IB), programming adapter (gen4-PA), a 4 GB micro SD card preloaded with software, and all necessary cables such as a 150 mm 5-way female-to-female FFC ribbon cable with male-to-male adapter.
This product operates reliably in ambient temperatures from -15°C to +65°C and can be stored safely within -30°C to +70°C, making it adaptable for a variety of industrial, laboratory, educational, and commercial use cases. The display's brightness of around 304 nits offers clear readability under diverse lighting environments.
The module's compact form factor (78.4 mm length x 44.8 mm width x 7.4 mm height) allows straightforward integration within embedded designs requiring a visual user interface. The 30-way FPC connector facilitates easy connectivity.
Powered and controlled via the Picaso controller, the display supports 4D Workshop4 programming environments including Designer, ViSi, and Serial modes, enabling flexible programming and firmware management through supplied accessories such as the programming cable and micro SD card.
The display achieves a 2.4 inch diagonal size with a 240 x 320 pixel resolution. Resistive touch screen technology offers accurate and reliable touch input. The kit includes comprehensive accessories such as interface and programming modules along with cables and micro SD card.
Operating ambient temperature range: -15°C to +65°C; storage temperature range: -30°C to +70°C. Compact module dimension of 78.4 x 44.8 x 7.4 mm enhances compatibility with embedded systems. Display brightness is approximately 304 nits for excellent visual clarity.
Connector type: 30 way FPC ensuring seamless system integration. Picaso controller providing advanced display control and feature support.
This 4D Systems Gen4 module is an ideal solution for development and embedded system projects requiring a graphical user interface with touch capabilities. It is widely applicable in industrial control panels, laboratory instrumentation, educational kits, and other embedded automation systems. Explore the full range of 4D Systems Raspberry Pi screens and modules for tailored solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display resolution of this module is 240 x 320 pixels, providing detailed visual output.
This display module operates reliably in ambient temperatures ranging from -15°C to +65°C.
It utilizes resistive touch technology, allowing for precise user input.
The dimensions of the module are 78.4 mm in length, 44.8 mm in width, and 7.4 mm in height.
The kit includes a Gen4 interface module, programming adapter, a 4 GB micro SD card preloaded with software, and necessary cables such as a 150 mm 5-way female-to-female FFC ribbon cable with a male-to-male adapter.
The display brightness measures approximately 304 nits, ensuring good visibility under various lighting conditions.
This display module uses a 30-way FPC connector for seamless system integration.
It supports 4D Workshop4 programming environments, including Designer, ViSi, and Serial modes.
The storage temperature capability ranges from -30°C to +70°C, allowing for robust handling.
The diagonal display size is 2.4 inches, equivalent to 60.96 mm.
The module is powered and controlled by the Picaso controller, which provides advanced display control and feature support.
This display module is suitable for development, educational, and embedded display projects, as well as industrial control panels and laboratory instrumentation.
