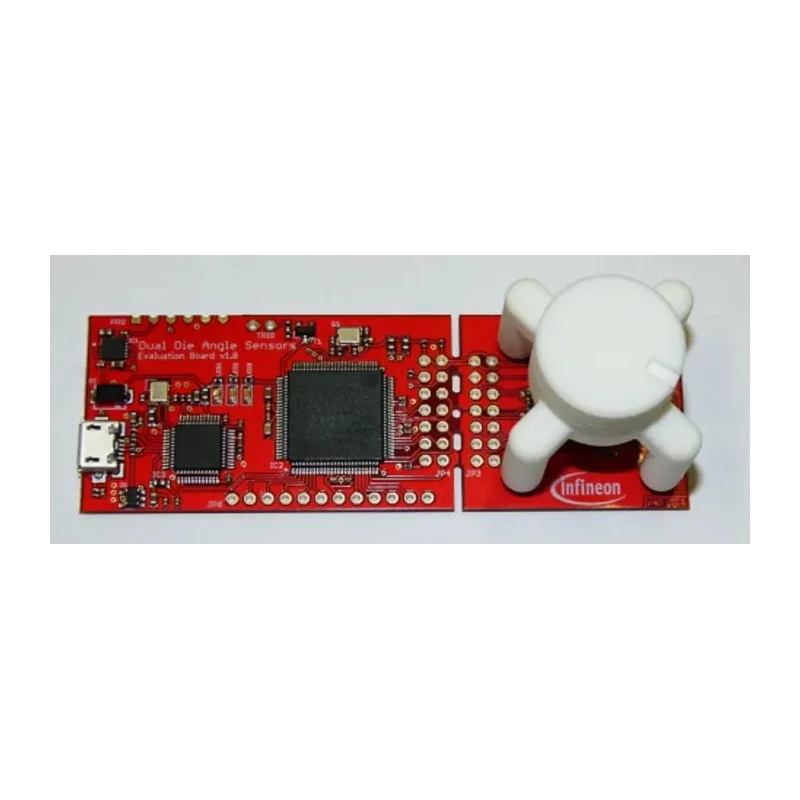

Infineon Angle Sensor Evaluation Kit with TLE5309 E1211 Sensor, XMC4700 Platform TLE5309

Infineon's TLE5309 Angle Sensor Evaluation Kit (Model TLE5309) is designed for engineering and development professionals to evaluate the TLE5309 E1211 angle sensor effectively. Based on the XMC4700 platform, this evaluation kit facilitates rapid prototyping and real-time angle measurement testing.

The kit comprises a Dual Die Angle Sensors Evaluation Board integrated with a high-precision TLE5x09A16(D) sensor, offering reliable angular position sensing. A 3D printed rotation knob with a magnet allows users to simulate various angular positions with ease, enhancing experimental flexibility.

Communication is handled by an FTDI chip capable of high baud rates, ensuring fast and stable data transfer between the sensor board and host systems. This feature is essential for real-time monitoring and debugging in laboratory setups.

Designed to meet RoHS standards, the kit ensures safe and eco-friendly usage in electronic development environments. It is particularly suited for applications in sensor development for automotive systems, robotics, industrial automation, and other advanced electronics fields where precise angle sensing is critical.

The Infineon TLE5309 Evaluation Kit simplifies the integration and testing of dual die angle sensors, enabling developers to optimize sensor calibration and performance rapidly. The kit includes a Dual Die Angle Sensors Evaluation Board for precise measurement.

Equipped with a TLE5x09A16(D) dual die angle sensor for advanced sensing applications. Features a 3D printed rotation knob with an integrated magnet for accurate angle adjustments. Incorporates an FTDI chip enabling high baud rate communication for efficient data transfer.

Compliant with RoHS standards ensuring environmental and safety regulations. Ideal for sensor development in electronics, automotive, and industrial automation applications. Explore the full range of Sensor Development Tools available at EnvMart for comprehensive electronics engineering support.
