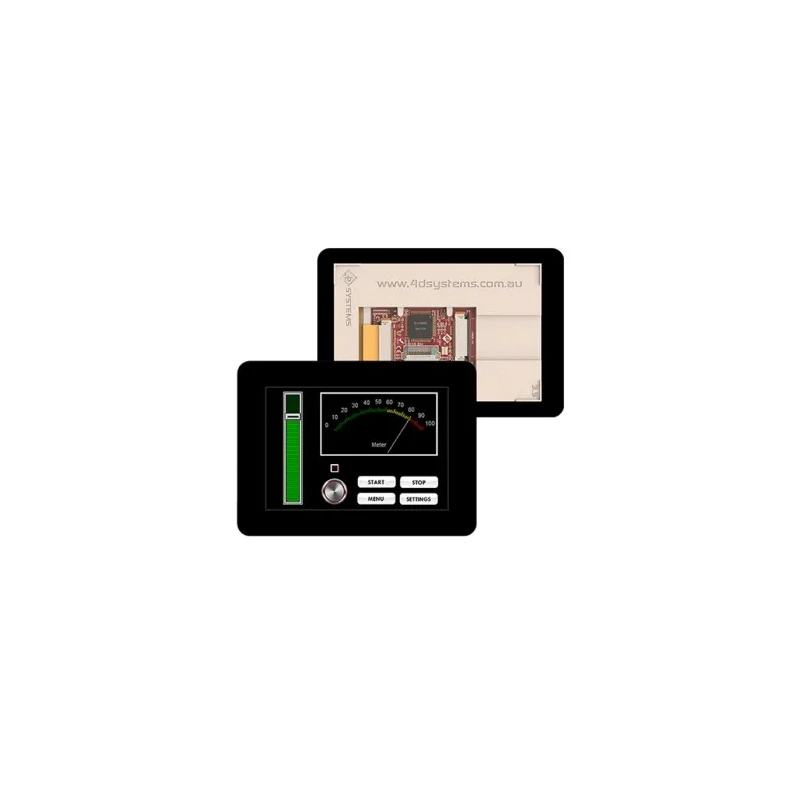

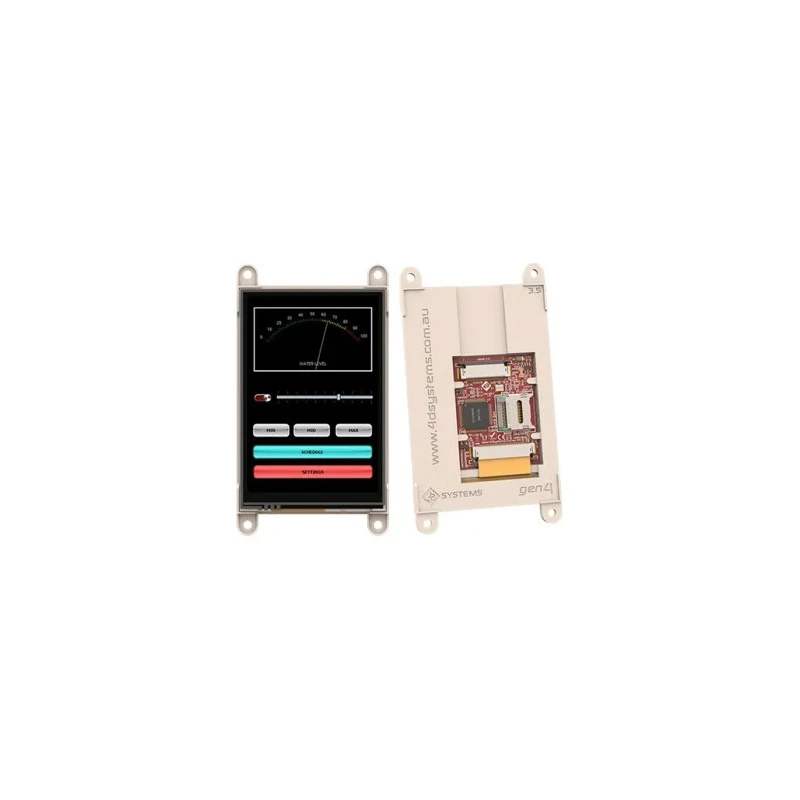

4D Systems Gen4 Diablo16 3.5 Inch Resistive Touch Screen Starter Kit , DIABLO16 Processor, 320x480 Resolution SK-gen4-35DT
Specifications
| Country of Origin | Australia |
|---|---|
| Resolution | 320x480 pixels |
| Brand | 4D Systems |
| Model | SK-gen4-35DT |
| Brightness | 182 cd/m² |
| Module Dimensions | 101.10 x 56.60 x 7.00 mm |
| Display Technology | Resistive Touch Screen |
| Supply Voltage | 5.0 V DC |
| For Use With | gen4 Series/4D Systems modules |
| Standards/Approvals | REACH, RoHS, CE |
| Kit Classification | Starter Kit |
| Featured Device | DIABLO16 |
| Kit Name | Gen4 Diablo16 |
| Diagonal Display Size | 3.5in |
| Display Viewing Area | 73.44 x 48.96 mm |
Key Features
- Includes a 3.5 inch resistive touch screen display module and DIABLO16 graphics processor for enhanced graphical capabilities.
- Supports 320x480 resolution with RGB 65K true to life colors for accurate graphical output.
- Starter kit includes integrated display module, interface board, programming adaptor, micro-SD card, and multiple cable accessories.
- Equipped with 16 general-purpose I/O pins and PWM audio pin, supporting fast 8-bit parallel data transfer and multimedia audio features.
- Features latch type micro-SD memory card connector for multimedia storage and dedicated SPI channels for connectivity.
- Module dimensions are 101.10 x 56.60 x 7.00 mm, offering a compact solution for embedded designs.
- Brightness rated at 182 cd/m² and viewing area of 73.44 x 48.96 mm for excellent visual performance.
- Operating voltage is 5.0V DC and storage temperature range is -30°C to +80°C, ensuring versatility and durability.
Product Description
The 4D Systems SK-gen4-35DT Gen4 Diablo16 Starter Kit provides a robust solution for developers and engineers seeking a high-performance display board for embedded applications. This comprehensive kit features a 3.5 inch resistive touch screen integrated with the DIABLO16 graphics processor, delivering impressive graphical and interactive capabilities for projects requiring advanced user interfaces.
The touch screen display module in this starter kit supports a resolution of 320x480 pixels with RGB 65K colors, enabling vivid and accurate image rendering. The board includes 16 general-purpose I/O pins, enabling fast 8-bit parallel data transfer through the upper 8 bits, as well as a PWM audio pin to deliver WAV file sound generation and external amplifier support for multimedia projects.
The system is equipped with a latch type micro-SD memory card connector, offering reliable multimedia storage and data logging functionality. Connectivity is further enhanced by one dedicated SPI channel for SD card operations, three configurable SPI channels, and three I2C channel interfaces to support a range of embedded communications and peripherals.

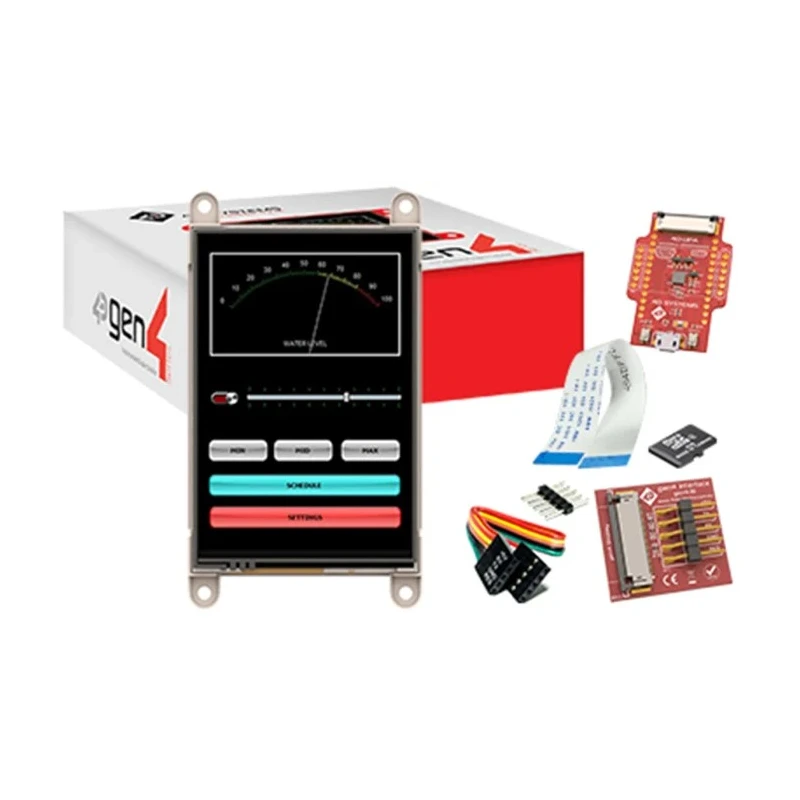

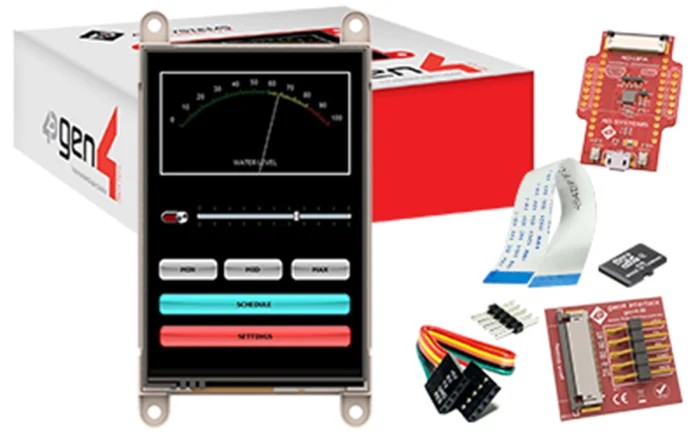

This kit comes complete with the Gen4 display module, gen4-IB interface board, Gen4 Programming Adaptor (gen4-PA), a 4GB micro-SD card, a 5-way cable for easy breadboard or host connection via the gen4-IB, and a 30-way 150mm FFC cable accessory. These components provide a flexible and modular platform for developers.
Physically, the module dimensions are 101.10 x 56.60 x 7.00 mm, with a display viewing area of 73.44 x 48.96 mm and brightness of 182 cd/m², ensuring crisp and reliable visual performance. The kit operates at 5.0V DC supply voltage and is suitable for operation within storage temperatures ranging from -30°C to +80°C.
Applications include embedded system development, Raspberry Pi-based projects, and broader industrial, laboratory, and educational platforms requiring touch interface displays. Designed to meet REACH, RoHS, and CE standards, it is suitable for global product deployments.
This starter kit is ideal for engineers, technicians, educators, and product designers who need a full-featured, easy-to-integrate resistive touch screen platform for their system development and prototyping needs.
Explore more Display Modules and starter kits from 4D Systems in EnvMart's Electronics & Electricals category for advanced embedded solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resolution of this starter kit is 320x480 pixels, providing clear and vivid images.
It utilizes a resistive touch screen technology, allowing for interactive user interfaces.
The module dimensions are 101.10 x 56.60 x 7.00 mm, making it compact for embedded designs.
The display has a brightness rating of 182 cd/m², ensuring good visibility in various lighting conditions.
The operating voltage for this kit is 5.0V DC, which is standard for many embedded applications.
The kit includes the Gen4 display module, an interface board, a programming adaptor, a 4GB micro-SD card, and multiple cable accessories.
It supports one dedicated SPI channel for SD card operations, three configurable SPI channels, and three I2C channel interfaces.
The display viewing area measures 73.44 x 48.96 mm, providing ample space for user interaction.
It complies with REACH, RoHS, and CE standards, making it suitable for global product deployments.
This kit is suitable for embedded system development, Raspberry Pi-based projects, and various industrial, laboratory, and educational platforms.
The DIABLO16 processor enhances graphical capabilities and supports fast 8-bit parallel data transfer along with multimedia audio features.
The storage temperature range for this kit is -30°C to +80°C, allowing it to operate in various environmental conditions.
