4D Systems 2.4 in Arduino Compatible Resistive Touch Screen Display gen4

Free Delivery in India | Lowest Global Shipping Charges

4D Systems 2.4 in Arduino Compatible Resistive Touch Screen Display gen4

Name: 4D Systems 2.4 in Arduino Compatible Resistive Touch Screen Display gen4
Brand: 4D Systems
SKU: 198512
Price: 78.89 USD
Availability: InStock



Category Arduino Compatible Display Module Brand 4D Systems Condition New

Specifications

Country of Origin	China
Brand	4D Systems
Model	gen4
Series	gen4
Display Resolution	240 x 320 pixel
Display Technology	Resistive Touch Screen
External Dimensions	78.4 x 44.8 x 7.2 mm
For Use With	Arduino
Viewing Area Dimensions	36.72 x 48.96 mm
Diagonal Display Size	2.4in

Key Features

Features a 4-wire resistive touchscreen for human-machine interface applications.
Compact size with module dimensions 78.4 x 44.8 x 7.2 mm including mounting tabs.
Utilizes a 30-pin ZIF socket for easy connection and integration.
Includes an Arduino adaptor shield for direct Arduino compatibility and programming.
Powered by 4D Systems Diablo16 embedded controller with built-in graphics support.
Supports multimedia storage and data logging via micro-SD card connector.
Operates on 4.0 V to 5.5 V supply voltage.
Compliant with RoHS, REACH, and CE standards.

Product Description

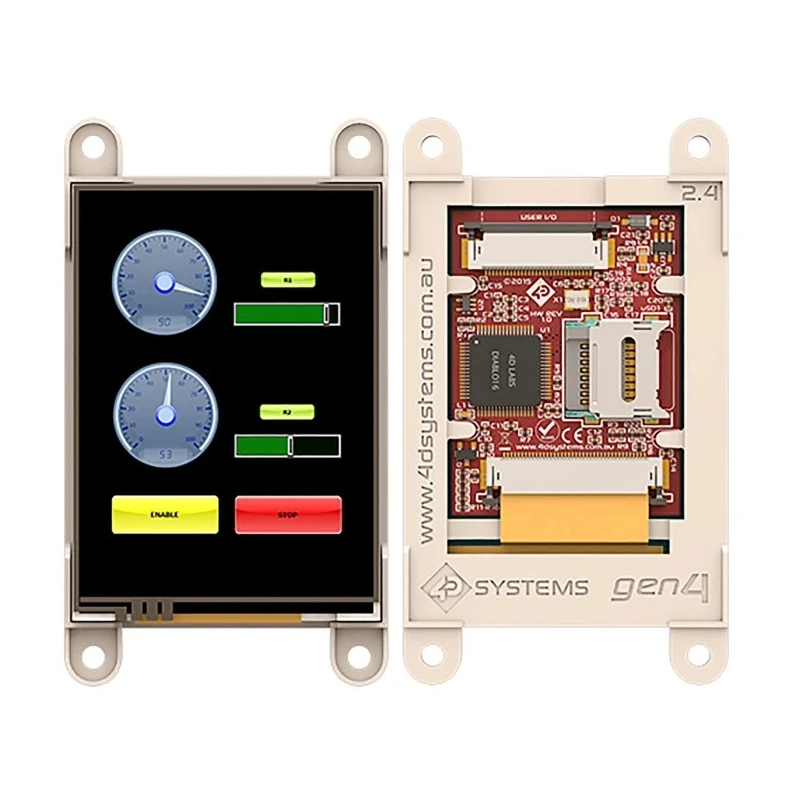

4D Systems gen4 Arduino Compatible Resistive Touch Screen Display model gen4-uLCD-24DT-AR is a compact 2.4 inch display module with a resolution of 240 by 320 pixels designed to interface easily with Arduino platforms. The module features a 4-wire resistive touchscreen to allow intuitive human-machine interaction.

The display module measures 78.4 mm length, 44.8 mm width, and 7.2 mm thickness, including mounting tabs, with a viewing area dimension of 36.72 by 48.96 mm. It has a 30-pin ZIF connector interface for power, signals, and programming, which facilitates straightforward integration into custom projects and embedded systems.

This module is powered by the 4D Systems Diablo16 embedded controller which provides internal support for graphics, text, images, and animations, and supports the Workshop4 IDE for flexible development. It contains 6 banks of 32 KB flash memory and 32 KB of RAM for user applications and data.

Additional I/O includes 16 configurable GPIO pins, analog outputs, PWM outputs, I2C and SPI communication channels, and support for quadrature encoder inputs, pulse outputs, and pin counters. A micro-SD card slot allows multimedia storage and data logging functionality.

The display module operates within a voltage range of 4.0 to 5.5 V and is compliant with RoHS, REACH, and CE standards, ensuring environmental and safety compliance for industrial and laboratory applications.

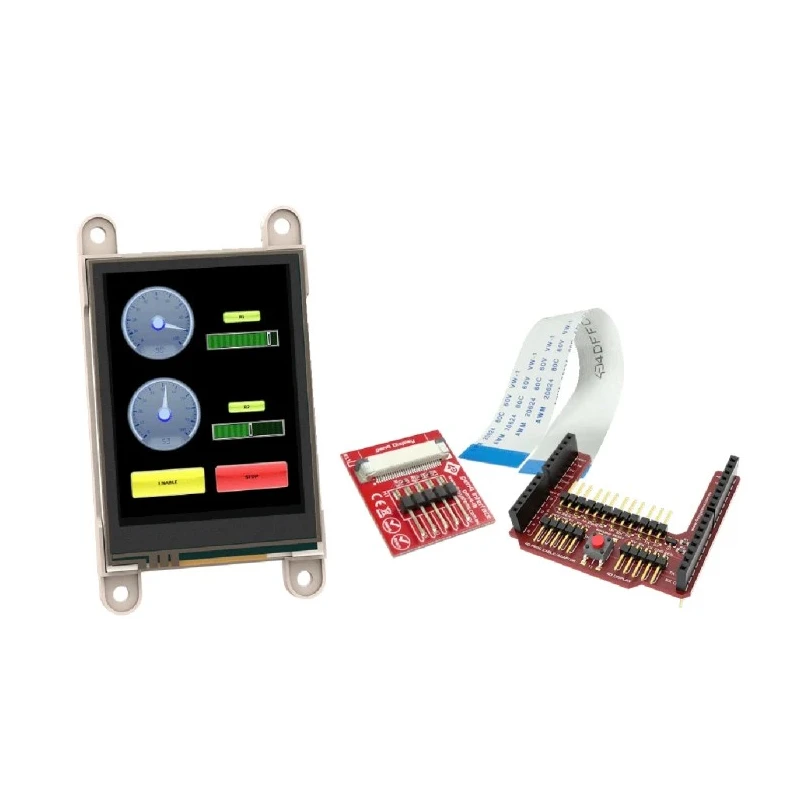

This Arduino compatible display is ideal for applications in embedded systems, electronic development, industrial controls, IoT devices, and educational projects. The kit content includes one 2.4" gen4-uLCD-24DT display module, one gen4-IB interface board, a 150 mm flat flexible cable, and an Arduino adaptor shield. Note: Arduino board is not included.

Features a 4-wire resistive touchscreen for human-machine interface applications. Compact size with module dimensions 78.4 x 44.8 x 7.2 mm including mounting tabs. Utilizes a 30-pin ZIF socket for easy connection and integration.

Includes an Arduino adaptor shield for direct Arduino compatibility and programming. Powered by 4D Systems Diablo16 embedded controller with built-in graphics support. Supports multimedia storage and data logging via micro-SD card connector.

Operates on 4.0 V to 5.5 V supply voltage. Compliant with RoHS, REACH, and CE standards. Suitable for embedded systems, industrial controls, IoT, and electronic development. Explore more Arduino compatible displays and accessories in our Electronics & Electricals category to find the right component for your development needs.

Explore more products in our Arduino Compatible Display Module category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The display resolution of this model is 240 x 320 pixels.

The external dimensions of the display module are 78.4 mm in length, 44.8 mm in width, and 7.2 mm in thickness, including mounting tabs.

This display utilizes a 4-wire resistive touchscreen technology.

The display operates within a voltage range of 4.0 V to 5.5 V.

The kit includes one 2.4" gen4-uLCD-24DT display module, one gen4-IB interface board, a 150 mm flat flexible cable, and an Arduino adaptor shield.

Yes, this model is designed for direct compatibility with Arduino platforms, including an Arduino adaptor shield for easy integration.

The embedded controller provides internal support for graphics, text, images, and animations, along with 6 banks of 32 KB flash memory and 32 KB of RAM for user applications.

This model supports I2C and SPI communication channels, along with 16 configurable GPIO pins, analog outputs, and PWM outputs.

The viewing area dimensions of the display are 36.72 mm by 48.96 mm.

This display is compliant with RoHS, REACH, and CE standards, ensuring environmental and safety compliance.

This display is suitable for applications in embedded systems, industrial controls, IoT devices, and electronic development.

The display utilizes a 30-pin ZIF connector interface for power, signals, and programming, facilitating straightforward integration.
