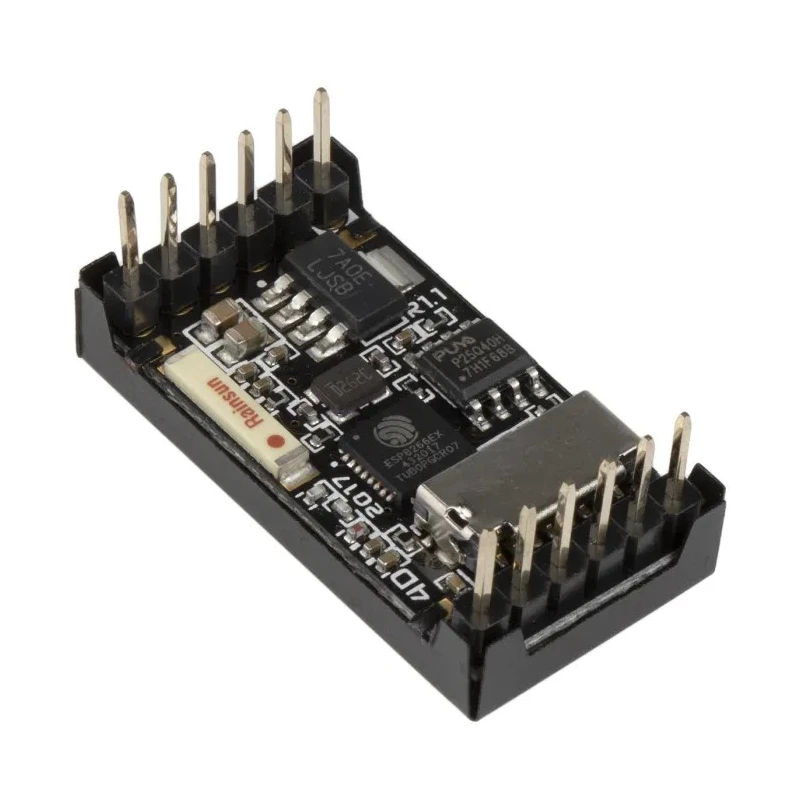

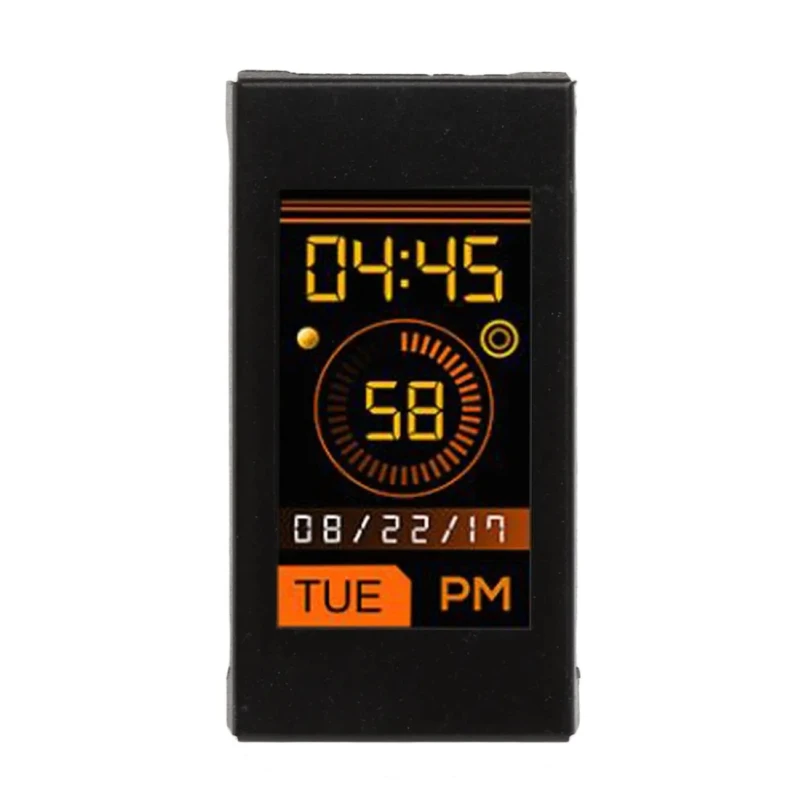

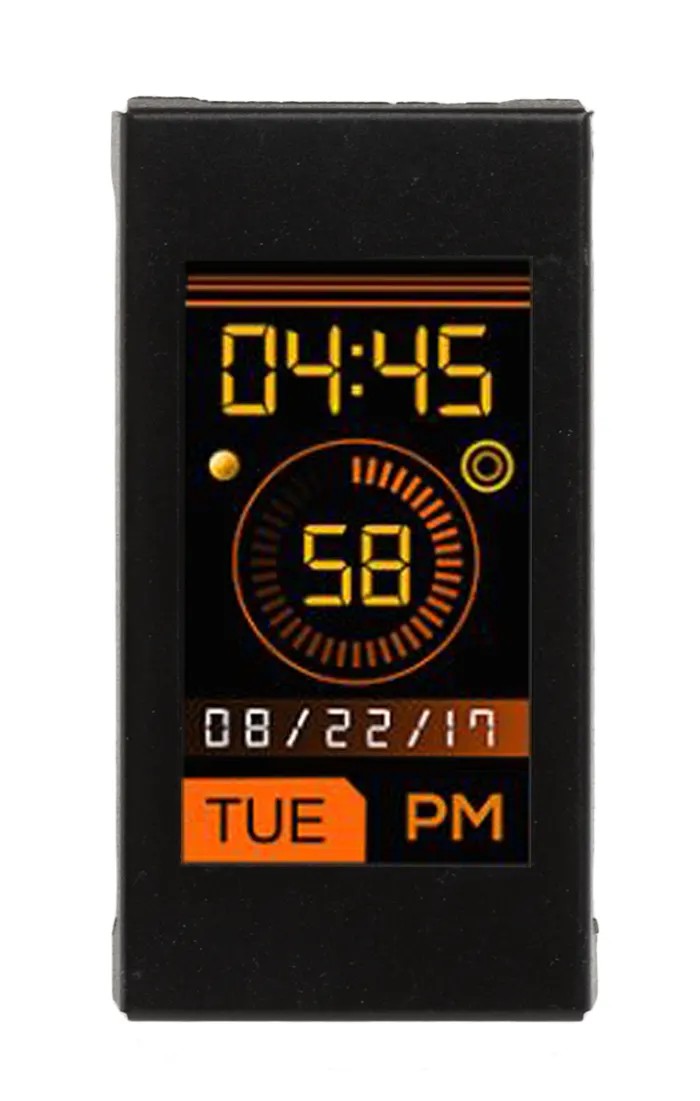

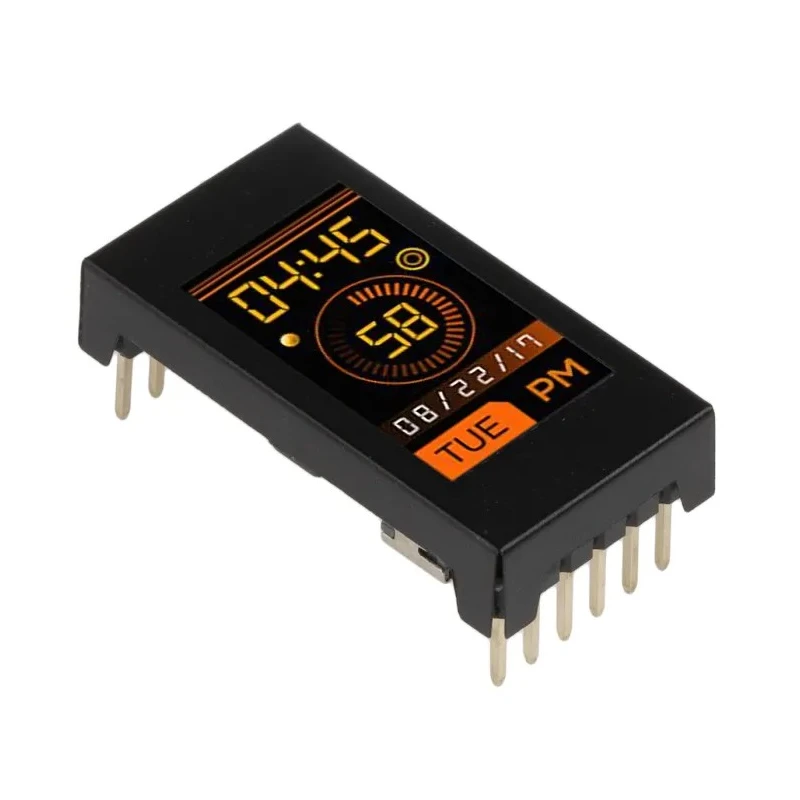

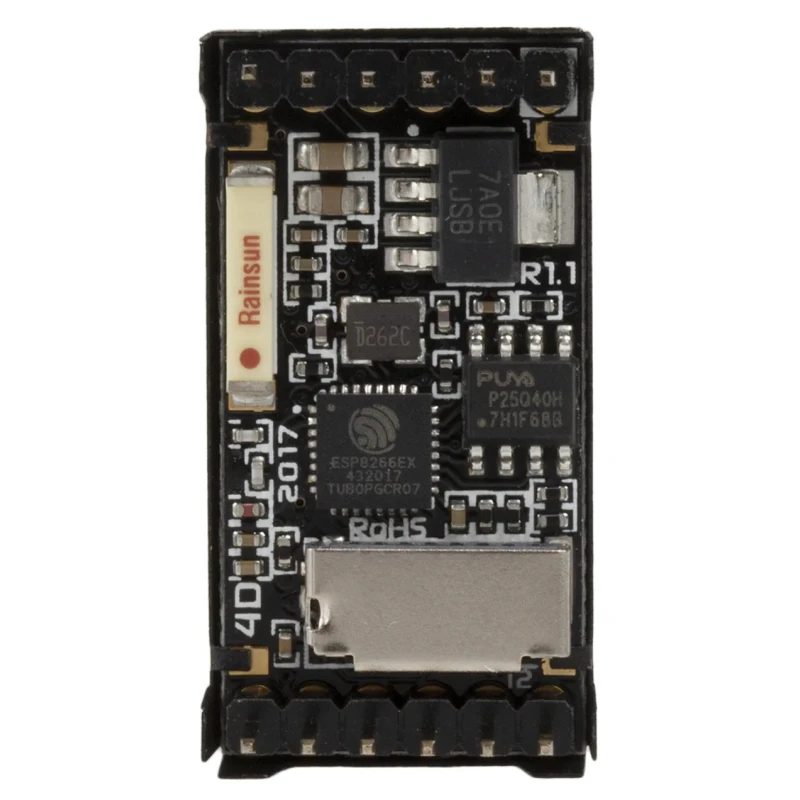

4D Systems LCD-TFT Display Module IoD-09TH, 22.86mm, 80x160 Pixels, ESP8266, LED Backlight, WiFi, Micro SD
Specifications
| Country of Origin | Australia |
|---|---|
| Display Type | LCD, TFT |
| Brand | 4D Systems |
| Interface | 12 pin/pad |
| Current | 140mA |
| Height | 16.4mm |
| Model | IoD-09TH |
| Depth | 11.52mm |
| Width | 6.3mm |
| Series | IoD |
| Maximum Operating Temperature | 70°C |
| Brightness | 180cd/m² |
| Minimum Operating Temperature | -20°C |
| Screen Resolution | 80 x 160 pixel |
| Standards/Approvals | CE |
| Minimum Supply Voltage | 5.5V dc |
| Viewing Area Dimensions | 20 x 12 mm |
| Backlight Type | LED |
| 500 | 1 |
| Diagonal Display Size | 22.86mm |
| Contrast Ratio | 500:1 |
| Contrast Ratio500 | 1 |
Key Features
- Ultra-compact 0.9 inch LCD display module featuring 80 x 160 pixel resolution.
- Bright LED backlight delivers 180cd/m² for clear viewing.
- Powered by Espressif ESP8266 SoC with built-in WiFi connectivity for flexible IoT integration.
- Includes a micro SD memory card connector for extended storage.
- 12-pin/pad interface ensures simple integration with embedded systems.
- True-to-life RGB TFT screen with 65K colours and enhanced clarity.
- Operates reliably between -20°C and +70°C for robust industrial use.
- CE compliant and comes with REACH certification.
Product Description
The 4D Systems IoD-09TH is a highly advanced LCD-TFT display module engineered for embedded and IoT applications. Featuring a diagonal size of 22.86mm (0.9 inches), this module offers an impressive screen resolution of 80 x 160 pixels and 180cd/m² brightness for precise visual output. Its compact design and robust technical capabilities make it suitable for integration into industrial, laboratory, and commercial electronic systems where space, clarity, and connectivity are vital.
Powered by the Espressif ESP8266 SoC, the IoD-09TH provides reliable built-in WiFi (802.11 b/g/n/e/i) connectivity, supporting wireless communication and remote control. The module is equipped with a micro SD card slot for convenient onboard storage, enabling logging, firmware upgrades, or graphics management as required in advanced control panels and interfacing solutions.
The display utilizes a bright LED backlight and TFT RGB screen supporting 65K true-to-life colours, ensuring high-contrast, vivid graphics under varied lighting conditions. The 12-pin/pad interface allows seamless communication with microcontrollers, PLCs, or other data acquisition systems. Its low power requirements and 140mA current consumption optimize energy use, making it a strong candidate for portable and battery-powered designs.
The IoD-09TH display module offers a viewing area of 20mm x 12mm, with compact dimensions of 16.4mm height, 11.52mm depth, and 6.3mm width. It performs reliably in operating temperatures ranging from -20°C to +70°C and meets CE and REACH compliance standards for safety and environmental responsibility. Programmable via 4D Systems Workshop4 or the Arduino IDE (ESP8266 core), it is suited for rapid prototyping, production, and custom industrial screen solutions.
Typical applications include industrial instrumentation, IoT dashboards, portable test devices, laboratory displays, construction diagnostics, and commercial automation panels. Integrators and designers benefit from its advanced feature set, connectivity, and compact form factor in environments where real-time visual communication is essential.
Discover more advanced Display Modules and electronics from 4D Systems with EnvMart. Browse expert-rated industrial electronics for innovative control panel solutions and embedded products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IoD-09TH display module features a resolution of 80 x 160 pixels.
This model utilizes LCD and TFT display technology.
The display has a brightness level of 180cd/m², providing clear visibility.
The module has dimensions of 16.4mm in height, 11.52mm in depth, and 6.3mm in width.
It operates reliably between -20°C and +70°C.
The IoD-09TH connects through a 12-pin/pad interface, allowing easy integration with microcontrollers and PLCs.
The display is equipped with a bright LED backlight.
The minimum supply voltage required for this module is 5.5V DC.
The viewing area dimensions are 20mm x 12mm.
The IoD-09TH has a current consumption of 140mA.
Yes, it is CE compliant and has REACH certification.
Typical applications include industrial instrumentation, IoT dashboards, and portable test devices.
