4D Systems 3.2in LCD Colour Display Touch Screen 81.28 mm 240 x 320 pixel gen4-uLCD-32DT

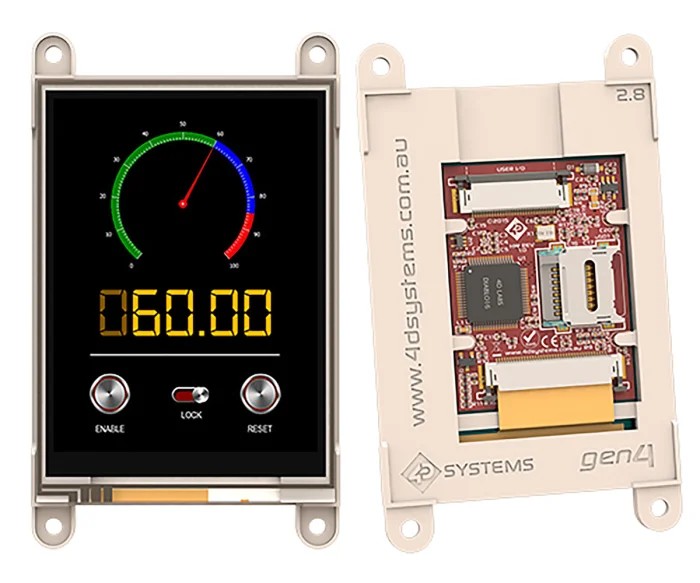

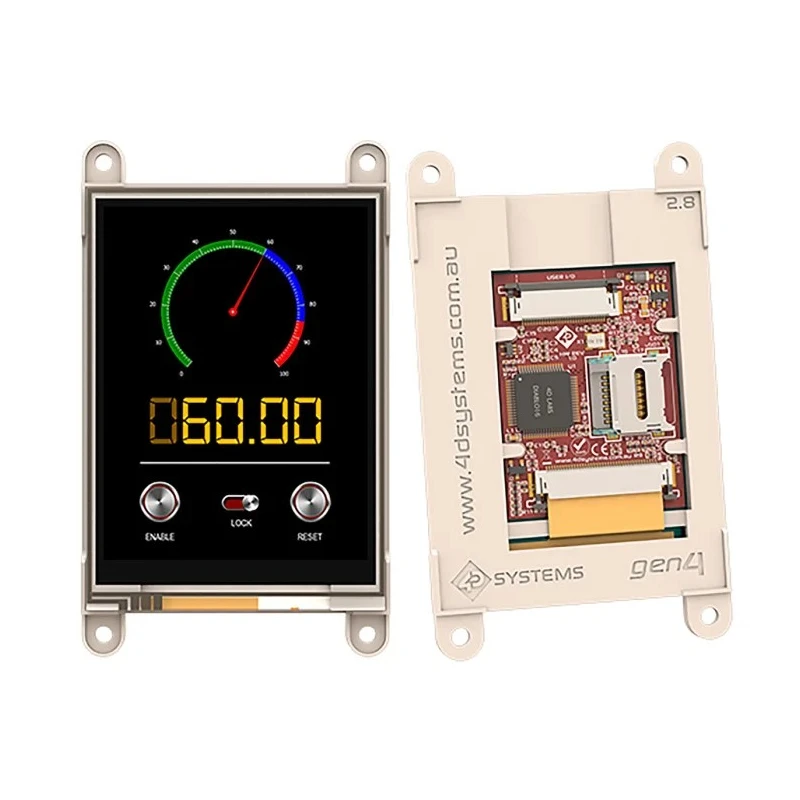

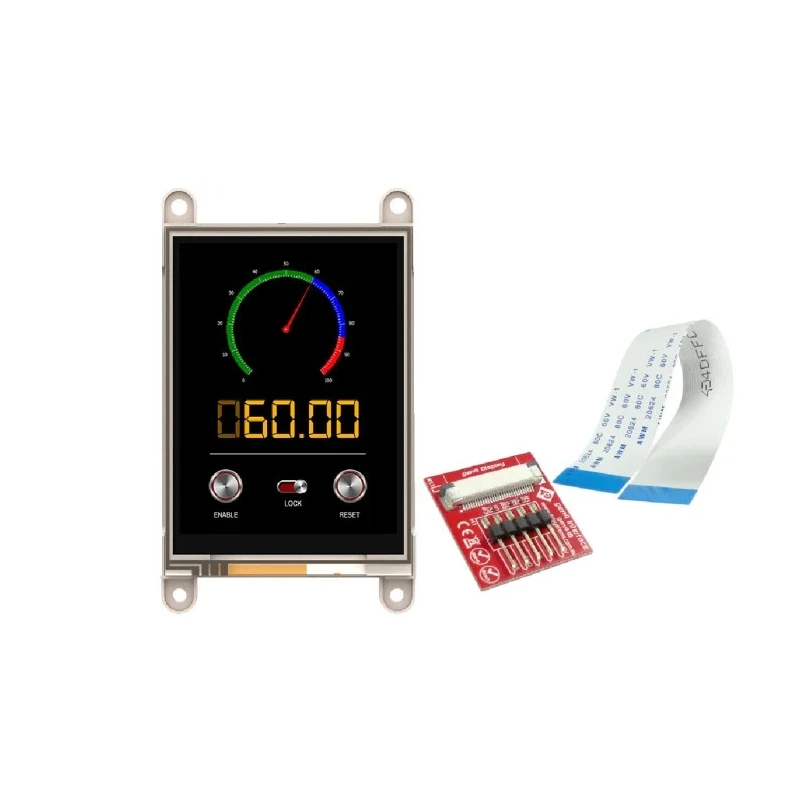

4D Systems gen4-uLCD-32DT LCD Colour Display Touch Screen is a high-quality 3.2-inch (81.28 mm) electronic component designed for embedded display applications requiring vibrant color output and touch interactivity. It features a 240 x 320 pixel TFT transmissive LCD with a resistive 4-wire touch screen, offering intuitive user input and efficient visualization.

The display module includes a 30-pin ZIF socket for easy integration with motherboards and applications without complex wiring. Its slim profile with compact dimensions (95.7 mm width, 64.8 mm depth, and 7.5 mm height) fits seamlessly into space-constrained devices.

Equipped with the powerful 4D Systems Diablo16 embedded processor, the display delivers built-in graphics, text, image, and animation support, programmable via the 4D Systems Workshop4 IDE with four development environments. The module also offers multimedia storage and data logging functionalities through the integrated micro-SD card connector.

Power operation is within 4.0 V to 5.5 V with a current draw of 165 mA. The LED backlight provides brightness of 160 cd/m² and contrast ratio of 500:1, rendering true RGB 65k colors for realistic visuals. The display supports up to 16 GPIO pins, 3 I2C channels, and 3 SPI channels for extensive peripheral interfacing including pulse outputs and quadrature encoder input configurations.

The device is CE certified and operates reliably across -10°C to 60°C, making it well suited for industrial, automation, embedded systems, laboratory equipment, and other commercial electronics applications.

Its integrated features and easy connectivity make the 4D Systems gen4-uLCD-32DT LCD Color Display Touch Screen a versatile choice for developers requiring a compact, high-performance human-machine interface display module.

This 4D Systems LCD features a 4-wire resistive touch screen for versatile input. The display supports a serial interface for communication. It includes a micro-SD card connector for multimedia storage and data logging. The module operates between 4.0 V and 5.5 V and consumes 165 mA current.

Compact module dimensions: 95.7 mm width, 64.8 mm depth, and 7.5 mm height. Backlighting is provided by an LED source with 160 cd/m² brightness and a 500:1 contrast ratio. The display supports true-to-life RGB 65k colors and integrates the 4D Systems Diablo16 processor for graphics, text, and animation capabilities.

Operating temperature ranges from -10°C to 60°C, suitable for various industrial environments. CE certified ensuring compliance with industry standards. Includes 16 GPIO pins and multiple I2C and SPI communication channels for extended connectivity.
