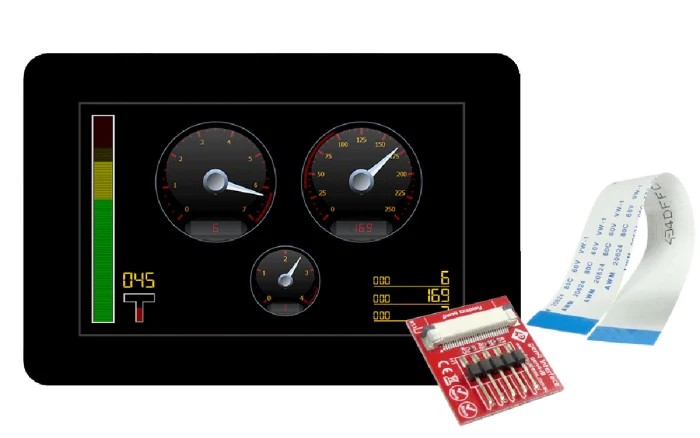

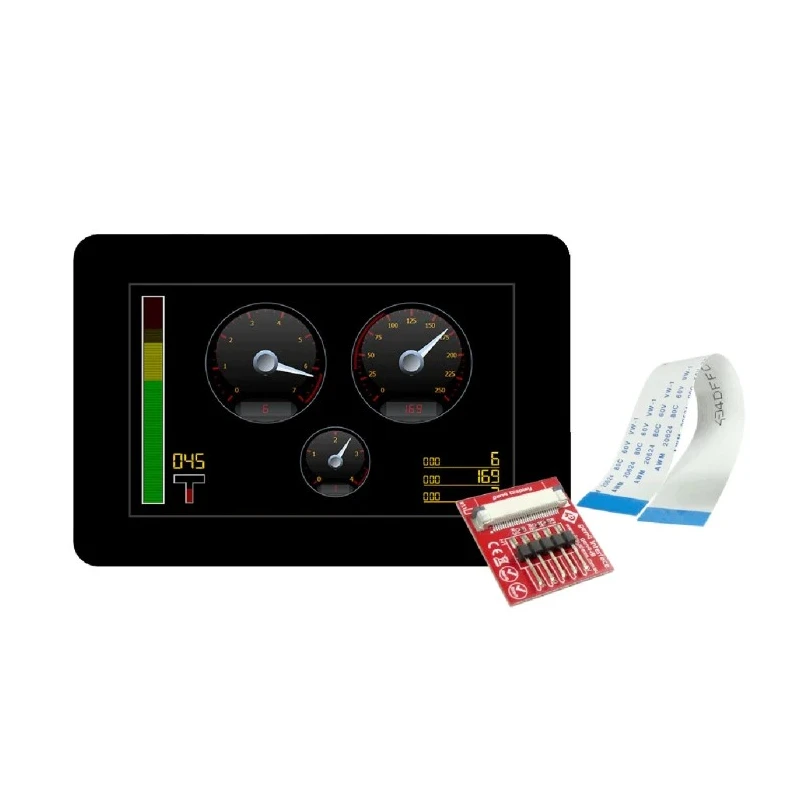

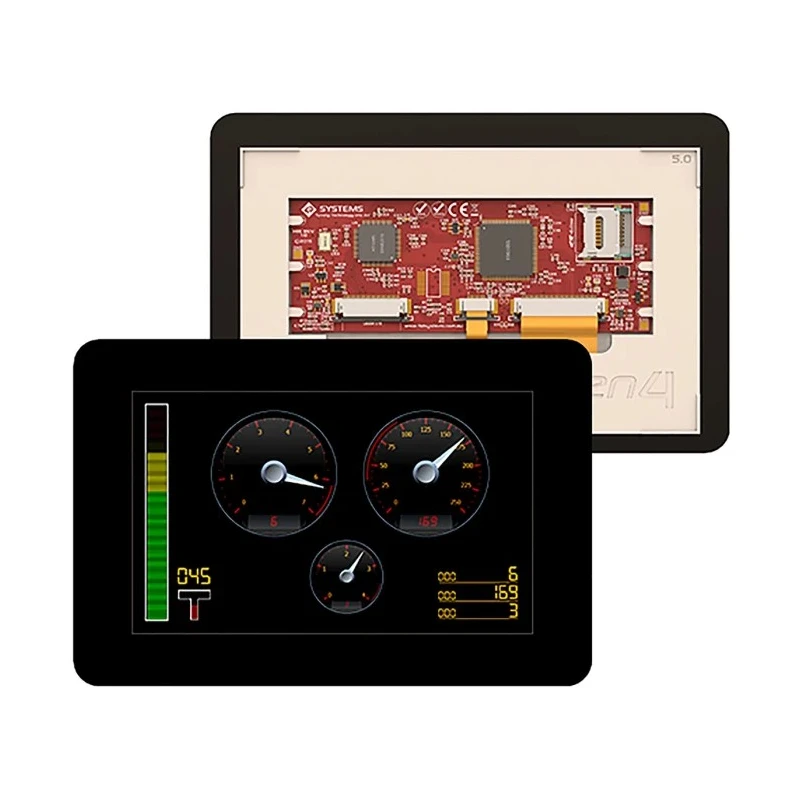

4D Systems 4D Systems gen4 series LCD Colour Display Touch Screen 5 in 800 x 480 pixel gen4-uLCD-50DCT-CLB
Specifications
| Country of Origin | Australia |
|---|---|
| Display Type | LCD |
| Brand | 4D Systems |
| Current | 445mA |
| Height | 8.2mm |
| Model | gen4-uLCD-50DCT-CLB |
| Depth | 64.8mm |
| Width | 140.7mm |
| Series | gen4 |
| Maximum Operating Temperature | 60°C |
| Brightness | 475cd/m² |
| Minimum Operating Temperature | -10°C |
| Interface Type | Serial |
| Screen Resolution | 800 x 480 pixel |
| Standards/Approvals | CE |
| Touch Screen Type | Capacitive |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4V |
| Viewing Area Dimensions | 108 x 65 mm |
| Backlight Type | LED |
| 500 | 1 |
| Diagonal Display Size | 5in |
| Contrast Ratio | 500:1 |
| Contrast Ratio500 | 1 |
Key Features
- It includes a 30-pin ZIF socket for easy integration with other electronics.
- The capacitive touch screen utilizes 4-wire technology for accurate input.
- Operates between 4V to 5.5V supply voltage with a current consumption of 445mA.
- Equipped with LED backlight for enhanced visibility.
- Supports operating temperatures from -10°C to 60°C for reliability in various environments.
- The module features a micro-SD card connector for multimedia storage and data logging.
- The integrated Diablo16 processor enables built-in graphics, text, image, and animation capabilities.
- Compatible with 4D Systems Workshop4 IDE for diverse programming options.
Product Description
4D Systems gen4-uLCD-50DCT-CLB LCD Colour Display is a compact and versatile 5-inch display module featuring a high resolution of 800 x 480 pixels and a capacitive touch screen interface. It is designed for industrial, laboratory, and commercial applications that require a robust human-machine interface with intuitive touch input.
The display's serial interface and 30-pin ZIF connector simplify integration with motherboards and electronic assemblies, reducing wiring complexity. Its LED backlight and brightness of 475cd/m² along with a 500:1 contrast ratio ensure clear visibility in varied lighting conditions.
The module operates efficiently within a voltage range of 4.0V to 5.5V and supports a current draw of 445mA. It can function reliably in temperatures ranging from -10°C to 60°C, making it suitable for industrial and outdoor environments.
Designed with features like 6 banks of 32KB flash memory, 32KB of user RAM, and up to 16 GPIO pins including analog outputs, it offers significant customization and fine control for developers. Connectivity options include multiple I2C and SPI channels, PWM outputs, and quadrature encoder inputs for advanced sensor interfacing.
The integrated micro-SD card connector allows for added data storage capabilities such as multimedia and logging, enhancing the display's functionality.
Powered by the 4D Systems Diablo16 embedded processor, this display supports rich graphics, animations, and text rendering, benefiting from compatibility with the 4D Systems Workshop4 IDE, which offers four programming environments for flexible development.
The display module dimensions are approximately 140.7 mm width, 64.8 mm depth, and 8.2 mm height including mounting tabs, maintaining a compact profile. Its CE certification confirms compliance with European safety and quality standards.
Originating from Australia, this display assures quality manufacturing and design.
This product is suitable for integration in industrial automation systems, laboratory instrumentation, embedded systems projects, and commercial electronic equipment requiring a sophisticated display interface.
