| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 3mm |
| Model | BAT54S,215 |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | BAT54 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Series |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 800mV |
| Peak Reverse Recovery Time trr | 5ns |
| onsemi 30 V 200 mA Diode Schottky 3-Pin SOT-23 BAT54SLT1GBrand | onsemi |

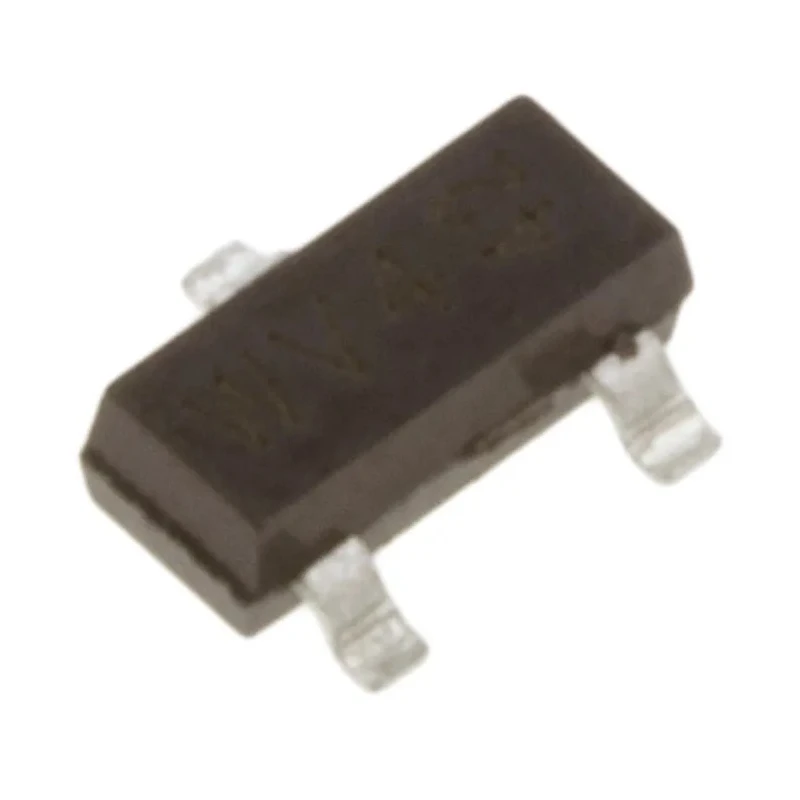

Nexperia BAT54S,215 is a high-performance Schottky diode designed for applications requiring low forward voltage and fast switching capabilities. Packaged in a 3-pin SOT-23 surface mount, it supports a maximum continuous forward current of 200 mA and withstands peak reverse voltages up to 30 V. It features an ultra-small footprint suitable for space-constrained electronic designs.
This diode exhibits a low maximum forward voltage drop of 800 mV, which helps reduce power losses in circuits. It operates efficiently at temperatures ranging from -65°C to 125°C, meeting the stringent requirements of automotive and industrial applications. The device complies with AEC-Q101 automotive standards, ensuring reliability in harsh environments.
Its key advantages include very low leakage current and low capacitance, resulting in minimal power switching losses and high-speed performance. The peak reverse recovery time of 5 ns further highlights its suitability for high-frequency switching circuits.
Typical applications include power management, voltage clamping, polarity protection, and fast switching in embedded systems, consumer electronics, and automotive electronics. The device enhances efficiency and performance in DC-DC converters, freewheeling diodes, and rectifier circuits within industrial, automotive, and consumer products.
Features a low forward voltage drop of 800 mV. Supports a maximum operating temperature of 125°C. Offers high efficiency with ultra-small, low-profile surface-mount design. Designed for minimal leakage current and low capacitance for fast switching.
Automotive standard compliant with AEC-Q101 certification. Peak non-repetitive forward surge current rated at 600 mA. Compact dimensions: 3 mm length, 1.4 mm width, and 1 mm height. Explore EnvMart's extensive catalog of semiconductor components and Schottky diodes to find reliable devices suited for your industrial and electronic design needs.
