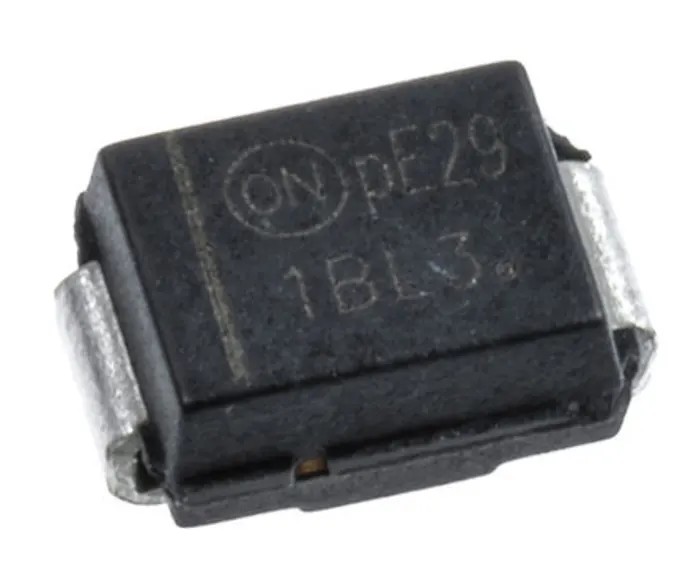

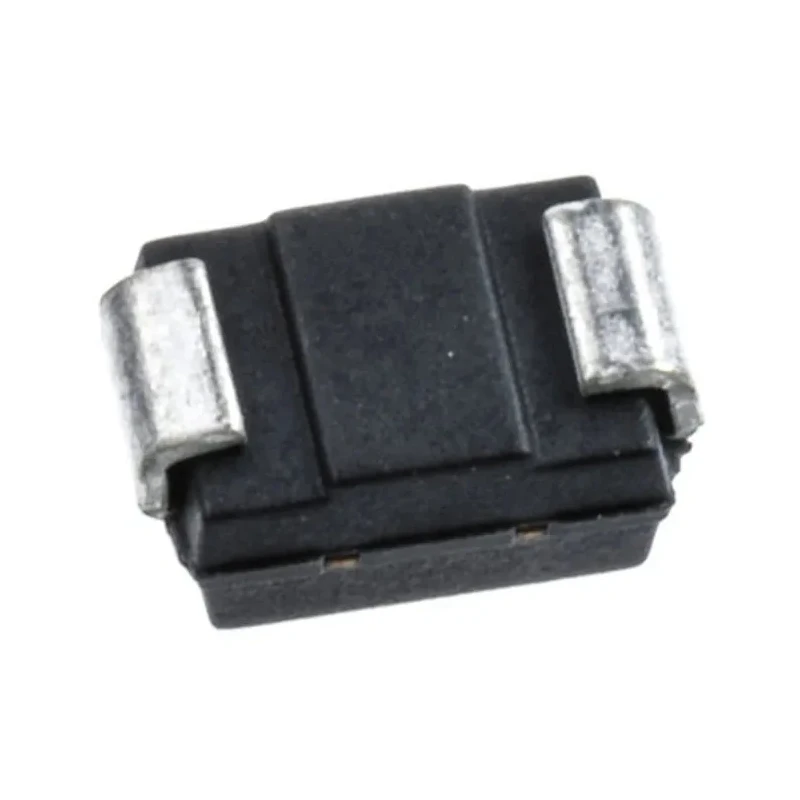

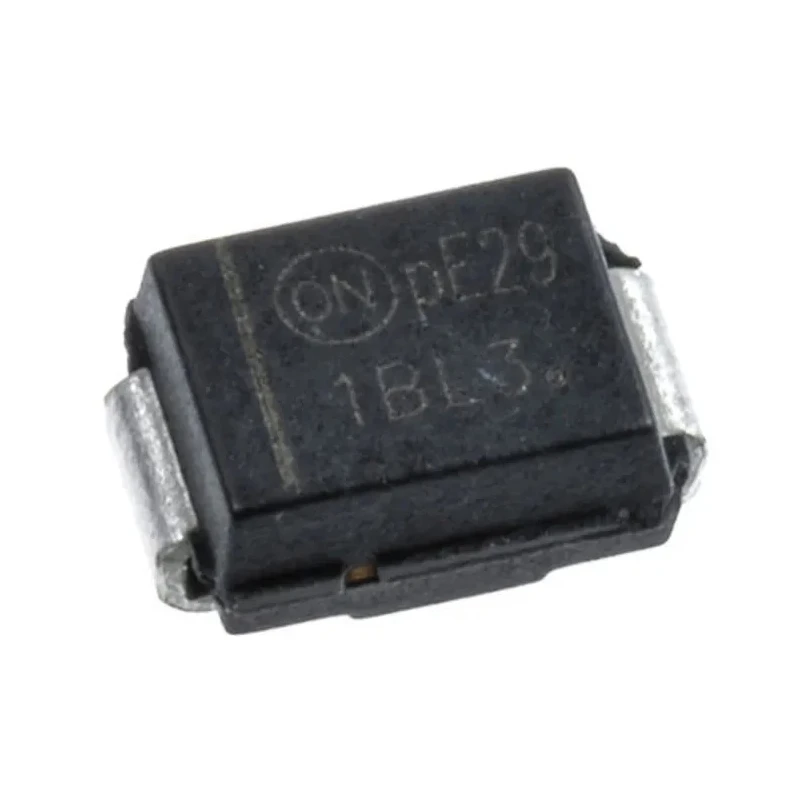

onsemi 30 V 2 A Surface Mount Schottky Diode DO-214AA MBRS130LT3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 4.32mm |
| Model | MBRS130LT3G |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | MBRS130 |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 440mV |
Key Features
- Maximum continuous forward current of 2 A for reliable performance.
- Peak reverse repetitive voltage rating of 30 V ensures effective blocking capability.
- Surface mount package type DO-214AA offers compact and lightweight design.
- Maximum forward voltage drop of 440 mV for efficient rectification.
- Wide operating temperature range from -65°C to 125°C for harsh environments.
- Utilizes Schottky barrier technology providing low forward voltage drop and fast switching.
- Epoxy moulded case with stress protection enhances durability and automated assembly compatibility.
- Complies with AEC-Q101 automotive qualification for automotive-grade applications.
Product Description
The onsemi MBRS130LT3G is a high-performance Schottky diode featuring a 30 V peak reverse voltage and 2 A maximum continuous forward current in a compact DO-214AA surface mount package. This diode employs Schottky barrier technology, which offers a low forward voltage drop and high switching speed, making it ideal for low voltage, high frequency rectification tasks.
Its robust construction includes an epoxy moulded case providing stress protection and light weight packaging at approximately 11.7 mg, facilitating automated board assembly in industrial and automotive manufacturing.
The diode is rated for operation from -65°C to 125°C, enabling use in demanding environments including automotive, industrial, and consumer electronics. Physical dimensions are 4.32 mm in length, 3.95 mm in width, and 2.13 mm in height, making it suitable for dense PCB layouts.
Its automotive AEC-Q101 qualification certifies its reliability for automotive electronic systems. This diode is commonly deployed for rectification, freewheeling, and polarity protection in DC-DC converters, power supplies, and signal circuits.
Maximum continuous forward current: 2 A. Peak reverse repetitive voltage: 30 V. Maximum forward voltage: 440 mV. Peak non-repetitive forward surge current: 40 A. Operating temperature range: -65°C to 125°C. Surface mount DO-214AA package.
2-pin diode configuration. AEC-Q101 automotive standard compliance. Compact dimensions: 4.32 x 3.95 x 2.13 mm.
This diode is essential for semiconductor and power electronics applications in industrial, automotive, and consumer devices. Browse onsemi products in the Schottky Diodes & Rectifiers category at EnvMart to explore compatible components for your design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
