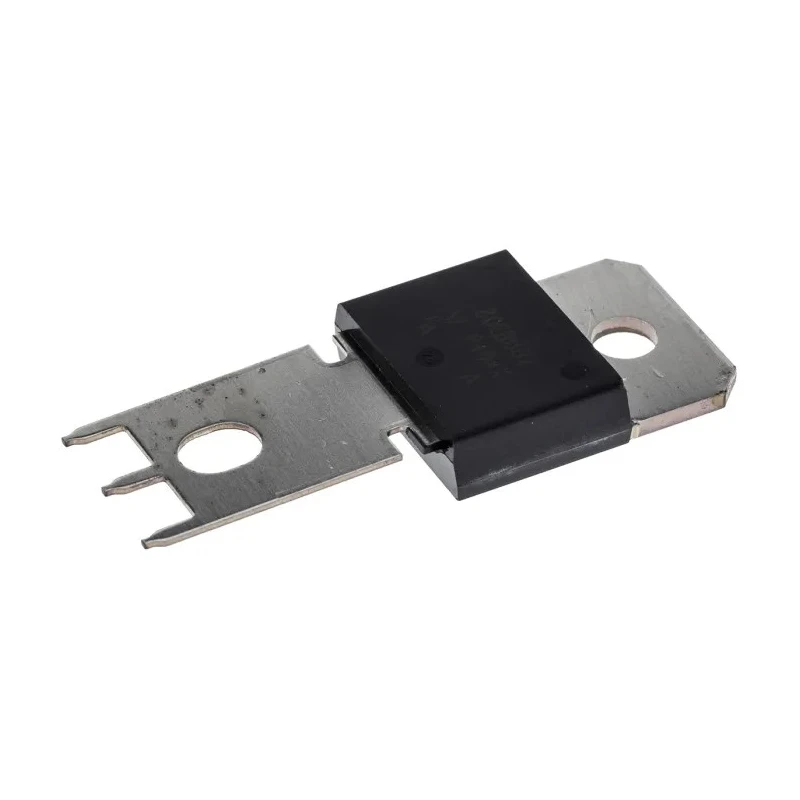

Vishay 200 V 80 A Ultrafast Soft Recovery Diode Panel Mount PowerTab 2-Pin VS-80EBU02
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4.2mm |
| Brand | Vishay |
| Height | 4.95mm |
| Length | 15.9mm |
| Model | VS-80EBU02 |
| Width | 12.4mm |
| Mount Type | Panel |
| Series | 80EBU02 |
| Maximum Operating Temperature | 175°C |
| Package Type | PowerTab |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | JEDEC-JESD47 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 80A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Recovery |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 800A |
| Maximum Forward Voltage Vf | 1.13V |
| Peak Reverse Recovery Time trr | 35ns |
| Vishay 400 V 80 A Diode Switching 2-Pin PowerTabBrand | Vishay |
Key Features
- Features a PowerTab panel mount package with 2 pins for secure installation.
- Maximum forward voltage of 1.13 V ensures low power loss during conduction.
- Peak reverse recovery time of 35 ns enables fast switching to reduce switching losses.
- Supports peak non-repetitive forward surge current up to 800 A for robust transient handling.
- Operating temperature range from -55°C to 175°C suits diverse industrial environments.
- Complies with JEDEC JESD47 standards for reliability and performance.
- Designed as a single diode recovery type for use in power rectification and switching.
Product Description
Vishay VS-80EBU02 is a high-performance ultrafast soft recovery diode engineered for industrial and electronic power applications. Rated at 200 V peak reverse voltage and capable of handling 80 A continuous forward current, this diode offers efficient and reliable rectification with minimal power loss.
The PowerTab panel mount allows easy integration into semiconductor modules and electronic circuits requiring compact form factor and durability.
Its low forward voltage drop of 1.13 V and fast peak reverse recovery time of 35 ns support high-efficiency switching, making it suitable for power supplies, inverters, and motor drives.
The diode sustains a peak non-repetitive forward surge current of 800 A, ensuring resilience under transient overloads, while the operating temperature range from -55°C to 175°C guarantees stable performance under harsh environmental conditions.
Compliance with JEDEC JESD47 standards underscores the diode’s quality and reliability in demanding industrial and commercial setups. With precise dimensions (length 15.9 mm, width 12.4 mm, height 4.95 mm, and diameter 4.2 mm), it fits seamlessly into power electronics assemblies.
Features a PowerTab panel mount for convenient installation. Ultra-fast recovery reduces switching losses. High surge current capacity enhances durability. Broad temperature range enables versatile applications. JEDEC certified for quality assurance.
Compact size suitable for dense electronic designs.
This Vishay diode is ideal for industrial electronics, power conversion, and semiconductor applications requiring fast switching and reliable recovery characteristics. Explore more semiconductors and electronic components in our comprehensive catalog at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this model is 1.13 V, which helps ensure low power loss during conduction.
This diode features a peak reverse recovery time of 35 ns, enabling fast switching and reducing switching losses.
The peak reverse voltage rating is 200 V, suitable for various power rectification applications.
It can handle a maximum continuous forward current of 80 A, making it effective for high-current applications.
The diode supports a peak non-repetitive forward surge current of up to 800 A, providing robust transient handling capabilities.
The operating temperature range is from -55°C to 175°C, allowing it to perform reliably in diverse industrial environments.
This diode features a PowerTab panel mount, which allows for secure installation in semiconductor modules and electronic circuits.
The diode has dimensions of 15.9 mm in length, 12.4 mm in width, and 4.95 mm in height, with a diameter of 4.2 mm.
It complies with JEDEC JESD47 standards, ensuring reliability and performance in demanding applications.
The Vishay VS-80EBU02 is designed as a single diode recovery type, suitable for power rectification and switching.
This model is ideal for industrial electronics, power conversion, and semiconductor applications requiring fast switching and reliable recovery characteristics.
The peak reverse current for this diode is rated at 50 μA, which is important for assessing its performance in various applications.
