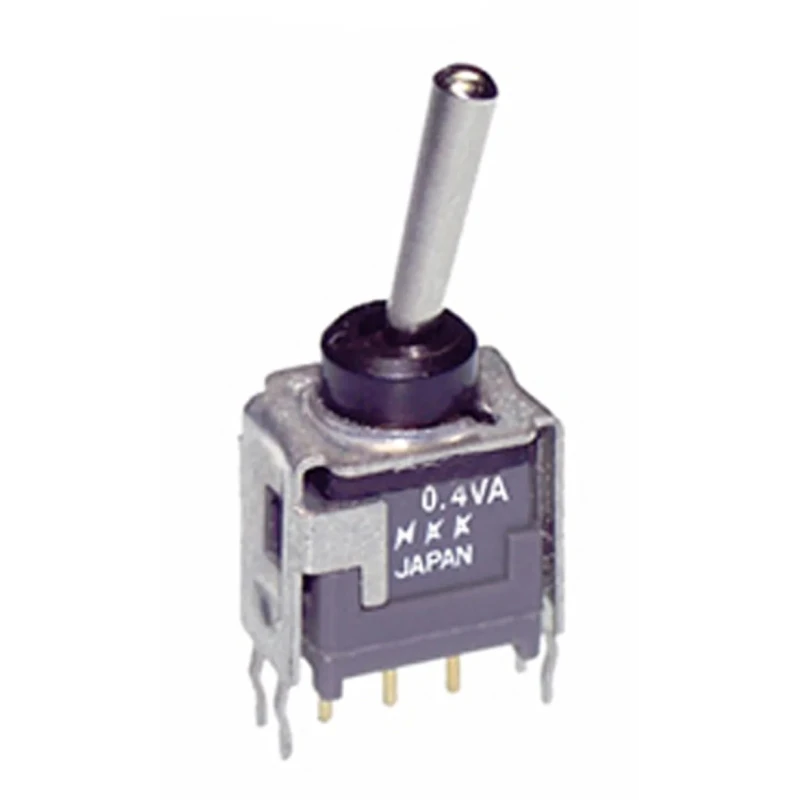

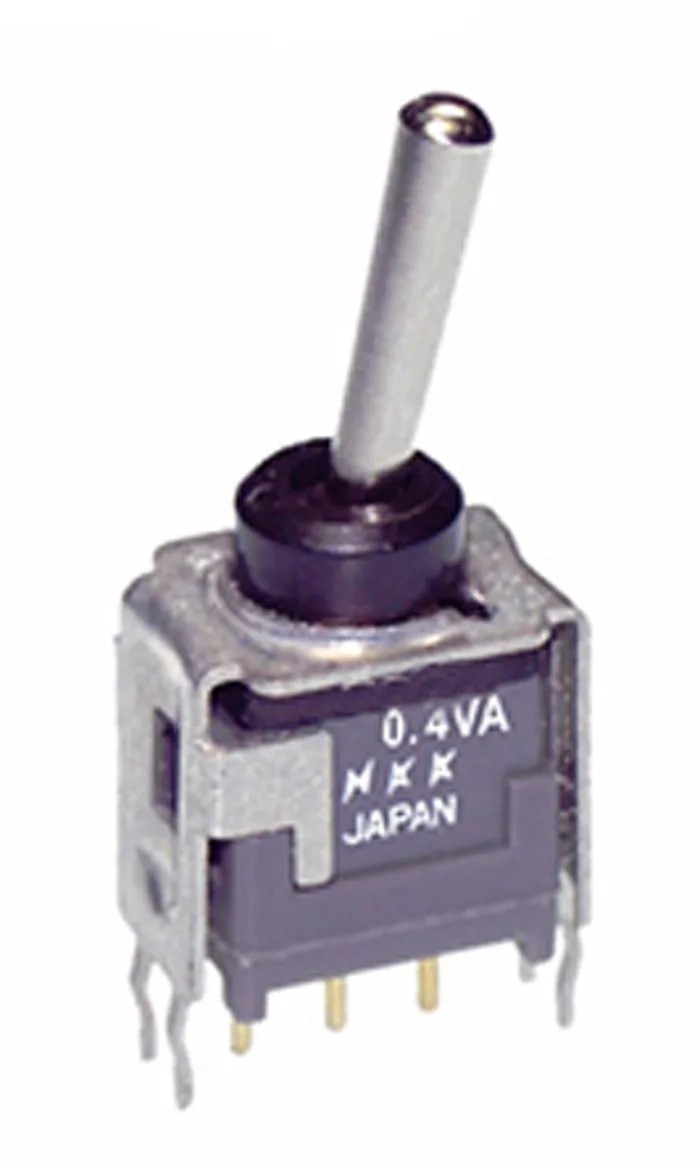

NKK Switches Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 28V DC AC B12AB
Specifications
| Country of Origin | China |
|---|---|
| Brand | NKK Switches |
| Height | 26.2mm |
| Length | 10.16mm |
| Model | B12AB |
| IP Rating | IP65 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.2 x 4.9 mm |
| Terminal type | Through Hole |
| Standards/Approvals | IP65, UL94V-0, IEC60529 |
| Switch Operation | On-On |
| Actuator Length | 10mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 100mA |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 28V ac |
| Actuator Material | Nickel Plated Brass |
Key Features
- Constructed with a nickel plated brass actuator for durability.
- Through hole terminal type allows easy PCB mounting.
- Provides smooth, positive detent actuation with superior contact stability.
- Sealed body construction offers IP65 rating preventing contamination.
- Suitable for operation between -30°C to 85°C temperature range.
- Mechanical life of 100000 operations ensures long service.
- Compact dimensions with a height of 26.2mm and length of 10.16mm.
- Complies with standards including IP65, UL94V-0, and IEC60529.
Product Description
NKK Switches B12AB is a toggle switch designed for PCB mounting with On-On switch operation and SPDT contact configuration. Rated for both 28V DC and 28V AC, it is optimized for logic-level applications with an award-winning STC contact mechanism delivering smooth and positive detent actuation.
The switch features a nickel plated brass actuator and through hole terminal type for secure PCB installation. Its sealed body construction offers IP65 protection rating, ensuring resistance to dust and water ingress, suitable for demanding industrial environments.
Operating temperature ranges from -30°C to 85°C, allowing use in a broad spectrum of applications including electrical automation and industrial control systems. The robust mechanical life of 100,000 operations ensures longevity and reliability.
Additional advantages include an antistatic superstructure enhancing contact stability and reliability in logic level circuits. Standards compliance includes IP65, UL94V-0, and IEC60529 certifications for quality and safety assurance.
Dimensions are compact at 26.2 mm height and 10.16 mm length, with a panel cutout size of 6.2 x 4.9 mm and actuator length of 10 mm, making it appropriate for compact PCB designs. Nickel plated brass actuator for durability.
Sealed construction with IP65 rating for protection. 100 mA contact current suitable for low-power circuits. Through hole terminal type for reliable soldering on PCB. Compliant with IEC60529 and UL94V-0 standards. Wide operating temperature from -30°C to 85°C.
Long mechanical life of 100,000 operations. Antistatic toggle switch design for increased contact stability. Compact size ideal for dense electronic assemblies. This toggle switch suits industrial, laboratory, electrical automation, and manufacturing applications requiring precise and reliable switch operation.
Explore more in the Toggle Switch category on EnvMart for similar quality industrial switches and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The mechanical life of this model is rated for 100,000 operations, ensuring longevity and reliability in use.
It has an IP65 rating, providing protection against dust and water ingress, making it suitable for demanding environments.
This unit has a height of 26.2 mm and a length of 10.16 mm, with a panel cutout size of 6.2 x 4.9 mm.
The contact configuration is SPDT (Single Pole Double Throw), allowing for versatile switching applications.
It is rated for both 28V DC and 28V AC, making it suitable for various low-power circuits.
The operating temperature range is from -30°C to 85°C, allowing for use in a wide variety of applications.
It uses a through hole terminal type, which allows for secure PCB mounting and reliable soldering.
The actuator is made of nickel plated brass, which enhances its durability.
It complies with IP65, UL94V-0, and IEC60529 standards, ensuring quality and safety assurance.
The switch features an On-On operation, providing a smooth and positive detent actuation.
It is suitable for applications in electrical automation, industrial control systems, and laboratory environments requiring reliable switch operation.
The actuator length is 10 mm, which contributes to its compact design for PCB applications.
