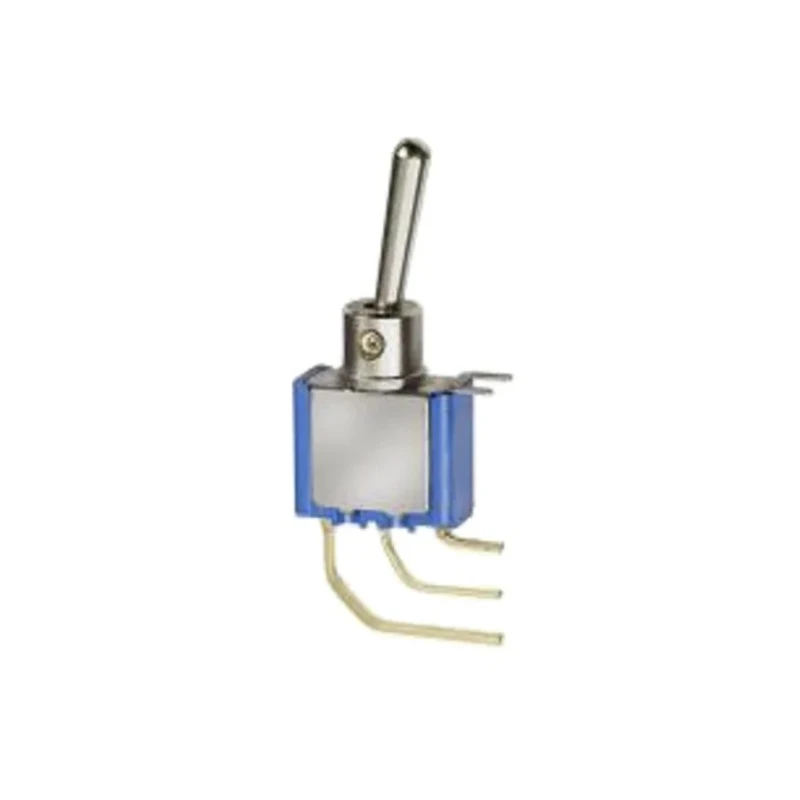

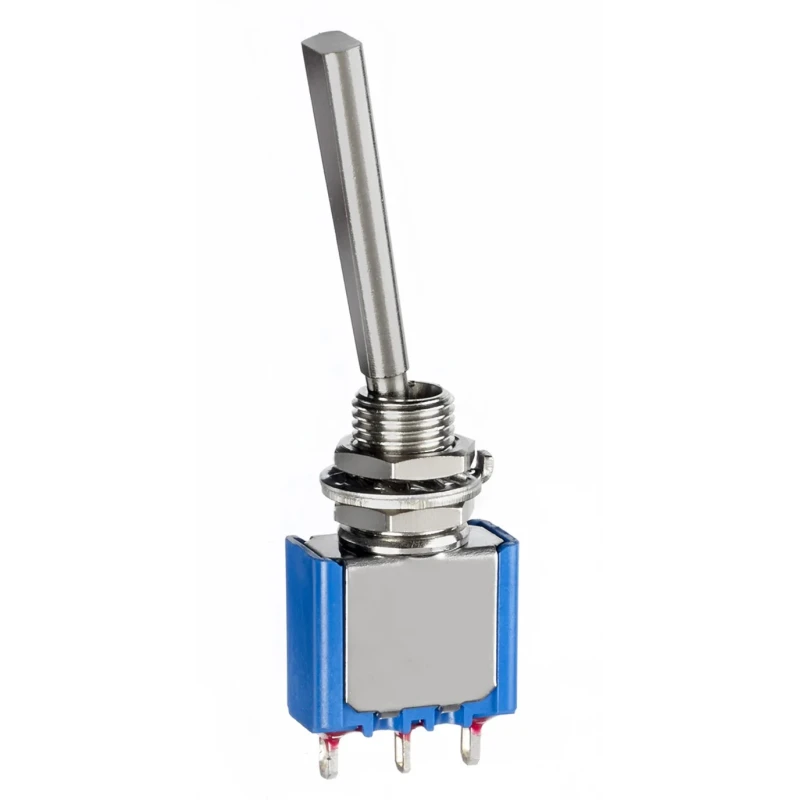

APEM Toggle Switch Panel Mount On-Off-On SPDT Solder Lug Terminal 30 V DC 250 V AC 5637AB-8

Free Delivery in India | Lowest Global Shipping Charges

APEM Toggle Switch Panel Mount On-Off-On SPDT Solder Lug Terminal 30 V DC 250 V AC 5637AB-8

Name: APEM Toggle Switch Panel Mount On-Off-On SPDT Solder Lug Terminal 30 V DC 250 V AC 5637AB-8
Brand: APEM
SKU: 81113
Price: 13.28 USD
Availability: InStock



Category Toggle Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Model	5637AB-8
Mount Type	Panel
Series	5000
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	SPDT, 3PDT, 4PDT, DPDT
Minimum Operating Temperature	-40°C
Panel Cutout Size	6.5 mm
Terminal type	Solder Lug
Standards/Approvals	cULus, CSA, VDE, UL, CECC 96201-007
Switch Operation	On-Off-On
Actuator Length	21.3mm
Contact DC Voltage	30V dc
Switch Contact Current	4A
Contact AC Voltage	250V ac
Actuator Material	Chrome Plated Brass

Key Features

Single Pole Double Throw (SPDT) configuration provides versatile switching options.
Panel mount design suitable for electrical installations and control panels.
Operates in On-Off-On positions making it ideal for circuit control or device selection.
Solder lug terminals allow secure and reliable wiring connections.
Supports up to 30 V DC and 250 V AC for broad industrial and commercial use.
Rated for 4A switch contact current to handle moderate loads.
Chrome plated brass actuator enhances durability and offers precision switching.
Cutout size of 6.5 mm allows for easy installation in standard panel apertures.

Product Description

APEM 5637AB-8 Toggle Switch is a high-quality electrical component designed for reliable performance in a wide range of control and switching applications. Featuring a single pole double throw (SPDT) configuration, this switch provides both On-Off-On operation, making it suitable for switching between two circuits or states. The panel mount design ensures compatibility with standard control panels and cabinets, while solder lug terminals guarantee secure and straightforward wiring.

With rated voltages of up to 30 V DC and 250 V AC and a 4A contact current, the switch is versatile enough for industrial, commercial, and laboratory use. The chrome plated brass actuator is robust and delivers smooth actuation between positions. The device fits into a 6.5 mm panel cutout, allowing for easy integration into electrical assemblies. The actuator length is 21.3 mm, supporting ergonomic operation without compromise on mechanical integrity.

APEM's 5637AB-8 toggle switch is non-illuminated, supporting dedicated circuit functions where indicator illumination is not required. It is engineered for reliable switching over a wide temperature range, with a minimum operating temperature of -40°C and a maximum up to 85°C, suitable for harsh environments such as industrial machinery, automation panels, HVAC controls, and laboratory setups.

The switch complies with significant international standards including cULus, CSA, VDE, UL, and CECC 96201-007, ensuring global acceptance and safety for professional installations. Various series and actuator lengths provide further adaptability, making this device an ideal choice where robust switching, reliability, and compliance are critical. The solder lug terminals also offer compatibility with varied wire types and installations.

Industrial use cases include machine controls, instrumentation panels, process automation equipment, test benches, power distribution circuits, and commercial systems requiring secure and repeatable manual switching.

Browse the full APEM range and explore related Toggle Switches for specialized control and switching requirements on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The toggle switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching options between two circuits or states.

It supports a contact DC voltage of up to 30 V and an AC voltage of up to 250 V, making it suitable for a variety of applications.

This model is rated for a switch contact current of 4A, enabling it to handle moderate electrical loads.

The required panel cutout size for this toggle switch is 6.5 mm, allowing for easy installation in standard panel apertures.

The actuator is made of chrome plated brass, which enhances durability and provides smooth actuation between positions.

It operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.

This model complies with several international standards, including cULus, CSA, VDE, UL, and CECC 96201-007, ensuring safety and global acceptance.

It features solder lug terminals, which allow for secure and reliable wiring connections.

The actuator length is 21.3 mm, supporting ergonomic operation without compromising mechanical integrity.

This switch is suitable for various applications, including machine controls, instrumentation panels, process automation equipment, and HVAC controls.

It is designed for panel mounting, ensuring compatibility with standard control panels and cabinets.

In addition to SPDT, this switch is available in various configurations including 3PDT, 4PDT, and DPDT, providing options for different switching needs.
