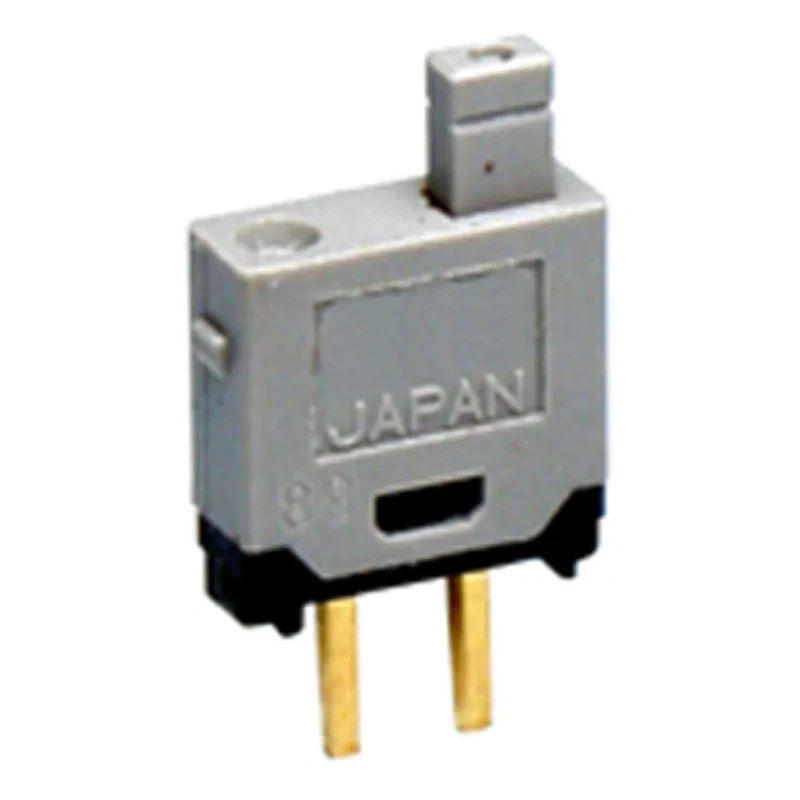

NKK Switches GB2 Series Momentary Push Button Switch Through Hole SPST 28V DC 28V AC GB215AP
Specifications
| Country of Origin | China |
|---|---|
| Brand | NKK Switches |
| Model | GB215AP |
| Mount Type | Through Hole |
| Series | GB2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | PC Pin |
| Standards/Approvals | UL 94 V-0 |
| Switch Operation | Momentary |
| Contact DC Voltage | 28V dc |
| Actuator Style | Rectangular |
| Switch Contact Current | 100mA |
| Contact AC Voltage | 28V ac |
Key Features
- Momentary switch operation suitable for temporary activation.
- Through hole mount type ensures secure PCB installation.
- Single Pole Single Throw (SPST) contact configuration.
- Compatible with 28V DC and 28V AC contact voltage ratings.
- Rectangular actuator style designed for ergonomic use.
- Switch contact current rated at 100mA for low power applications.
- Operating temperature range from -25°C to 70°C for various environments.
- Epoxy sealed terminals provide enhanced durability and reliability.
Product Description
NKK Switches GB215AP is a compact, ultra-thin GB2 series momentary push button switch designed for through hole PCB mounting. It features a single pole single throw (SPST) switch configuration, ideal for use in low-voltage electrical and electronic equipment requiring momentary circuit activation. This push button switch is suitable for industrial, automation, and handheld electronic applications.
The device’s rectangular actuator style and epoxy sealed terminals offer reliable tactile feedback and protection against environmental factors. It operates safely within -25°C to 70°C temperature extremes and is designed to carry switch contact currents up to 100mA, supporting both 28V DC and 28V AC circuits.
The push button switch meets UL 94 V-0 standards for flame retardancy, ensuring safety under operational conditions. This makes it suitable for use in precision instrumentation, control panels, laboratory equipment, and automation systems.
The 2.54mm x 2.54mm terminal spacing and side-by-side block mounting enhance ease of integration into printed circuit boards, making it an ideal choice for various electrical engineering and manufacturing needs requiring reliable momentary switching.
Momentary switch operation suitable for temporary activation. Through hole mount type ensures secure PCB installation. Single Pole Single Throw (SPST) contact configuration. Compatible with 28V DC and 28V AC contact voltage ratings.
Rectangular actuator style designed for ergonomic use. Switch contact current rated at 100mA for low power applications. Operating temperature range from -25°C to 70°C for various environments. Epoxy sealed terminals provide enhanced durability and reliability.
Complies with UL 94 V-0 flammability standard for safety. Manufactured in China with consistent quality standards.
This push button switch is widely used in electronic controls, automation, laboratory instrumentation, and manufacturing systems. Its robust design and compliance with industrial safety standards ensure dependable performance in diverse environments.
Explore the full range of NKK Switches and various Push Button Switch solutions available at EnvMart to meet your precise electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GB215AP switch features a Single Pole Single Throw (SPST) contact configuration, suitable for momentary circuit activation.
This model operates safely within a temperature range of -25°C to 70°C, making it suitable for various environments.
The switch contact current for the GB215AP is rated at 100mA, which is appropriate for low power applications.
It is compatible with both 28V DC and 28V AC contact voltage ratings, allowing for versatile use in different electrical systems.
This switch utilizes a through hole mount type, ensuring secure installation on printed circuit boards (PCBs).
The switch complies with UL 94 V-0 standards for flame retardancy, ensuring safety during operation.
The actuator style of the GB215AP is rectangular, designed for ergonomic use and reliable tactile feedback.
The GB215AP features PC pin terminals, which enhance ease of integration into printed circuit boards.
This switch is suitable for use in industrial, automation, and handheld electronic applications, including control panels and laboratory equipment.
The GB215AP switch is manufactured in China, adhering to consistent quality standards.
It features epoxy sealed terminals that provide enhanced durability and reliability against environmental factors.
