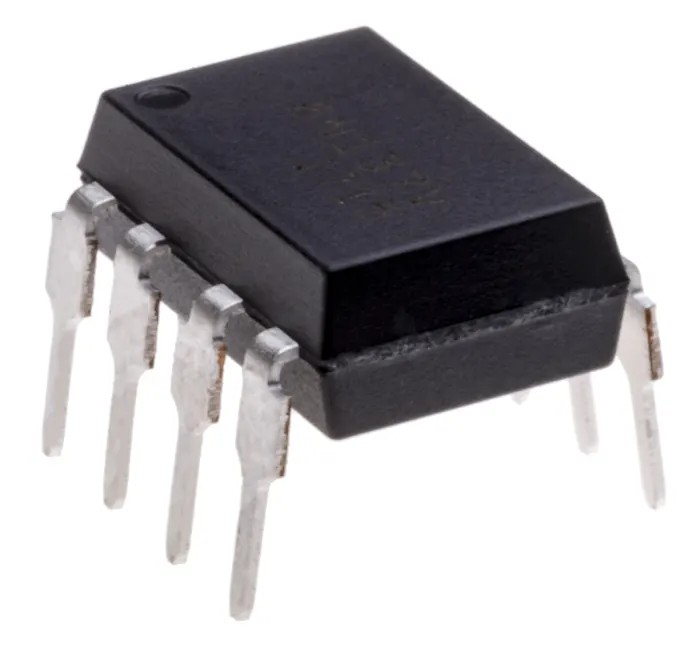

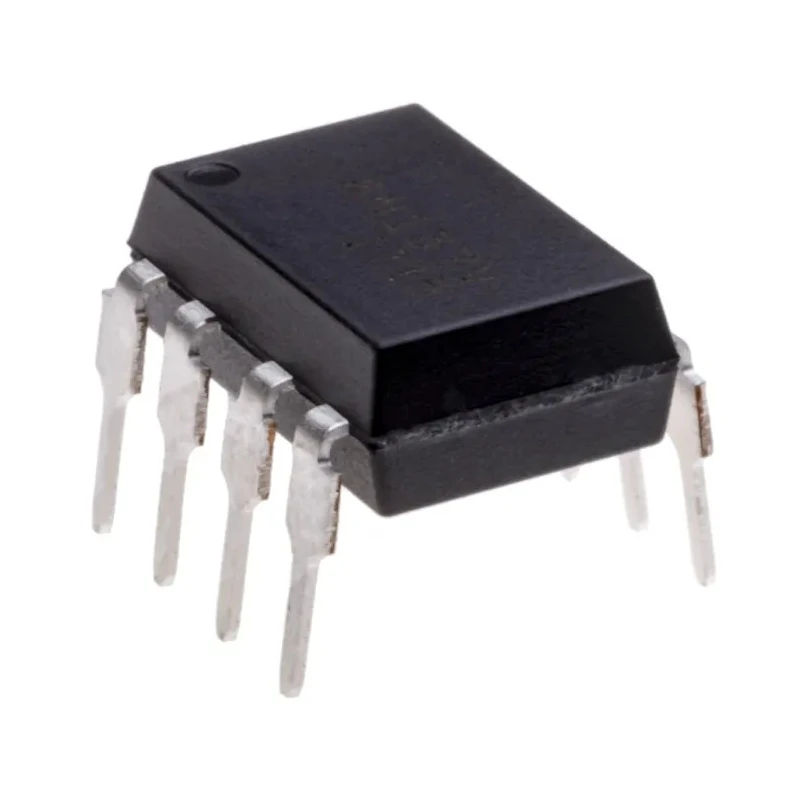

Isocom AC Input 2-Channel Optocoupler Through Hole 8-Pin DIP TIL198B

Isocom TIL198B AC Input 2-Channel Optocoupler is a reliable optically coupled isolator designed for signal transmission between systems operating at different potentials and impedances. Packaged in an 8-pin DIP through hole format, it incorporates infrared light emitting diodes and NPN silicon photo darlingtons to achieve electrical isolation and signal integrity.

This model supports AC input current type, with two channels allowing independent isolation in compact space. The optocoupler offers a high isolation voltage of 5300 Vrms ensuring robust protection against high voltage spikes in industrial, measurement, and computer terminal applications.

The device operates efficiently within a wide temperature range of -55°C to 100°C, making it suitable for demanding environments. It features a maximum forward voltage of 1.4V and can handle up to 50mA input current with a minimum current transfer ratio of 1500% and a maximum of 7500%, guaranteeing responsive and consistent performance.

Typical rise and fall times of 100 microseconds provide fast switching ability essential for control systems and industrial automation. The TIL198 series, including this TIL198B product, undergoes rigorous electrical parameter testing and meets UL standards for compliance and safety.

Widely used in signal transmission for industrial system controllers, measuring instruments, and computer terminals, this optocoupler supports effective isolation to prevent interference and damage caused by high voltages.

Thailand-manufactured, the Isocom TIL198B ensures international quality assurance. It ships in tubes for ease of handling and effective storage. Designed for AC input current type with 2 channels for versatile applications.

8-pin DIP package ensures compatibility with standard through hole PCB mounting. High isolation voltage rating of 5300 Vrms for electrical protection. Maximum operating temperature up to 100°C enables reliable performance in harsh environments.

Typical rise and fall times of 100 microseconds ensure rapid signal transmission. Maximum forward voltage of 1.4V and maximum input current of 50mA suitable for low power input designs. Complies with UL standards providing verified quality and safety.

Country of origin Thailand, assuring quality manufacturing. Explore more Optocouplers and electronic components to suit industrial, laboratory, and commercial applications at EnvMart.
