| Country of Origin | China |
|---|---|
| Brand | Lite-On |
| Dimensions | 3 x 1 mm |
| Model | LTST-S321KGKT |
| Mount Type | Surface |
| Series | LTST |
| Maximum forward current | 30mA |
| Viewing angle | 130 ° |
| Package Type | 1208 |
| Standards/Approvals | RoHS, ANSI/EIA 481-1-A-1994, EIA STD |
| LED Colour | Green |
| Dominant Wavelength | 576.5nm |
| Forward Voltage | 2.4V |
| Number of Pins | 2 |
| LED Luminosity | 18.0 to 71.0 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 3 x 1 x 2 mm |
| Lens Shape | Rectangular |

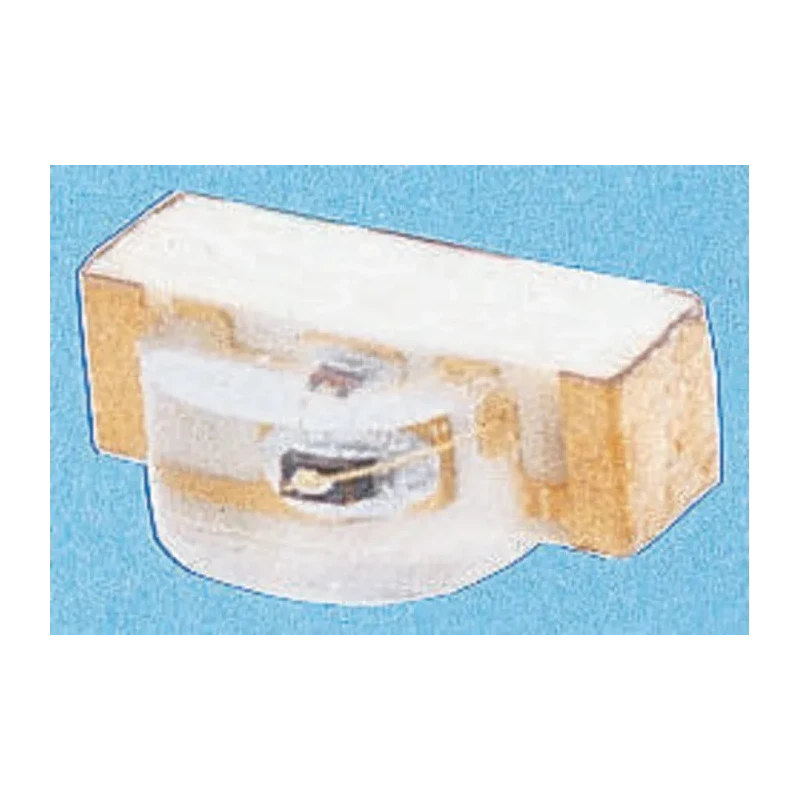

Lite-On LTST-S321KGKT is a high-quality green LED in the 1208 surface mount package, operating at 2.4 volts. The rectangular clear lens and side-view chip design offer an effective viewing angle of 130°, making it highly suitable for applications requiring bright and consistent illumination. It is engineered for efficient performance with a maximum forward current of 30mA and power dissipation up to 75mW.
This surface mount LED measures a compact 3 x 1 x 2 mm, enabling easy integration into electronic devices and displays, especially LCD backlighting. The LED provides luminance between 18.0 to 71.0 mcd, delivering clear green light with a dominant wavelength of 576.5 nm.
Compliant with RoHS and ANSI/EIA standards, the LTST-S321KGKT ensures environmental safety and industry-grade quality. It comes with two pins for stable connectivity. This LED is primarily used in electronic components, power connectors, LED displays, and optoelectronic circuits. The product is manufactured in China and is new.
This LED features a maximum forward current of 30mA. It dissipates a maximum power of 75mW for reliable performance. The component's viewing angle is 130 degrees for broad light emission. It has a clear lens finish with dimensions of 3 x 1 x 2 mm.
The LED luminosity ranges from 18.0 to 71.0 mcd for bright visibility. It is RoHS compliant and meets ANSI/EIA and EIA STD standards. Mount type is surface mount suitable for efficient PCB integration. This LED is ideal for LCD backlight and electronic display applications.
It uses 2 pins and operates with a forward voltage of 2.4 V. The dominant wavelength is 576.5 nm, ensuring green light emission.
Widely applied in industrial and commercial electronic manufacturing, this Lite-On LED provides dependable illumination with excellent brightness and efficiency. Browse more electronic components and LEDs at EnvMart for quality and performance assurance.
