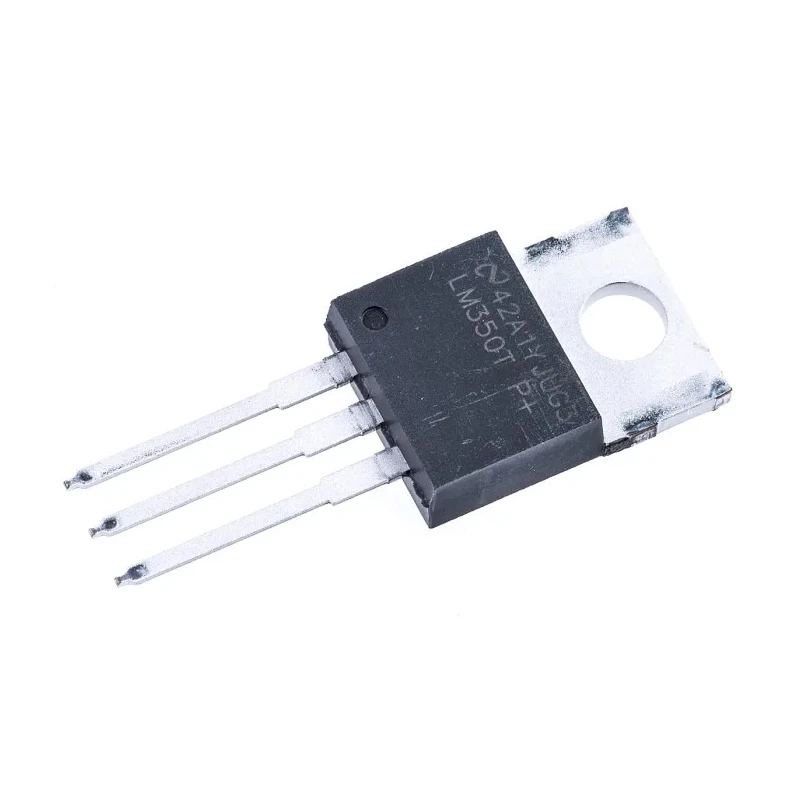

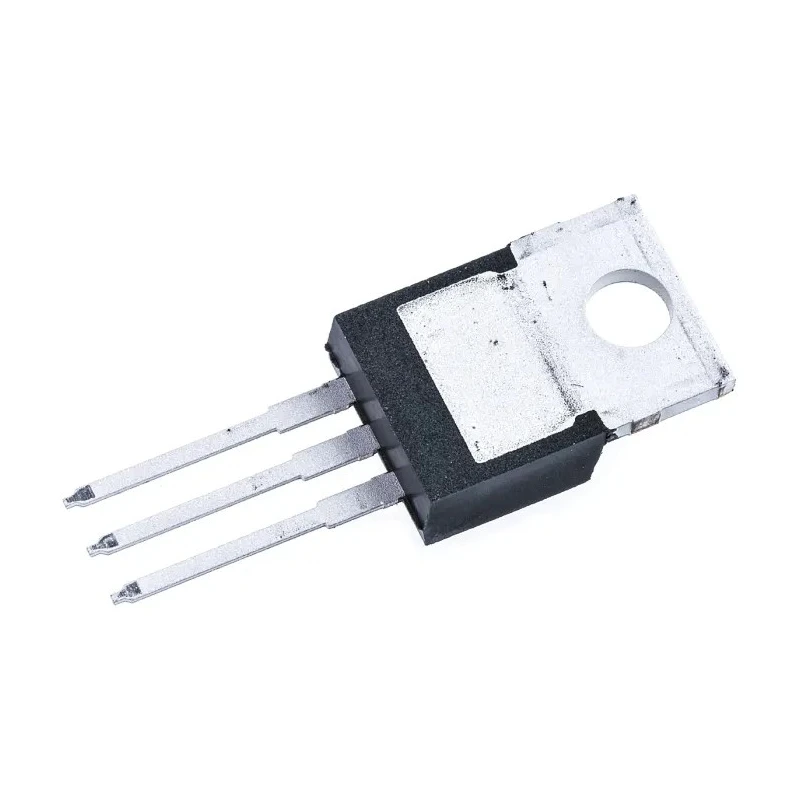

Texas Instruments Adjustable Linear Voltage Regulator 25W 35V TO-220 3-Pin LM350T/NOPB

Texas Instruments LM350T/NOPB adjustable linear voltage regulator is a versatile device designed for regulating output voltage with high precision and reliability. This positive polarity regulator supports output current of up to 3A and offers adjustable output voltage ranging from 1.2 V to 33 V, suitable for a wide variety of industrial and electronic applications.

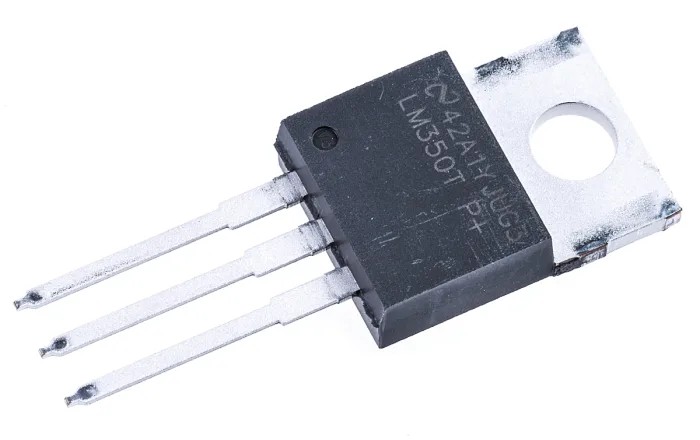

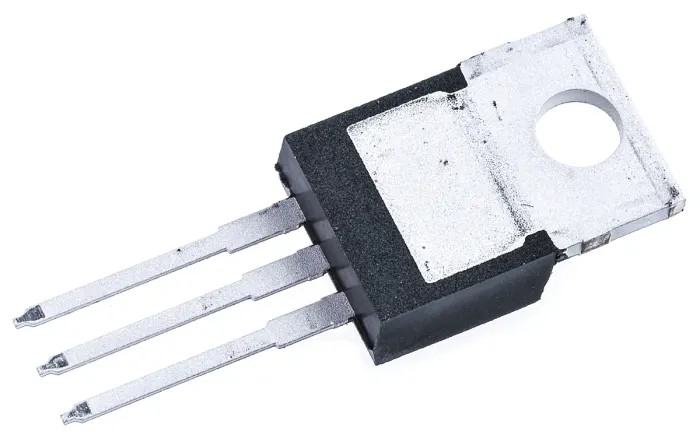

The device comes in a TO-220 package with 3 pins and is built for through hole mounting. Its compact dimensions of length 10.16 mm, height 8.89 mm, and width 4.7 mm make it suitable for integration into PCB designs where space is constrained. It features a quiescent current of 3.5 mA ensuring low power consumption when idle.

LM350T/NOPB ensures robust operation with short circuit protection, thermal regulation, and constant current limiting that adapts with temperature changes, helping to safeguard the circuit against overloads and overheating. The Voltage Regulator has an exceptional ripple rejection of 86 dB, reducing output voltage fluctuations, critical for sensitive electronic devices.

Line regulation is maintained at a precise 0.01% and load regulation at 0.3%, maintaining output stability under varying load and input voltage conditions. This device operates with a wide input voltage range from a minimum of 4.2 V to a maximum of 35 V, capable of sustaining up to 125°C operating temperature, therefore suitable for demanding industrial environments.

Typical applications include on-card voltage regulation, programmable output adjustment tasks, and precision current regulation by incorporating a fixed resistor between the adjustment and output terminals. Its reliability makes it ideal for electronic design, manufacturing, automation, and power supply projects, among others.

Provides thermal regulation to maintain stable operation. Includes short circuit protection for enhanced device safety. Constant current limit that adjusts with temperature variations. 86 dB ripple rejection for clean voltage output.

High output voltage tolerance with 1% accuracy. Line regulation at 0.01% and load regulation at 0.3% for voltage stability. Through hole mounting in a TO-220 3-pin package. Operates within 4.2 V to 35 V input voltage range.

Supports 25W power rating with maximum operating temperature of 125°C. Explore the full range of Texas Instruments power management ICs on EnvMart for your industrial and electronic component needs.
