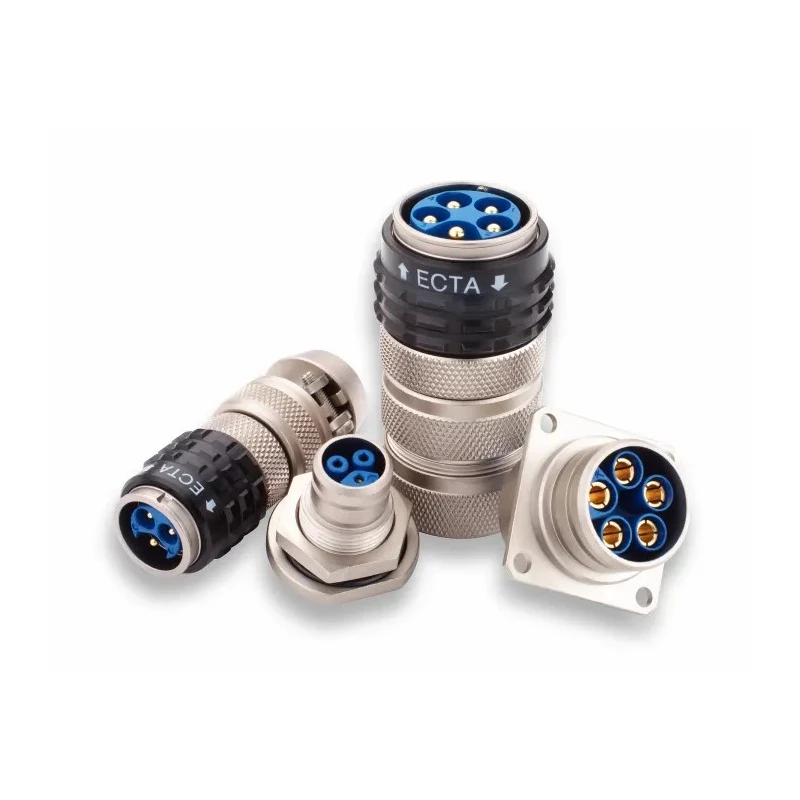

Amphenol Air LB Circular Connector 2 Contacts Push Pull Socket Female IP66 IP67 ECTA 133 1331E303FZ

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Air LB Circular Connector 2 Contacts Push Pull Socket Female IP66 IP67 ECTA 133 1331E303FZ

Name: Amphenol Air LB Circular Connector 2 Contacts Push Pull Socket Female IP66 IP67 ECTA 133 1331E303FZ
Brand: Amphenol Air LB
SKU: 172210
Price: 181.43 USD
Availability: InStock



Category Industrial Circular Connector Brand Amphenol Air LB Condition New

Specifications

Country of Origin	Germany
Voltage	1000V
Brand	Amphenol Air LB
Orientation	Straight
Current	40A
Model	1331E303FZ
IP Rating	IP66, IP67
Mount Type	Push Pull
Housing Material	Metal
Contact Material	Copper
Series	ECTA 133
Termination Type	Push Pull
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Contact Plating	Gold over Nickel
Number of Contacts	2
Contact Gender	Female
Shell Size	3 mm
Mating Type	Push Pull
Connector Size	Standard
Plug/Socket	Socket

Key Features

The connector features a robust metal housing for excellent durability.
It supports a maximum current of 40A for high power applications.
Gold over nickel plated copper contacts ensure reliable conductivity and corrosion resistance.
Designed for temperatures ranging from -40°C to 125°C for broad environmental compatibility.
Mates with standard ECTA 133 series connectors using push-pull locking.
Provides IP66 and IP67 ingress protection for dust and water resistance.
The shell size is 3 mm with straight orientation for versatile mounting.
Rated for operating voltage up to 1000V suitable for industrial power connectors.

Product Description

Amphenol Air LB model 1331E303FZ is a high-performance Circular Connector featuring 2 female contacts in a socket configuration. This standard size connector uses a push-pull mounting system and belongs to the ECTA 133 series, providing secure connections in industrial environments. It is rated for a current of 40A and voltage up to 1000V, making it suitable for demanding electronic components and power connector applications.

The connector housing is made from metal, designed to withstand harsh conditions with IP66 and IP67 ingress protection ratings, ensuring excellent dust and water resistance. Its contacts are crafted from copper with a nickel barrier layer and gold plating for enhanced conductivity and corrosion resistance.

Operating temperature ranges from -40°C to 125°C allow this connector to be used reliably in wide environmental conditions. The push-pull termination provides fast and secure mating with up to 1000 mating cycles for durability and repeated use in industrial, manufacturing, laboratory, and HVAC applications.

The shell size measures 3 mm and features a straight orientation, facilitating straightforward installation in various assemblies. This connector is ideal for electrical and power distribution systems requiring robust, reliable connections with protection against environmental ingress.

The connector is part of the ECTA 133 series designed for industrial circular connection needs. Push-pull locking system ensures secure and rapid connection and disconnection. Gold over nickel plating enhances contact quality and longevity.

Metal housing material adds mechanical strength and protection. Rated for 40A current and 1000V voltage operation. IP66 and IP67 rated for protection against dust and water ingress. Temperature tolerance ranges from -40°C to 125°C for broad environmental resilience.

Suitable for applications in industrial, laboratory, manufacturing, HVAC, and power sectors. Explore the full range of Industrial Circular Connectors on EnvMart for expert solutions in electronic and electrical component connectivity.
