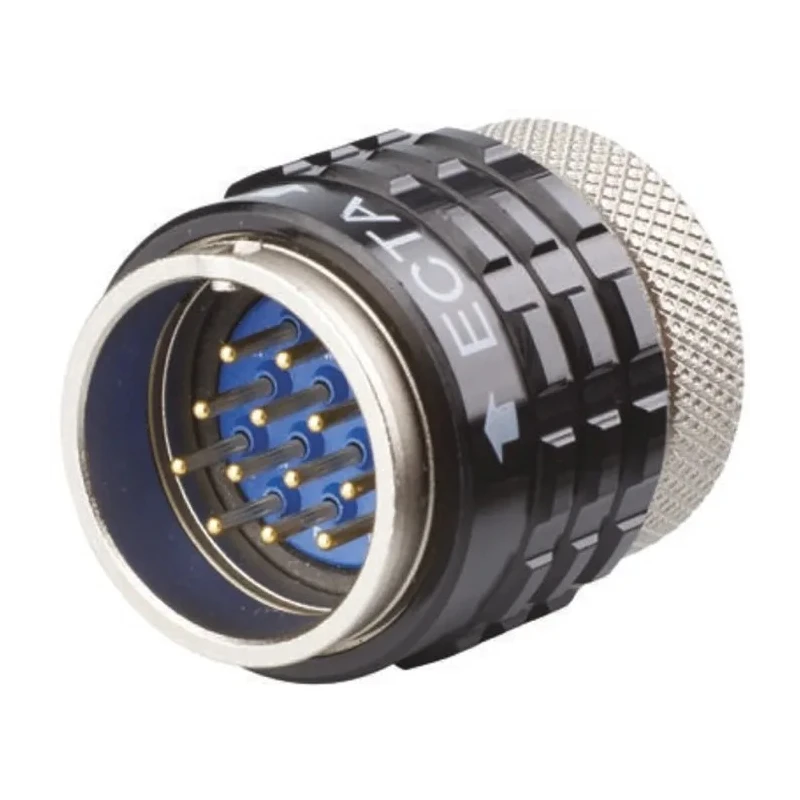

Amphenol Air LB Circular Connector 5 Contacts Cable Plug Male IP66 IP67 ECTA 133 Series 1331 M 405 MZ

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Air LB Circular Connector 5 Contacts Cable Plug Male IP66 IP67 ECTA 133 Series 1331 M 405 MZ

Name: Amphenol Air LB Circular Connector 5 Contacts Cable Plug Male IP66 IP67 ECTA 133 Series 1331 M 405 MZ
Brand: Amphenol Air LB
SKU: 212737
Price: 180.64 USD
Availability: InStock



Category Industrial Circular Connector Brand Amphenol Air LB Condition New

Specifications

Country of Origin	Germany
Voltage	1kV
Brand	Amphenol Air LB
Orientation	Straight
Current	40A
Model	1331 M 405 MZ
IP Rating	IP66, IP67
Mount Type	Cable
Housing Material	Metal
Contact Material	Copper
Series	ECTA 133
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Contact Plating	Gold over Nickel
Number of Contacts	5
Contact Gender	Male
Shell Size	4
Mating Type	Push Pull
Connector Size	Standard
Plug/Socket	Plug

Key Features

This connector offers a current rating of 40A for reliable power connections.
It features a straight orientation and a standard shell size 4 metal housing.
The contacts are copper alloy plated gold over nickel to ensure excellent conductivity and corrosion resistance.
Designed for solder termination and push-pull mating type for secure connections.
Operates safely in temperature ranges from -40°C to 125°C.
It is part of the ECTA 133 series of industrial connectors.
Manufactured in Germany to high-quality standards.

Product Description

Amphenol Air LB 1331 M 405 MZ circular connector is a high-performance industrial cable plug with 5 contacts, designed for demanding electronic and power connector applications. The connector is constructed with a robust metal housing and features gold-over-nickel plated copper alloy contacts, providing excellent electrical conductivity and corrosion resistance essential for industrial environments.

Rated IP66 and IP67, this connector offers protection against dust ingress and water immersion, making it suitable for harsh and outdoor environments. It operates within a wide temperature range from -40°C to 125°C, ensuring reliable performance in extreme conditions.

The 1331 M 405 MZ model supports a current rating of 40A at a voltage of 1kV, suitable for power distribution and control systems. The connector has a straight orientation with a standard shell size 4 and employs a push-pull mating mechanism for secure and quick connections. It also requires a backshell for full assembly.

This connector series complies with industry standards, supporting solder termination for cable connection. It is typically used in industrial automation, manufacturing equipment, HVAC controls, and electronic test and measurement applications.

This connector offers a current rating of 40A for reliable power connections. It features a straight orientation and a standard shell size 4 metal housing. The contacts are copper alloy plated gold over nickel to ensure excellent conductivity and corrosion resistance.

Designed for solder termination and push-pull mating type for secure connections. Operates safely in temperature ranges from -40°C to 125°C. It is part of the ECTA 133 series of industrial connectors. Manufactured in Germany to high-quality standards.

This Amphenol Air LB circular connector is an optimal choice for industrial circular connector needs, combining durability, reliability, and ease of use. Explore the full range of Industrial Circular Connectors for compatible accessories and alternative models on EnvMart.
