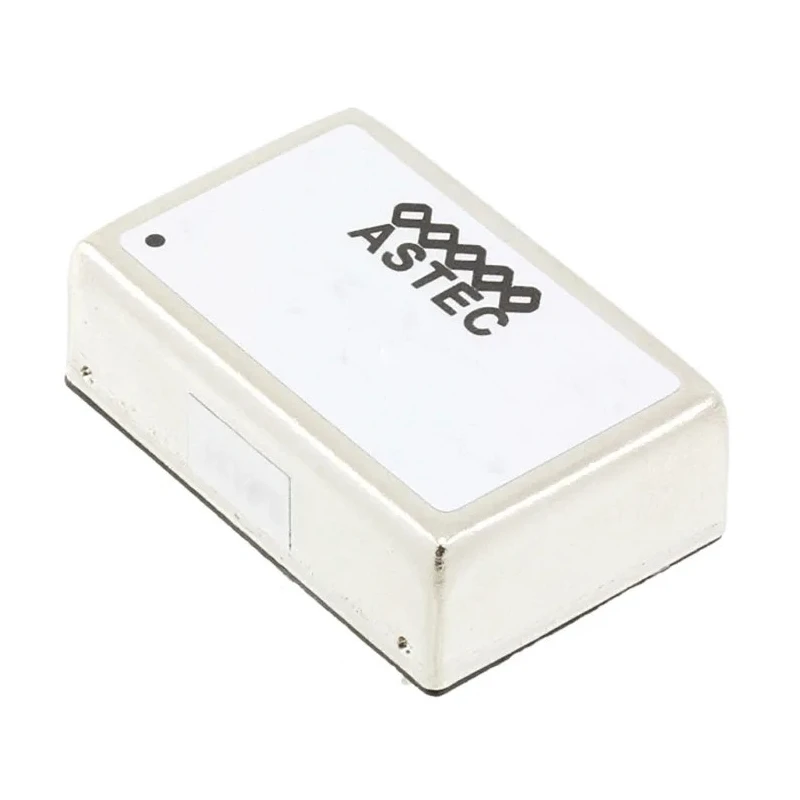

Artesyn / Advanced Energy ASA DC/DC Converter 12V dc 250 mA 36V dc Input 9V Input 6W Through Hole DIP Package ASA00BB18-LS

Artesyn / Advanced Energy ASA00BB18-LS DC/DC Converter is a high-quality power supply solution designed for electronic systems requiring stable and isolated DC voltages. Delivering regulated 12V dc output at 250 mA, this 6W converter supports a broad input voltage range from 9V to 36V dc, accommodating diverse power sources.

This device features dual isolated outputs with 1.5 kV input/output isolation, enhancing system safety. Its 24-pin DIP through hole mount package ensures easy PCB integration and robust mechanical stability. The compact size of 31.75 mm length and 10.16 mm depth fits space-constrained electronics.

The ASA-6W series converter boasts high efficiency at 81%, minimizing energy losses and heat generation. It includes built-in protections such as under voltage lockout, over current, and short circuit auto restart, ensuring reliable operation under stress conditions.

Operating within a wide temperature range from -40°C to 71°C without derating, this converter suits industrial, medical, and telecommunication applications that require stable power in harsh environments. The shielded metal case with insulated baseplate aids in noise reduction and electrical isolation.

Certifications include UL60950-1, cUL60950-1, EN60950, IEC60950 standards, and CE mark compliance, confirming adherence to international safety and performance requirements. Provides isolated dual outputs with 1.5 kV dc isolation voltage.

Wide input voltage range of 9V to 36V dc for flexible applications. Compact 24-pin DIP package mount type with through hole installation. Efficiency rating of 81% for optimized power usage. Long mean time between failure (MTBF) of 1,000,000 hours ensures durability.

Built-in protections including under voltage lockout and auto restart on fault. Operating temperature range from -40°C to 71°C without derating. Shielded metal case with insulated baseplate for safety and EMI reduction. Complies with UL60950-1, cUL60950-1, EN60950, IEC60950, and CE markings.

This DC/DC Converter is ideal for use in industrial control, telecommunications, instrumentation, test and measurement equipment, and medical devices requiring regulated, isolated power supplies. Its robust construction and protective features allow reliable operation in demanding environments.
