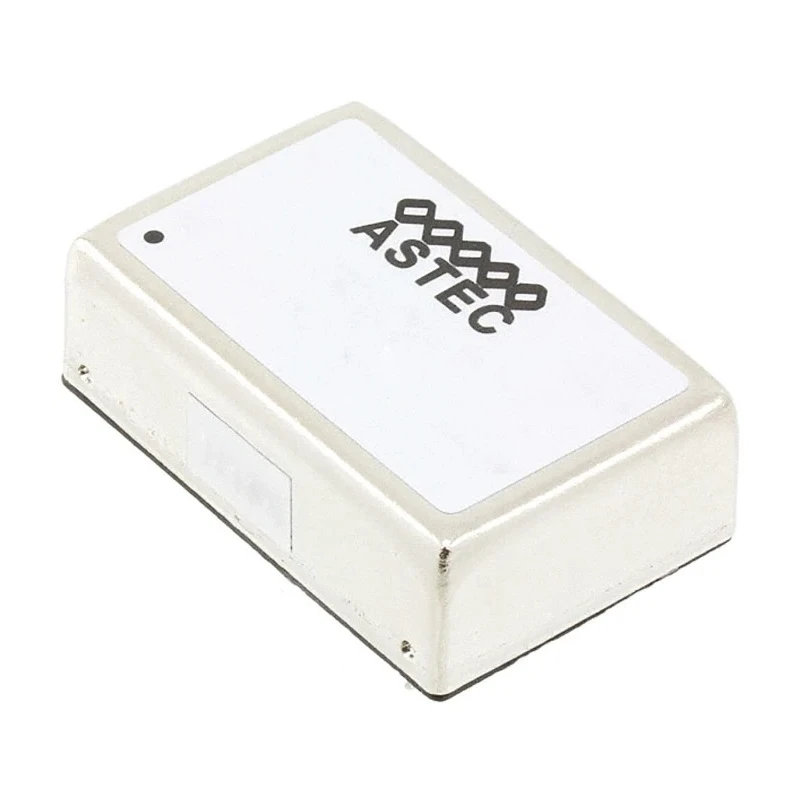

Artesyn / Advanced Energy ASA DC/DC Converter, Dual Output 5V/500mA and -5V/500mA, 9V-36V Input, 5W Through ASA00AA18-LS

Artesyn / Advanced Energy ASA00AA18-LS is a dual output DC/DC converter designed for industrial and electronic applications. It offers regulated outputs of +5V at 500mA and -5V at 500mA, capable of accepting input voltages in the range of 9V dc to 36V dc. This converter features a through-hole DIP package, making it suitable for easy integration and replacement on printed circuit boards.

The converter provides up to 5 watts of output power with high efficiency at 81%, thus reducing energy loss and enhancing system reliability. Isolation voltage of 1.5kV dc ensures proper electrical separation between input and output, suitable for noise sensitive and safety-critical systems.

It operates reliably over a wide temperature range from -40°C to +71°C, designed for demanding industrial environments. Built-in protections against undervoltage, overcurrent, and short circuit conditions with automatic restart contribute to the safety and durability of the device.

The compact 24-pin DIP package measures 31.75mm in length and 10.16mm in depth, facilitating installation in space-constrained assemblies. The product complies with stringent international safety standards including UL60950-1, cUL60950-1, EN60950, IEC60950, and carries a CE mark.

Dual regulated outputs at +5V/500mA and -5V/500mA. Wide 4:1 input voltage range from 9V to 36V dc. Isolation voltage rated at 1.5kV dc for electrical safety. Built-in protections for undervoltage, overcurrent, and short circuit with auto restart.

Efficiency rating of 81% to optimize power usage. Operating temperature range from -40°C to 71°C suitable for harsh environments. Compact 24-pin DIP through-hole package dimensions (31.75mm x 10.16mm). Meets international safety standards including UL, cUL, EN, IEC, and CE certifications.

This DC/DC Converter is ideal for applications in industrial equipment, telecommunications, computer peripherals, and embedded systems requiring reliable isolated power supplies. Its robust design guarantees long operational life with demonstrated MTBF exceeding one million hours.
