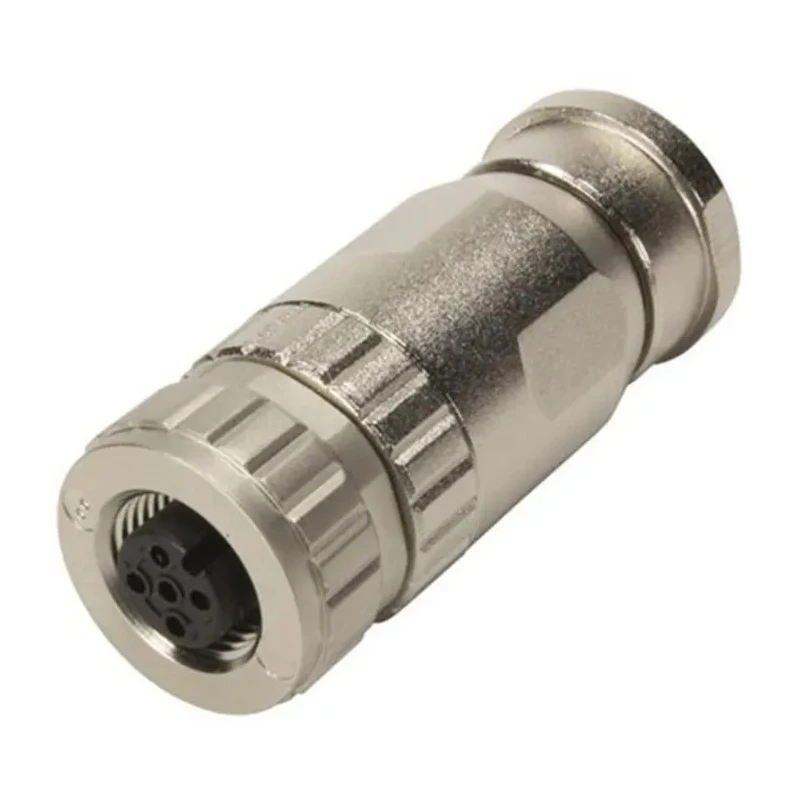

HARTING Industrial Circular Connector, 4 Contacts, Cable Mount, M12 Socket Female, IP67, D-Coded, 7.5A, 250V 21033892402

Free Delivery in India | Lowest Global Shipping Charges

HARTING Industrial Circular Connector, 4 Contacts, Cable Mount, M12 Socket Female, IP67, D-Coded, 7.5A, 250V 21033892402

Name: HARTING Industrial Circular Connector, 4 Contacts, Cable Mount, M12 Socket Female, IP67, D-Coded, 7.5A, 250V 21033892402
Brand: HARTING
SKU: 141060
Price: 37.17 USD
Availability: InStock



Category Industrial Circular Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	HARTING
Orientation	Straight
Current	7.5A
IP Rating	IP67
Mount Type	Cable
Housing Material	Die Cast Zinc
Contact Material	Brass
Series	M12
Termination Type	Screw
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Pole Format	4
Contact Plating	Gold over Nickel
Number of Contacts	4
Contact Gender	Female
Shell Size	20 mm
Mating Type	Screw-On
Connector Size	M12
Plug/Socket	Socket
Coding	D

Key Features

Features D-Coding suitable for factory automation and process control.
Rated for current of 7.5 amperes and voltage of 250 volts.
Provides IP67 ingress protection ensuring resistance to dust and water.
Constructed with die cast zinc housing for enhanced durability.
Utilizes gold over nickel plated brass contacts for reliable conductivity.
Designed for screw termination and screw-on mating type.
Operates reliably between -30°C and 85°C temperature range.
Shell size measures 20 mm with straight orientation.

Product Description

HARTING 21033892402 Industrial Circular Connector is a robust M12 series cable mount socket connector featuring 4 female contacts. It is engineered for industrial applications demanding secure and durable connectivity, such as factory automation, process control, and commercial electronics.

The connector is D-Coded to ensure reliable data transmission and compatibility with relevant systems. It supports a current rating of 7.5A and a voltage rating of 250V, making it suitable for various industrial electrical needs.

Encased in a die cast zinc housing, the product offers excellent mechanical strength and resistance to harsh environmental conditions. The IP67 ingress protection rating certifies the connector's ability to resist dust ingress and water immersion, thereby guaranteeing operational reliability in challenging settings.

The contacts are made of brass with gold over nickel plating, enhancing conductivity while ensuring corrosion resistance. Termination is by screw type, and the mating connection employs a screw-on mechanism for secure attachment.

Designed with a straight orientation and a shell size of 20 mm, this connector fits standard M12 mounting dimensions. It operates effectively within a temperature range from -30°C to 85°C.

Features D-Coding suitable for factory automation and process control. Rated for current of 7.5 amperes and voltage of 250 volts. Provides IP67 ingress protection ensuring resistance to dust and water. Constructed with die cast zinc housing for enhanced durability.

Utilizes gold over nickel plated brass contacts for reliable conductivity. Designed for screw termination and screw-on mating type. Operates reliably between -30°C and 85°C temperature range. Shell size measures 20 mm with straight orientation.

This connector is ideal for demanding industrial environments including manufacturing, process automation, and harsh outdoor installations requiring high ingress protection and mechanical robustness.

Explore more Industrial Circular Connectors and other power connectors on EnvMart for your industrial and commercial connectivity needs.
