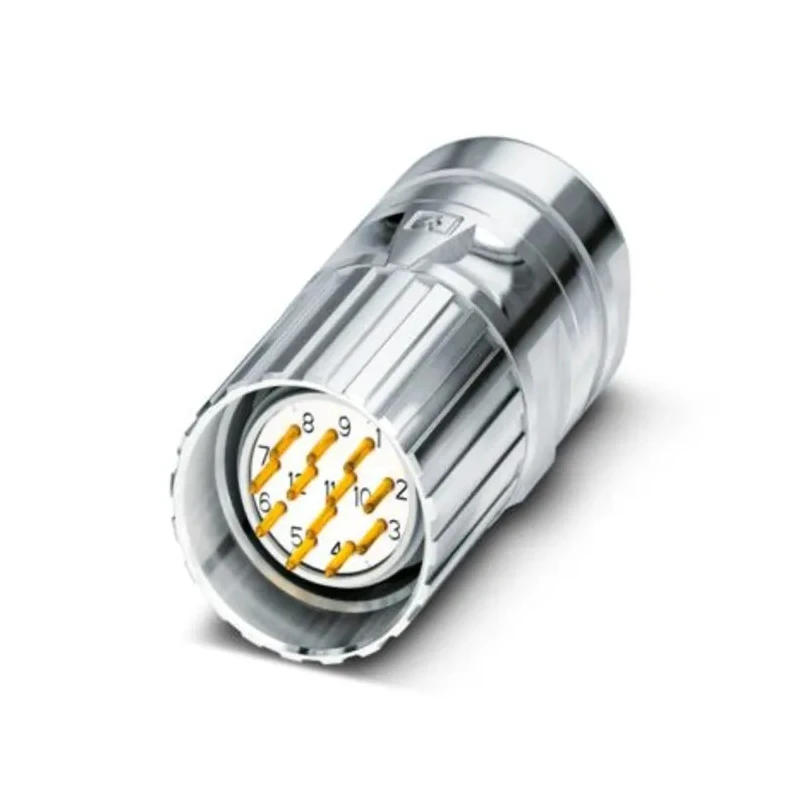

Phoenix Contact Industrial Circular Connector Cable Mount, 12 Contacts, Male Plug, M23, IP67, Solder Termination 1619709

Phoenix Contact 1619709 is a robust industrial circular connector designed for cable mounting applications requiring secure, reliable electrical connections in demanding environments. This male plug connector features 12 contacts and a metal M23 shell size ensuring durability and resistance to mechanical stress.

With an IP67 rating, it offers full protection against dust ingress and water immersion, allowing use in harsh outdoor and industrial settings. The connector supports currents up to 10A and voltages up to 150V, meeting typical industrial automation requirements.

Manufactured using high-quality copper zinc alloy and die cast zinc materials for enhanced mechanical strength, the contacts are plated with a nickel gold alloy to provide excellent conductivity and corrosion resistance. The solder termination ensures a secure, permanent electrical connection, minimizing the risk of loosening under vibration or movement.

Operating reliably from -40°C to 125°C, this connector suits environments with wide temperature variations without sacrificing electrical performance. Its straight orientation with N-coded mating type leads to easy and accurate coupling with compatible counterparts.

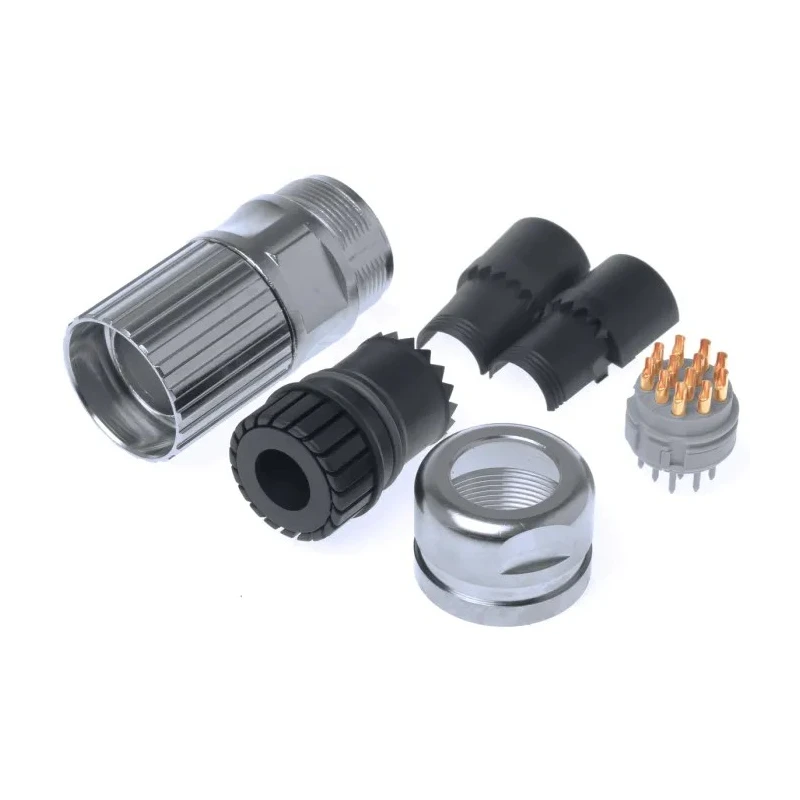

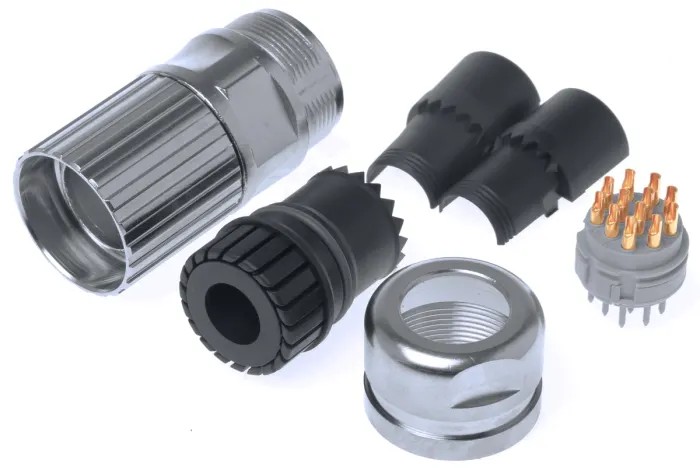

The connector accommodates cables with diameters ranging from 6mm to 10mm, providing installation flexibility in various industrial assemblies. The CA-12P series includes strain relief and precise screw locking mechanisms to maintain connection stability and protect against disconnection risks.

Commonly employed in automation system sensors, mechanical equipment electrical assemblies, and industrial power distribution networks, the Phoenix Contact 1619709 connector ensures dependable electrical performance in challenging applications and environments.

Rated for 10A current and 150V voltage for reliable operation. Constructed with durable copper zinc alloy and die cast zinc housing. Nickel gold alloy plated CuZn contacts ensure excellent conductivity and corrosion resistance.

Solder termination type for secure and permanent cable connection. IP67 rating provides dust-tight and waterproof protection suitable for outdoor use. Operates reliably between -40°C and 125°C in extreme temperature environments.

Straight orientation with N coded mating type and screw locking mechanism. Compatible with cable diameters from 6mm to 10mm for flexible installations. Ideal for use in automation sensor connections, electrical assemblies, and industrial power distribution.

Explore the full range of Industrial Circular Connectors at EnvMart for tailored solutions to your electrical connectivity needs.
