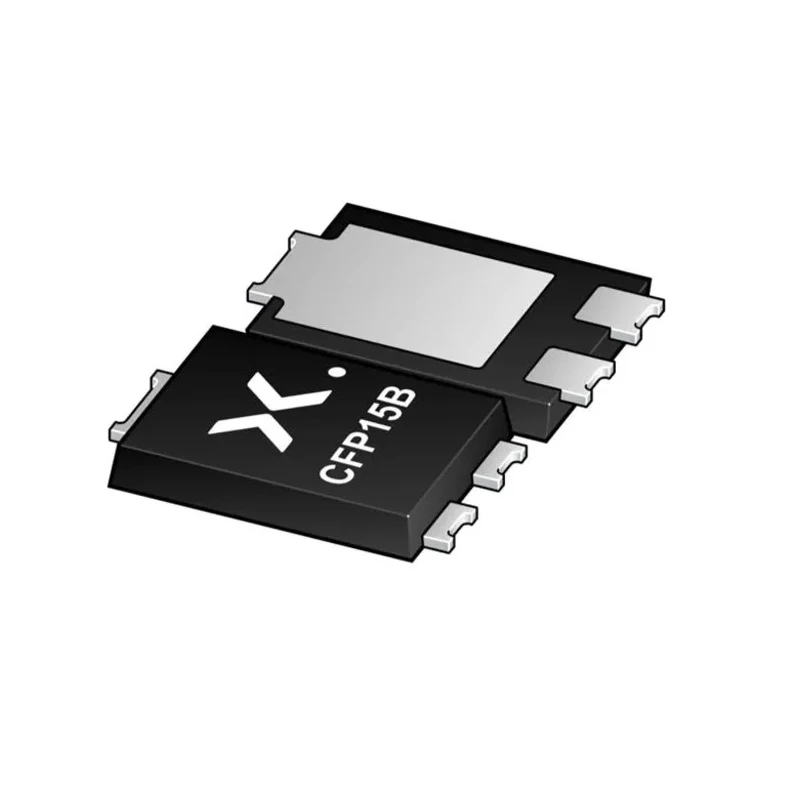

Nexperia Schottky Barrier Rectifier, 100 V, 10 A, Trench MEGA, 3-Pin CFP15B PMEG100T100ELPEZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PMEG100T100ELPEZ |
| Mount Type | PCB |
| Series | PMEG100T100ELPE |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Trench MEGA Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A |
| Maximum Forward Voltage Vf | 810mV |
| Peak Reverse Recovery Time trr | 22ns |
Key Features
- Low forward voltage drop ensures high efficiency.
- Rated for 10 A continuous forward current and 100 V repetitive reverse voltage.
- 3-pin CFP15B surface mount package ideal for compact PCB designs.
- Trench MEGA Schottky technology for low leakage and low recovery time.
- Wide operating temperature range from -55°C to 175°C.
- Automotive qualified to AEC-Q101 standard.
- High surge current capability up to 180 A.
Product Description
Nexperia PMEG100T100ELPEZ is a high performance Schottky barrier rectifier designed for demanding power applications. It features a maximum repetitive reverse voltage of 100 V and delivers up to 10 A continuous forward current, making it suitable for switch mode power supplies, DC-DC converters, and automotive LED lighting systems.
Utilizing advanced Trench MEGA Schottky technology, this diode offers low forward voltage and low leakage current, contributing to energy efficiency and high reliability in circuit protection and rectification tasks.
The device is packaged in a CFP15B (SOT1289B) surface mount form factor, featuring three pins for versatile PCB integration. Clip-bonding technology enhances power handling while the plastic package ensures easy surface mounting and mechanical stability.
Low forward voltage drop for enhanced DC-DC conversion efficiency. High power capability due to innovative clip-bonding package. Small and flat lead SMD power plastic package optimizes PCB space usage. Peak non-repetitive forward surge current rated at 180 A for robust operation during power events.
Reverse recovery time of just 22 ns enables fast switching in power supplies and LED drivers. Optimized for automotive applications with AEC-Q101 compliance.
This Schottky barrier rectifier is widely used for freewheeling applications, reverse polarity protection, OR-ing in redundant systems, and high efficiency electronic designs in industrial, automotive, and commercial sectors.
Browse more Nexperia Schottky diodes and rectifiers on EnvMart to discover suitable components for your power conversion and circuit protection needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive reverse voltage of this rectifier is 100 V.
This model is rated for a continuous forward current of 10 A.
It comes in a CFP15B surface mount package, which is suitable for compact PCB designs.
The peak non-repetitive forward surge current is rated at 180 A.
The operating temperature range is from -55°C to 175°C.
It is automotive qualified to the AEC-Q101 standard.
The reverse recovery time is 22 ns, enabling fast switching in power supplies.
This rectifier features a 3-pin configuration.
The maximum forward voltage drop is 810 mV.
It is suitable for applications such as switch mode power supplies, DC-DC converters, and automotive LED lighting systems.
This model is a Trench MEGA Schottky rectifier, designed for high efficiency and low leakage.
The country of origin for this rectifier is India.
