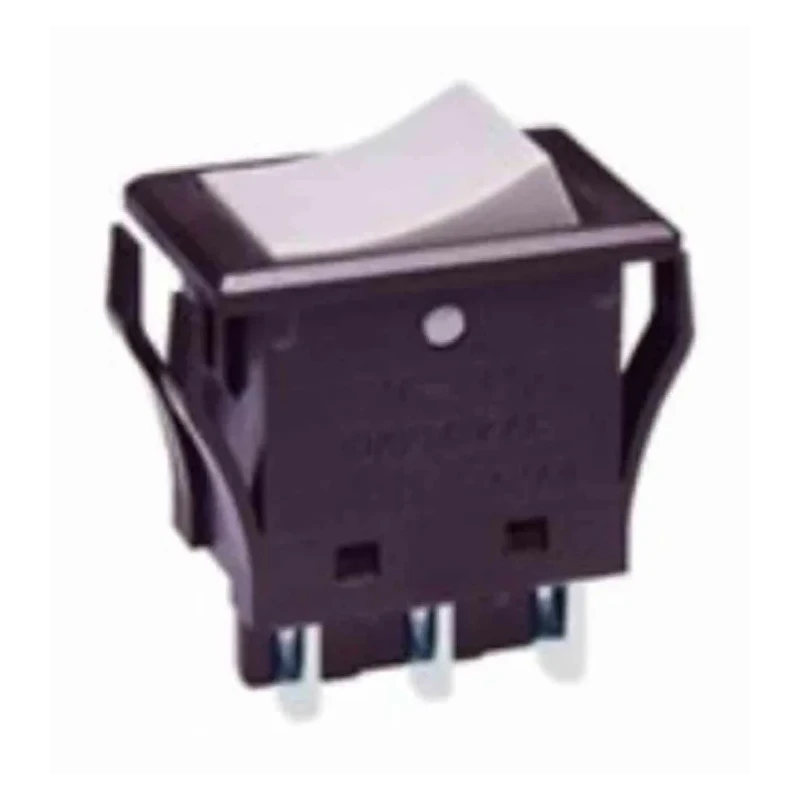

NKK Switches DPST On-On On-On Grey Polyamide Panel Mount Rocker Switch JWM22RHA
Specifications
| Country of Origin | China |
|---|---|
| Brand | NKK Switches |
| Model | JWM22RHA |
| IP Rating | IP67 |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | JWL |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -10°C |
| Panel Cutout Size | 24 x 15.4 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | IEC, UL |
| Switch Operation | On-On |
| Actuator Colour | Grey |
| Contact DC Voltage | 72V dc |
| Actuator Style | Rectangular |
| Switch Contact Current | 10A |
| Mechanical Life | 25000Operations |
| Contact AC Voltage | 250V ac |
| Legend | I/O |
| Legend Text Colour | White |
Key Features
- Features DPST contact configuration with On-On operation.
- Durable grey polyamide housing for enhanced insulation.
- Panel cutout size is 24 x 15.4 mm for compact installation.
- Supports switch contact current of 10 A with a mechanical life of 25,000 operations.
- Rated for contact DC voltage of 72 V and AC voltage of 250 V.
- Equipped with quick connect brass terminals plated with silver.
- IP67 rated for superior dust and water resistance.
- Operating temperature range from -10°C to 70°C suitable for diverse environments.
Product Description
NKK Switches JWM22RHA is a robust DPST On-On On-On rocker switch designed for panel mounting in electrical control systems. Featuring a grey polyamide housing and a rectangular actuator style, it provides efficient switching with excellent electrical and mechanical durability.
This switch supports a contact current of 10 A and is rated for DC voltage up to 72 V and AC voltage up to 250 V. The quick connect brass terminals plated with silver ensure reliable and corrosion-resistant electrical connections. Designed with prominent external insulating barriers, the switch enhances insulation resistance and dielectric strength for safe operation.
The JWM22RHA model is constructed to minimize contact bounce and break light contact welds, extending electrical life. Its IP67 rating confirms dust tightness and protection against water immersion, enabling use in demanding industrial, manufacturing, automation, and HVAC environments. The switch’s operating temperature range from -10°C to 70°C accommodates various ambient conditions.
With a panel cutout size of 24 x 15.4 mm, this rocker switch fits compact panels while providing clear white legend text ('I/O') for easy identification. It carries IEC and UL approvals, assuring compliance with international quality and safety standards.
DPST contact configuration with On-On switch operation for reliable control. Durable polyamide housing with IP67 ingress protection. Quick connect terminals with silver-plated brass for optimal conductivity. High mechanical life of 25,000 operations ensuring longevity.
Suitable for industrial and automation systems requiring robust switching components. Compact panel cutout size facilitating flexible installation. Operating temperature range suitable for varied environmental conditions.
IEC and UL certified to international standards. Explore our extensive range of Rocker Switches and electrical components at EnvMart for industrial, manufacturing, and commercial electrical installations and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JWM22RHA features a DPST (Double Pole Single Throw) contact configuration with On-On operation.
It is rated for a DC voltage of up to 72 V and an AC voltage of up to 250 V.
This switch supports a contact current of 10 A.
The operating temperature range is from -10°C to 70°C, making it suitable for various environments.
The mechanical life of the JWM22RHA is rated at 25,000 operations.
The required panel cutout size for this switch is 24 x 15.4 mm.
It is equipped with quick connect brass terminals that are plated with silver for optimal conductivity.
The housing is made of durable grey polyamide, which enhances insulation.
This model is certified to IEC and UL standards, ensuring compliance with international quality and safety standards.
The switch features a white legend text that reads 'I/O' for easy identification.
The JWM22RHA has an IP67 rating, indicating it is dust-tight and protected against water immersion.
This rocker switch is suitable for use in industrial, manufacturing, automation, and HVAC environments.
