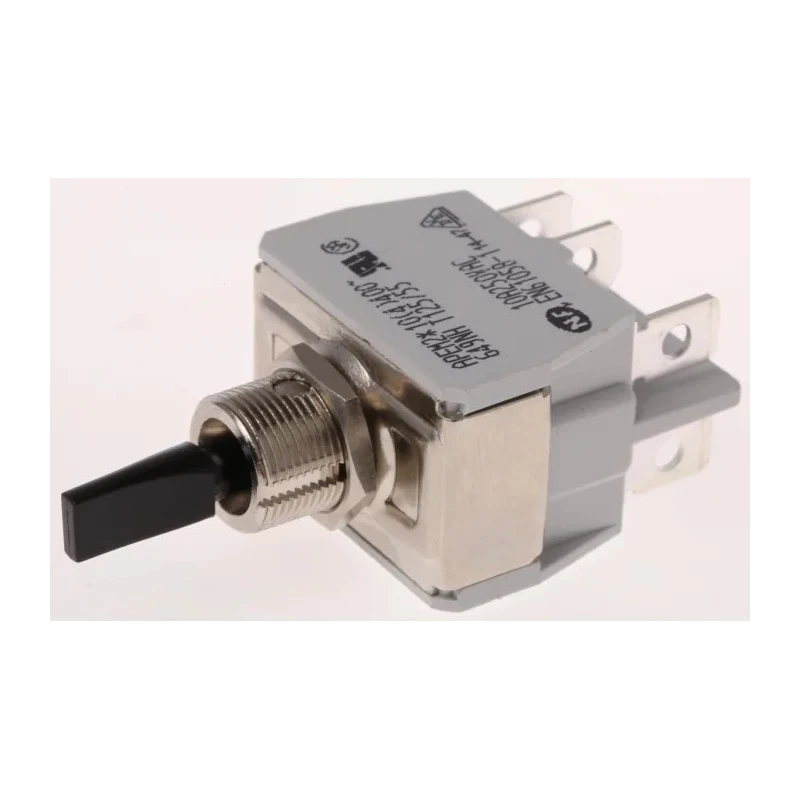

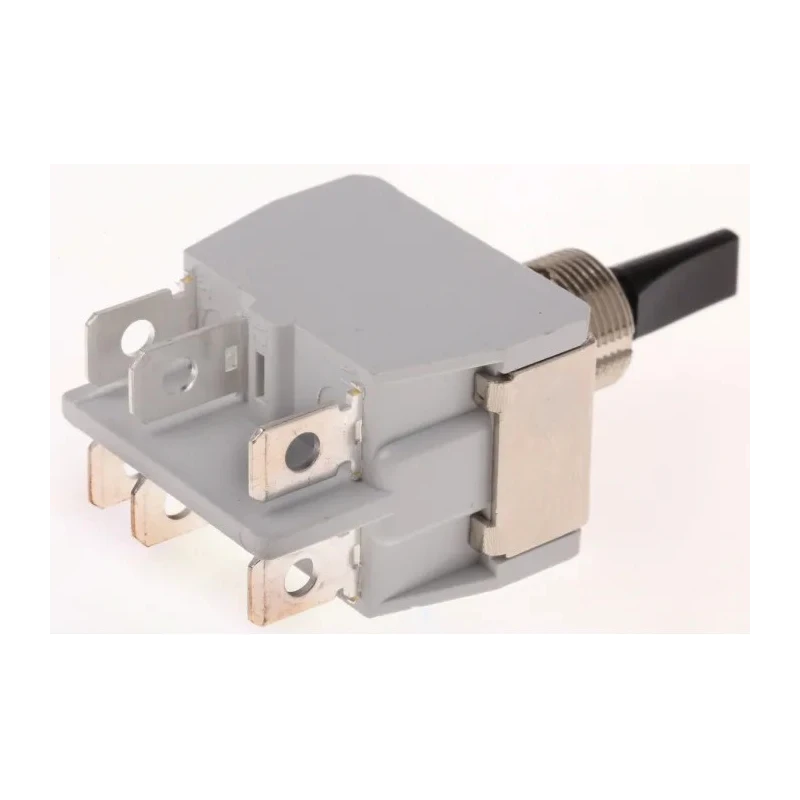

APEM Toggle Switch Panel Mount DPDT On-Off-On Tab Terminal 24V DC 250V AC 649NH/2

APEM 649NH/2 Toggle Switch is a high-quality panel mount DPDT toggle switch, offering reliable On-Off-On functionality for demanding industrial and automation applications. The DPDT contact configuration allows for independent switching of two circuits, making this switch suitable for versatile control panels and equipment designs.

Featuring a robust polyamide actuator, this toggle switch ensures long-term performance and resistance to wear. The On-Off-On switching action provides a clear mechanism for both activating and deactivating circuits, enabling flexible operation for multi-state controls.

The switch is designed for panel mounting with a cutout size of 12.5 mm, fitting standard industrial enclosures. Its tab terminal configuration simplifies the process of wiring and installation, delivering secure electrical connections.

Rated for 24V DC and 250V AC, the APEM 649NH/2 toggle switch handles both low-voltage and high-voltage applications safely. With a switch contact current rating of 10A, this unit is capable of managing moderate power requirements across a broad range of devices, from manufacturing machinery to laboratory instrumentation.

Additional features include a 13.5 mm actuator length for comfortable operation, an operating temperature range from -20°C to 55°C for reliable use in varied environments, and compliance with industry standards such as CSA, EN, NF, RoHS, UL, and VDE. The switch dimensions are 57.5 mm in height, 29.7 mm in length, and 21.5 mm in width, making it compact for space-constrained panels.

Typical use cases include industrial control panels, process automation, electrical machinery, commercial HVAC systems, laboratory equipment, and custom electronics projects where durable, precise, and multi-function toggle switches are essential.

Panel mount toggle switch designed for industrial and automation controls. DPDT (Double Pole Double Throw) contact configuration enables versatile switching tasks. Rated for 24V DC and 250V AC operation, suitable for a wide range of electrical circuits.

On-Off-On switching action provides flexible switching between two positions and off. Tab terminals allow secure and easy wiring connections. Polyamide actuator material for enhanced durability and reliability. Panel cutout size of 12.5 mm and actuator length of 13.5 mm ensure precise fitment.

Operating temperature range from -20°C to 55°C for robust performance in varying environments. Complies with major standards including CSA, EN, NF, RoHS, UL, and VDE. Compact dimensions with 57.5 mm height, 29.7 mm length, and 21.5 mm width.
