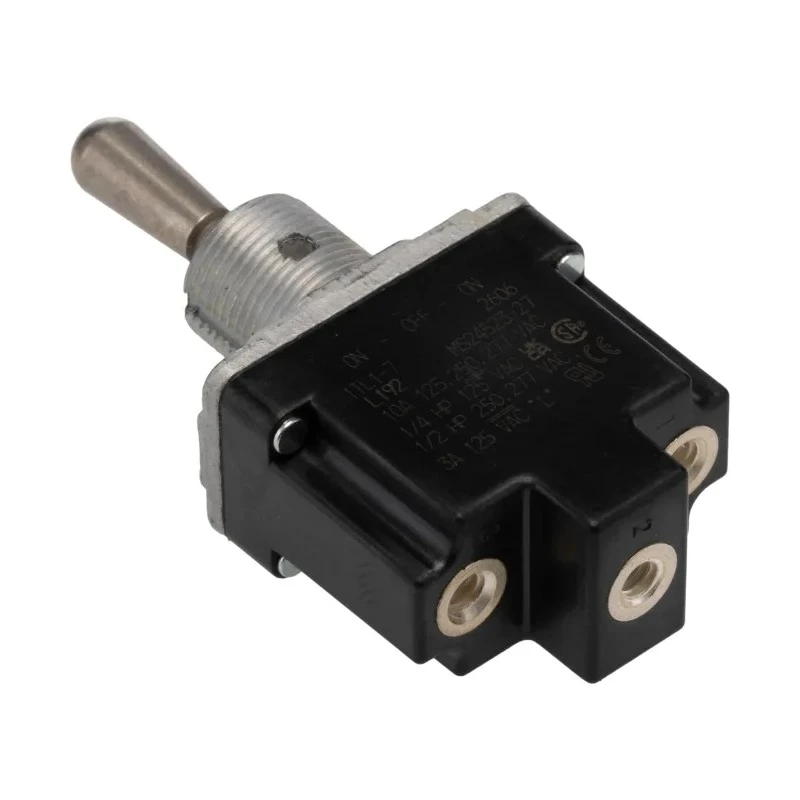

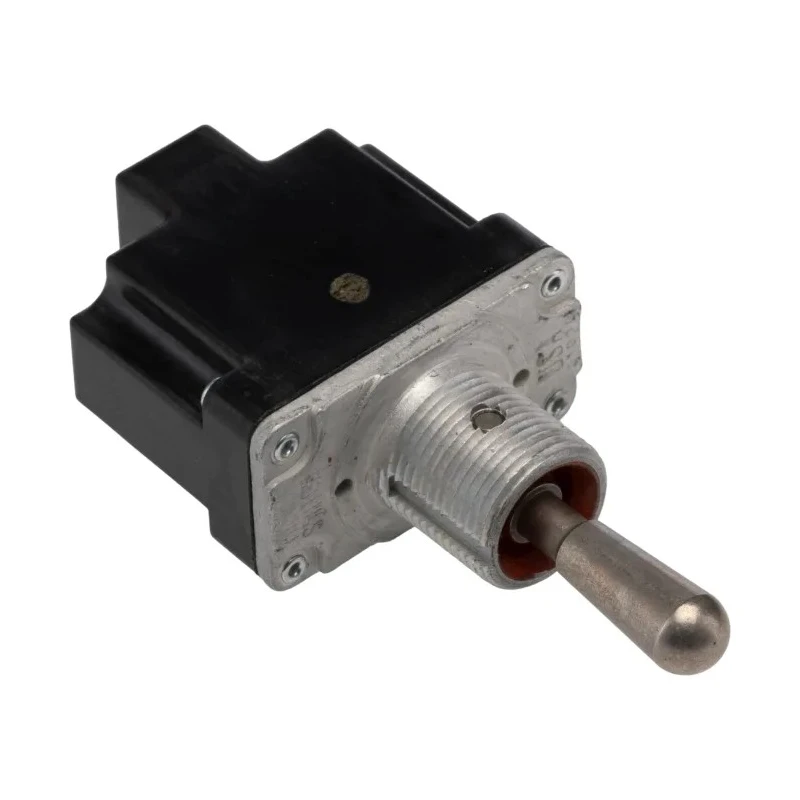

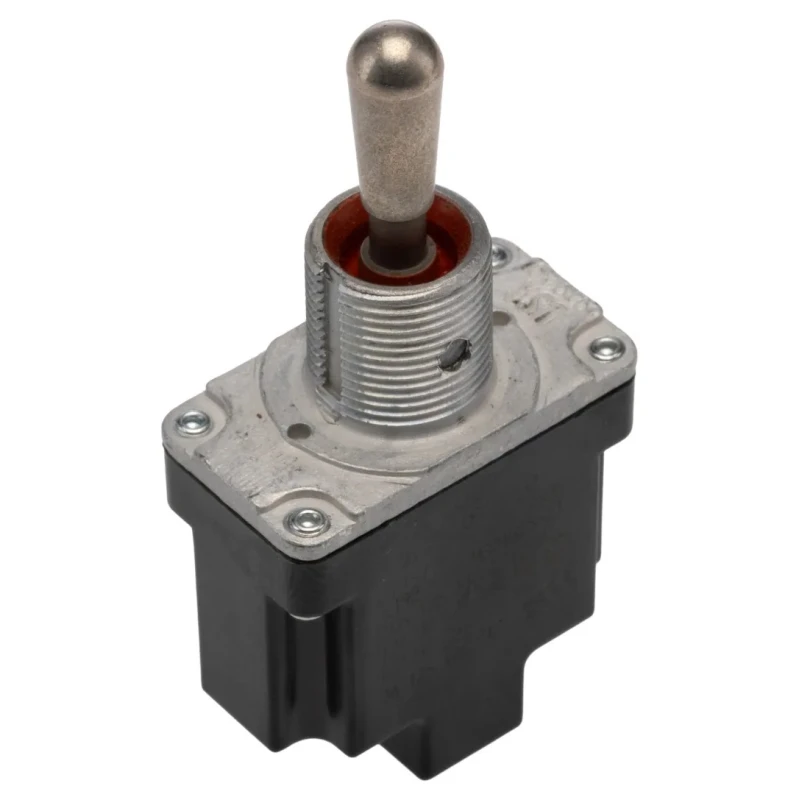

Honeywell Toggle Switch On-Off-On SPDT Screw Terminal 10A 277V AC Bushing Mount 1TL1-7

Free Delivery in India | Lowest Global Shipping Charges

Honeywell Toggle Switch On-Off-On SPDT Screw Terminal 10A 277V AC Bushing Mount 1TL1-7

Name: Honeywell Toggle Switch On-Off-On SPDT Screw Terminal 10A 277V AC Bushing Mount 1TL1-7
Brand: Honeywell
SKU: 82862



Category Toggle Switch Brand Honeywell Condition New

Specifications

Country of Origin	United States
Brand	Honeywell
Height	26.7mm
Length	15mm
Model	1TL1-7
Width	33.5mm
Mount Type	Bushing
Series	TL
Maximum Operating Temperature	71°C
Contact Configuration	SPDT
Minimum Operating Temperature	-65°C
Panel Cutout Size	12.4 mm
Terminal type	Screw
Standards/Approvals	CSA, UL, CE
Switch Operation	On-Off-On
Actuator Length	17mm
Switch Contact Current	10A
Contact AC Voltage	277V ac

Key Features

On-Off-On switch operation with centre-off for manual circuit control.
Single-Pole, Double-Throw (SPDT) contact enables circuit selection and reversal.
Bushing mount design fits standard 12.4 mm panel cutouts for secure installation.
10A contact current rating supports robust electrical control applications.
277V AC voltage handling suitable for higher voltage circuits.
Screw terminals allow secure, serviceable wiring connections.
Non-illuminated actuator with a protruding length of 17mm for tactile operation.
Wide operating temperature range from -65°C to 71°C covers demanding environments.

Product Description

Honeywell 1TL1-7 Toggle Switch is a robust industrial control switch designed for manual selection and isolation in electrical and automation systems. With On-Off-On operation, it enables centre-off circuit switching, making it ideal for alternate feed selection, changeover duties, and auxiliary circuit management. The SPDT (Single-Pole, Double-Throw) contact configuration makes it suitable for rerouting functions and reversal of circuits, often required in motor control panels, automation cabinets, test benches, and industrial equipment.

Featuring a bushing mount, the switch fits panel cutouts of 12.4 mm, ensuring secure and straightforward installation into standard control panels. The manual actuator is 17 mm in length, offering a clear tactile interface for frequent operational changes.

Honeywell's switch supports a contact current up to 10A at 277V AC, providing reliable handling of control loads. Screw-type terminals enable clamped connections and easy field servicing, without the necessity for specialized tools.

Operating in environments ranging from -65°C to 71°C, this switch can perform reliably under wide ambient temperature conditions. The compact design, with a length of 15 mm, width of 33.5 mm, and height of 26.7 mm, makes it suitable for enclosure layouts with space limitations.

As a non-illuminated switch, it is intended for scenarios where illumination is not required, focusing solely on tactile mechanical selection. CSA, UL, and CE approvals ensure compliance with industrial standards and suitability for formal installations worldwide.

This product is commonly used in motor control panels, automation cabinets, alternate feed selector systems, and test rigs in manufacturing, laboratory, and commercial applications.
