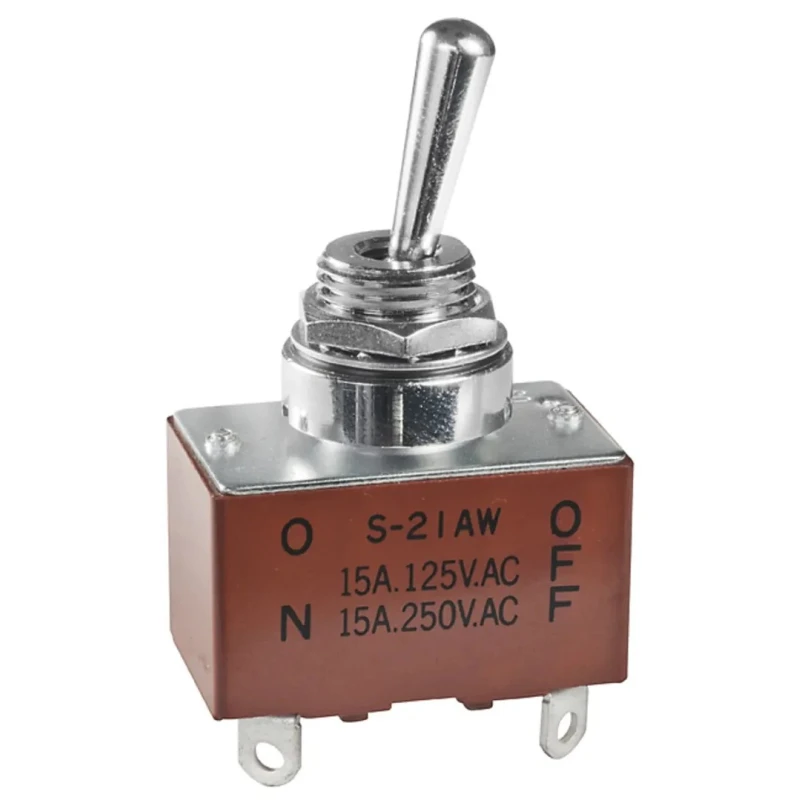

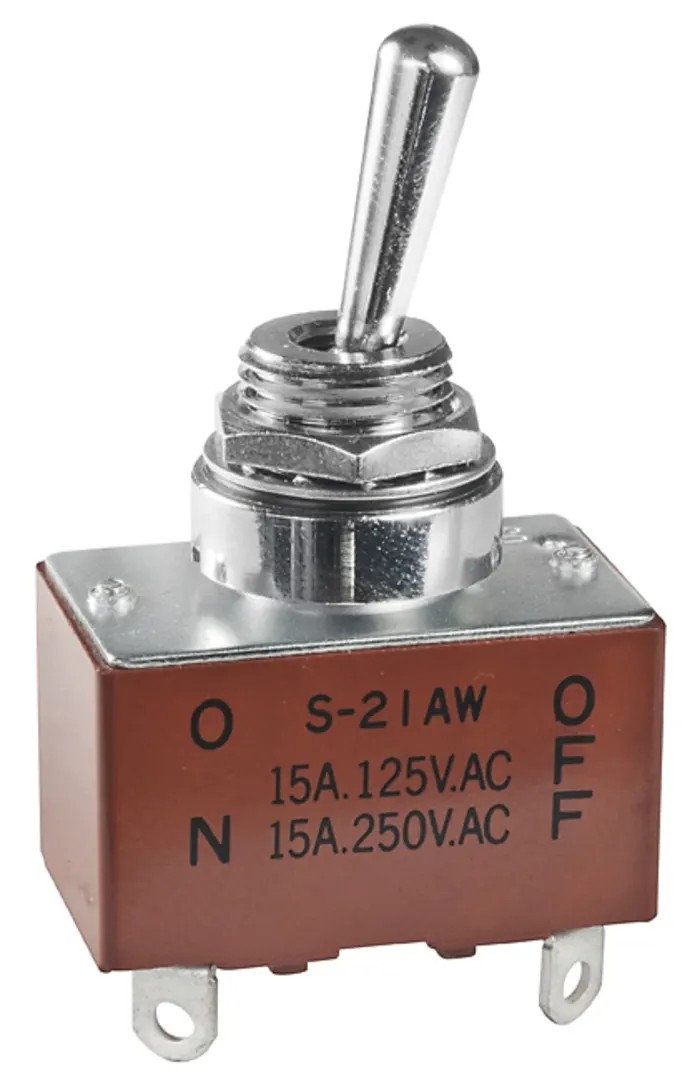

NKK Switches DPST Toggle Switch Panel Mount On-Off Solder Terminal IP67 30V DC 125V AC S21AW
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | NKK Switches |
| Height | 55.7mm |
| Length | 31.2mm |
| Model | S21AW |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | S |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Switch Configuration | DPST |
| Minimum Operating Temperature | -10°C |
| Panel Cutout Size | 12.5 mm |
| Terminal type | Solder |
| Standards/Approvals | UL, CSA |
| Switch Operation | On-Off |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 20A |
| Mechanical Life | 30000Operations |
| Contact AC Voltage | 125V ac |
Key Features
- DPST contact configuration ensures reliable switching for dual circuits.
- On-Off operation provides straightforward usability for industrial applications.
- Rated for 20A current and supports 30V DC and 125V AC operation.
- IP67 rated for waterproof sealing ideal for harsh and outdoor conditions.
- Solder terminal type for secure electrical connections in control panels.
- Panel cutout size 12.5 mm enables easy integration in custom enclosures.
- Actuator length of 17.5 mm designed for ergonomic handling.
- Operates reliably between -10°C and 70°C for diverse environments.
Product Description
The NKK Switches S21AW DPST Toggle Switch is a professional-grade switch designed for panel mounting in industrial, commercial, and transport systems. Featuring a Double Pole Single Throw (DPST) contact arrangement, this switch can separately control two circuits simultaneously, making it suitable for complex and critical control tasks.
This model supports both On-Off operation and is equipped with solder terminals to guarantee robust and secure connections. The switch is rated for 20A contact current and is compatible with 30V DC and 125V AC supply voltages, which broadens its application across a variety of electrical control environments including machinery, HVAC, marine, and automotive setups.
One of the main highlights of the S21AW is its IP67 sealing, which protects against dust and water ingress, ensuring reliable performance in demanding and harsh environments. The panel cutout size of 12.5 mm and actuator length of 17.5 mm make it ergonomically sound and easy to install in customized panel assemblies. With a temperature rating from -10°C to 70°C, the device is designed to function effectively across a wide temperature range.
Certified to UL and CSA standards, this switch meets international safety and quality benchmarks. The mechanical life of 30,000 operations provides longevity and minimizes maintenance requirements. The total height and length of the switch (55.7mm and 31.2mm, respectively) allow for compact integration into various control panels and consoles.
This switch is widely used in industrial control panels, automation systems, marine vessels, construction equipment, and medical devices where reliability, sealing, and robust performance are critical.
Explore more industrial-grade Toggle Switches and panel-mount solutions in the Electrics & Electricals category from NKK Switches and other top brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a Double Pole Single Throw (DPST) contact configuration, allowing it to control two circuits simultaneously.
This model is rated for a maximum contact current of 20A.
It supports both 30V DC and 125V AC supply voltages, making it versatile for various applications.
The switch has an IP67 rating, providing protection against dust and water ingress, suitable for harsh environments.
The required panel cutout size for this switch is 12.5 mm.
The actuator length of this switch is 17.5 mm, designed for ergonomic handling.
It operates reliably between -10°C and 70°C, accommodating a wide range of environmental conditions.
The mechanical life of this switch is rated for 30,000 operations, ensuring longevity.
This model uses solder terminals, providing secure electrical connections in control panels.
It is certified to UL and CSA standards, meeting international safety and quality benchmarks.
This switch is suitable for use in industrial control panels, automation systems, marine vessels, and construction equipment.
