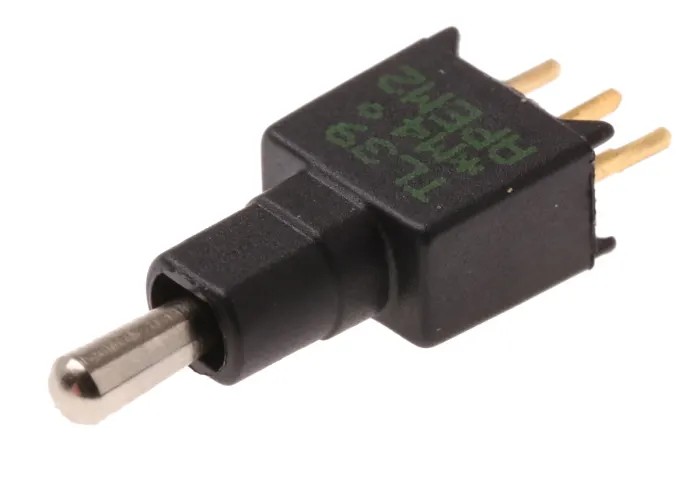

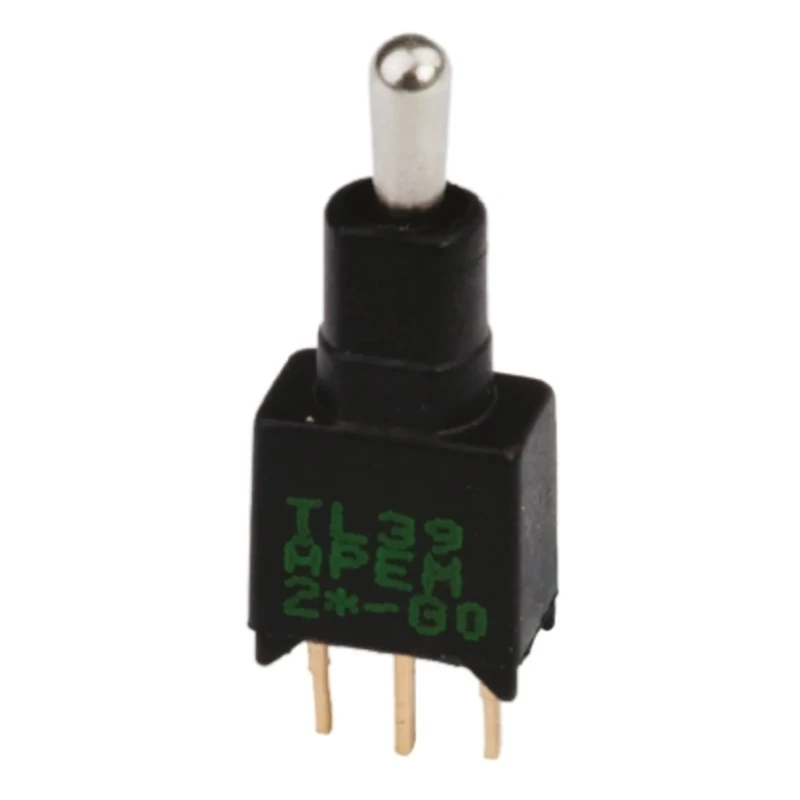

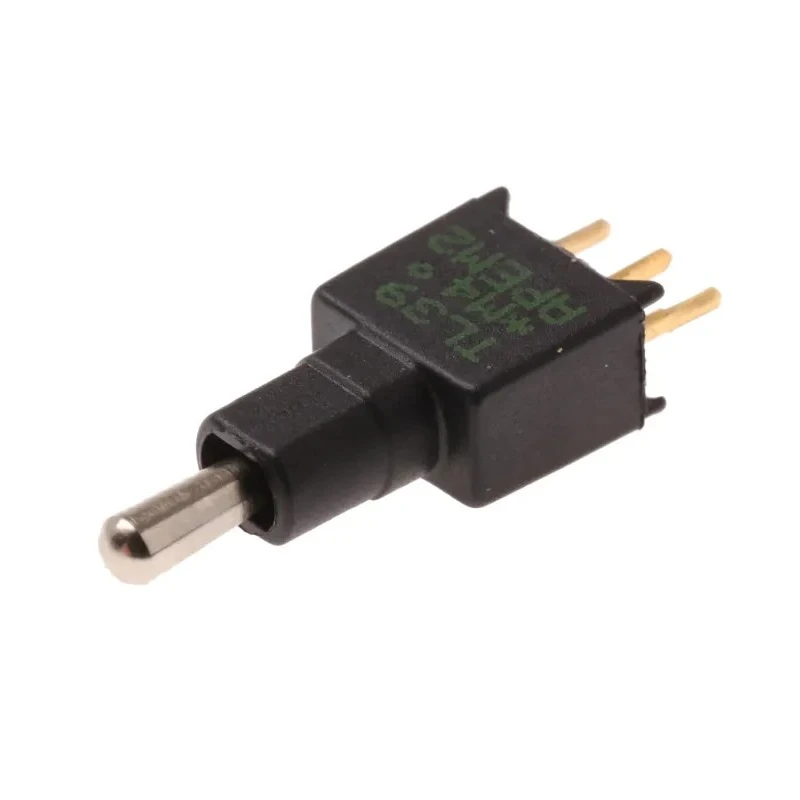

APEM Toggle Switch PCB Mount SPDT On-Off-On Through Hole Terminal 20V AC/DC TL39P0050

APEM TL39P0050 is a precision toggle switch engineered for demanding electronic control and circuit applications. Featuring a single pole double throw (SPDT) configuration, this switch offers On-Off-On switching functionality, enabling flexible circuit designs for signal routing and power management.

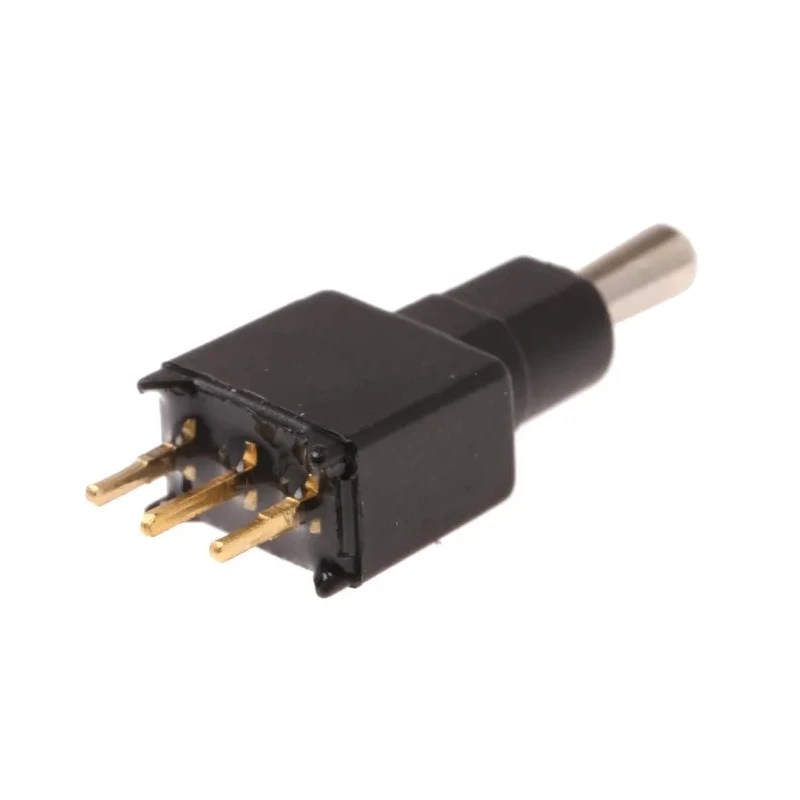

The TL39P0050 utilizes a PCB mount format with through hole terminals, allowing secure and reliable installation onto printed circuit boards. Its gold plated brass terminals ensure maximum electrical conductivity and corrosion resistance, while the actuator is constructed from durable brass for long-term mechanical stability. The compact actuator length of 5.3mm facilitates integration into tight panel spaces.

Rated for both 20V AC and 20V DC operation, this toggle switch is suitable for low voltage switching applications in industrial, laboratory, control panel, and automation environments. The device is designed for a switch contact current of 400mA, providing robust performance for signal or power lines typically found in control boards and instrumentation.

Sealed to withstand immersion cleaning and capable of wave soldering up to 260°C for 5 seconds, the TL39P0050 is suited for high-volume PCB production processes and environments where cleaning procedures are stringent. Its construction ensures total protection against contaminants, increasing reliability and service life in harsh operating conditions.

The switch covers an operating temperature range from -30°C to 85°C, making it ideal for both indoor and outdoor use. With a minimum load specification of 10mA at 50mV, and also support for micro-currents down to 10μA at 5Vdc, it is appropriate for sensitive signal applications and ensures consistent contact performance.

A wide application spectrum includes industrial automation, manufacturing, test equipment, laboratory controls, and commercial electronics requiring robust PCB mount switches. Number of operations is rated for 60,000 cycles for two-position operation, and 30,000 cycles for three-position use, giving exceptional operational reliability.

Robust toggle switch with On-Off-On SPDT operation for versatile industrial and control applications. PCB mounting and through hole terminal design for secure integration in electronic assemblies. Rated for both 20V AC and 20V DC low voltage operation in automation and instrumentation.

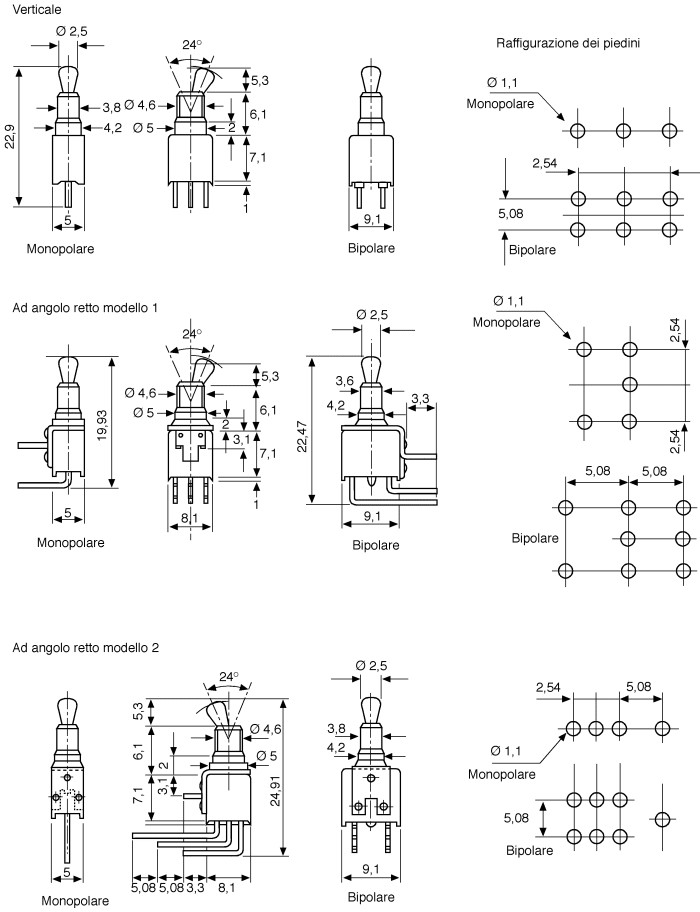

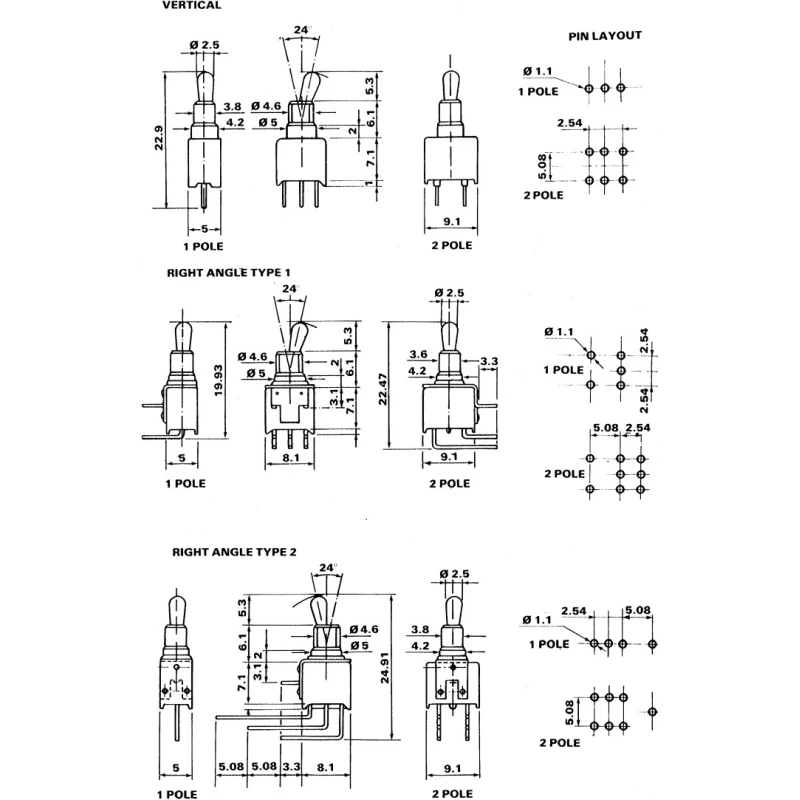

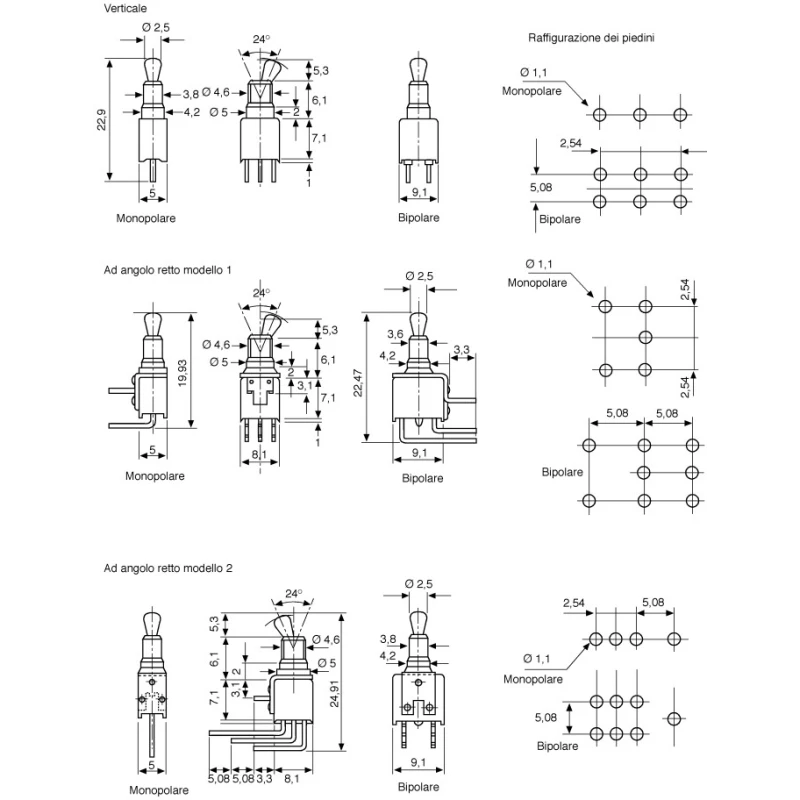

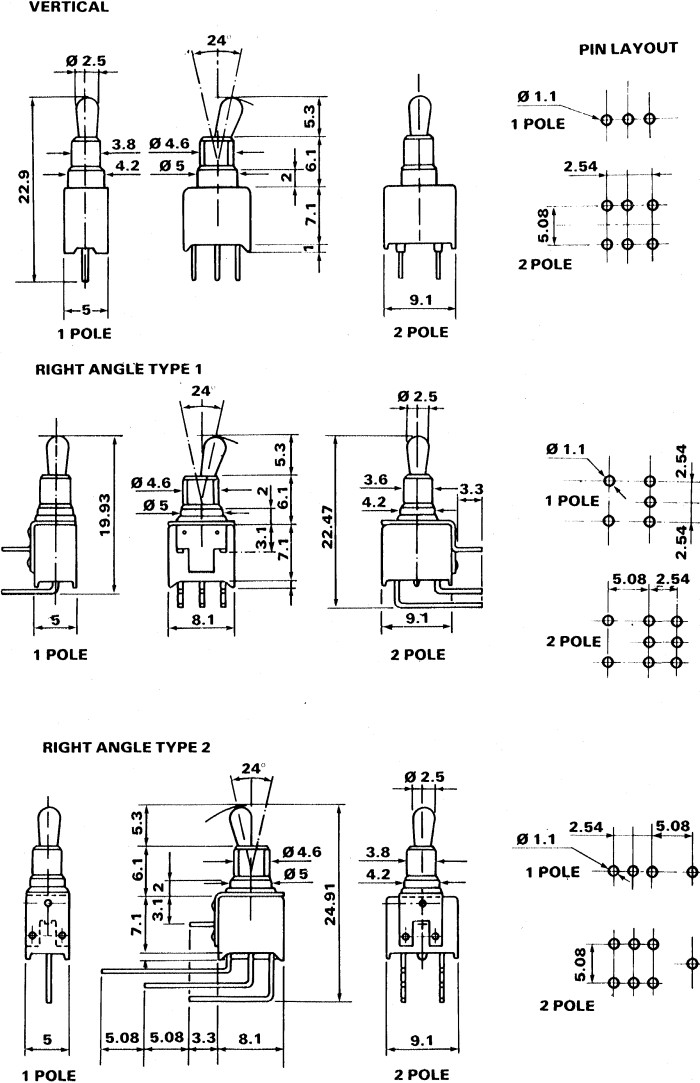

Gold plated brass terminals and actuator optimize electrical contact and longevity. Totally sealed housing for immersion cleaning and wave soldering compatibility (up to 260°C). Compact form, actuator length and mounting dimensions support tight PCB layouts.

Temperature range from -30°C to 85°C for industrial, laboratory, and commercial use. Switch contact current rated 400mA for reliable low-level circuit performance. Supports sensitive loads: minimum load is 10μA at 5Vdc for signal applications.

Long operational lifespan: up to 60,000 operations (2 pos), 30,000 (3 pos). Browse more APEM Toggle Switches and PCB-mounted switch solutions in EnvMart's Electronics & Electricals category for industrial, commercial, and automation projects.
