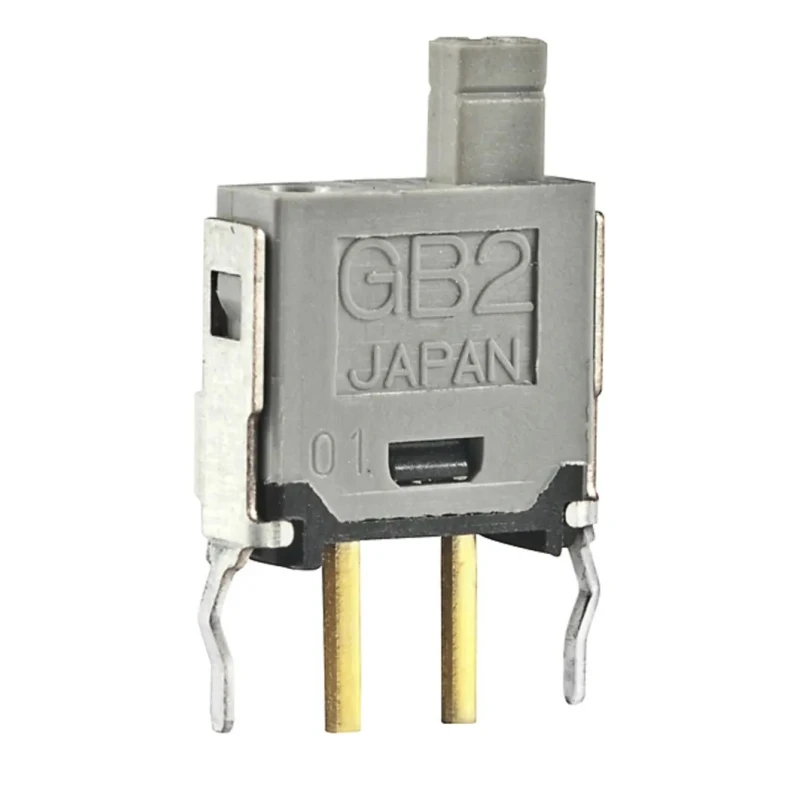

NKK Switches GB Series Push Button Switch Off-On Through Hole SPST 28V dc/ac GB215AB

Name: NKK Switches GB Series Push Button Switch Off-On Through Hole SPST 28V dc/ac GB215AB
Brand: NKK Switches
SKU: 155566
Price: 2.47 USD
Availability: InStock



Category Push Button Switch Brand NKK Switches Condition New

Specifications

Country of Origin	Philippines
Brand	NKK Switches
Model	GB215AB
Mount Type	Through Hole
Series	GB
Maximum Operating Temperature	55°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-25°C
Terminal type	PC Pin
Standards/Approvals	CSA, UL 94 V-0, UL Recognised
Switch Operation	Off-On
Contact DC Voltage	28V dc
Actuator Style	Plunger
Contact AC Voltage	28V ac

Key Features

The switch configuration is single pole single throw (SPST) with plunger actuator style.
Suitable for contact voltages of 28V DC and 28V AC.
Operating temperature range from -25°C to 55°C allows versatile environmental use.
Terminal type is PC pin compatible with standard PCB grids.
Constructed with patented Sliding Twin Crossbar (STC) mechanism ensuring logic-level reliability and smooth actuation.
Designed for high-density PCB mounting, ideal for handheld equipment and compact electronics.
Terminals are epoxy sealed to prevent flux and contaminant ingress enhancing durability.
Complies with CSA and UL standards including UL 94 V-0 material recognition for safety and reliability.

Product Description

NKK Switches GB215AB Push Button Switch is designed for reliable off-on switching operations in electronics and industrial applications. It features a single pole single throw (SPST) contact configuration controlled by a plunger style actuator, enabling precise user control. The through hole mount type allows for secure PCB integration.

Capable of handling contact voltages up to 28V DC and 28V AC, this switch supports a broad range of low voltage applications. It operates efficiently within a temperature range of -25°C to 55°C, making it suitable for various environments.

The patented Sliding Twin Crossbar (STC) mechanism delivers superior logic-level reliability and a smooth, positive detent feel, enhancing switch performance and user experience. Its extremely thin profile supports high-density PCB layouts, vital for compact and handheld electronic devices.

Epoxy-sealed terminals protect against flux and other contaminants, extending longevity and consistent operation. Terminal pin spacing complies with standard 0.100 inch x 0.100 inch PCB grid, suitable for both straight and angled mounting.

The switch is compliant with CSA and UL safety standards, including UL 94 V-0 material fire rating and UL Recognized component status. Its design and features make it ideal for industrial automation, control panels, instrumentation, and electronic devices requiring reliable push button switching.

Manufactured in the Philippines, this product meets stringent quality standards ensuring dependable performance in demanding applications. Explore more Push Button Switches and components on EnvMart for diverse electrical and electronic needs.
