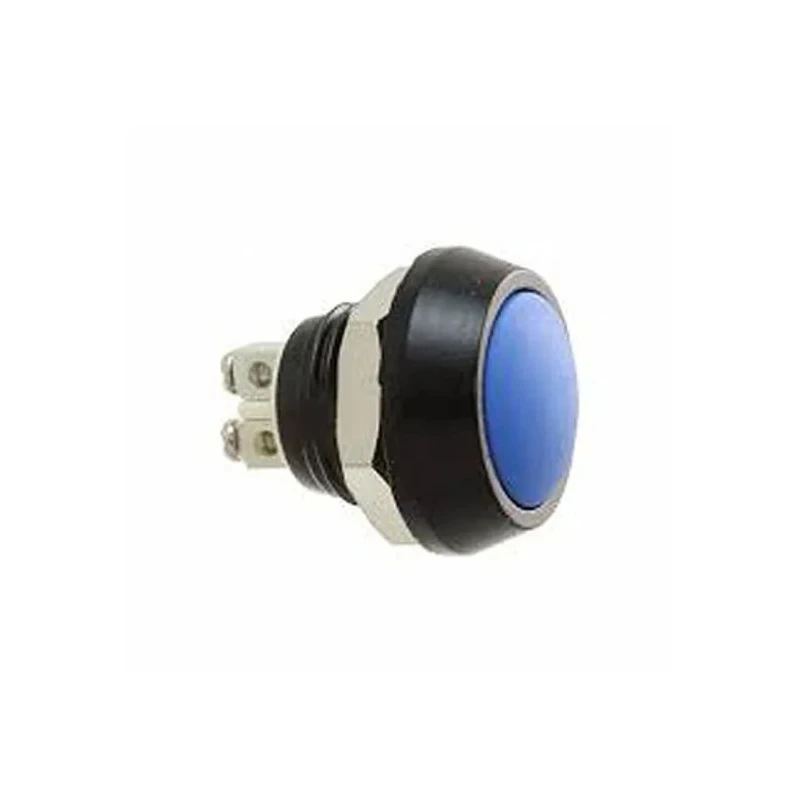

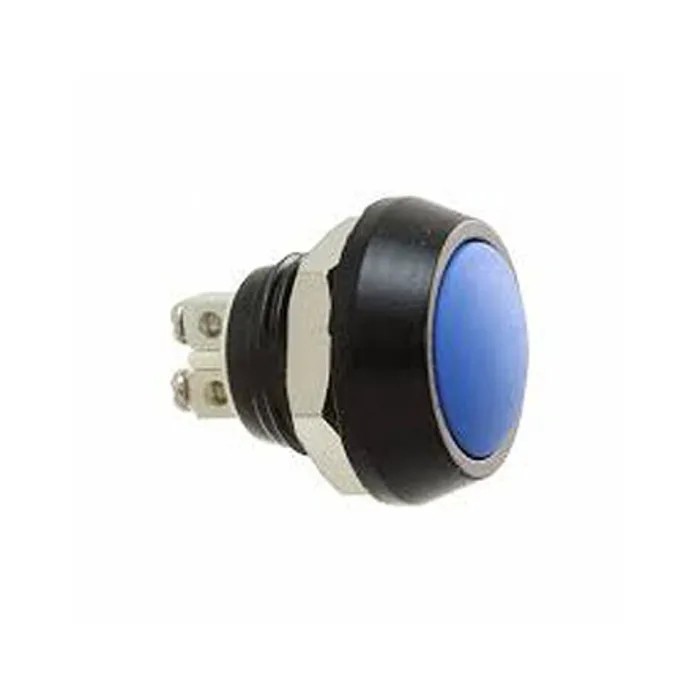

Bulgin MAV0120 Series Push Button Switch Momentary, Panel Mount, 12 mm Cutout, SPST, Multi-LED, IP67
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bulgin |
| Model | MAV0120 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | MAV0120 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 12 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Blue, Green, Orange, Red, Yellow |
| Switch Operation | Momentary |
| Actuator Colour | Blue |
| Contact DC Voltage | 36V dc |
| Actuator Style | Momentary |
| Switch Contact Current | 2A |
| Contact AC Voltage | 36V ac |
| • Choice of Termination, depending on part code suffix | S - Screw Terminals, P - 2mm x 0.5mm Pin Terminals |
| Choice of Termination | S - Screw Terminals, P - 2mm x 0.5mm Pin Terminals |
Key Features
- Momentary push button switch suitable for panel mounting applications.
- Features a 12 mm cutout for simple installation in control panels.
- Single pole single throw (SPST) contact configuration ensures reliable operation.
- Comes with multiple LED indicator colors including blue, green, orange, red, and yellow.
- Provides an IP67 protection rating for use in demanding environments.
- Supports both 36V AC and 36V DC contact voltages, enhancing versatility.
- Rated for a maximum switch contact current of 2A.
- Operates within a temperature range of -25°C to 55°C.
Product Description
Bulgin MMP0120/ABLP is a robust momentary push button switch designed for panel mount situations demanding reliability and clear visual status indication. Built to fit standard 12 mm cutouts, this switch is ideal for a range of industrial, control, instrumentation, and automation panels.
Its momentary operation allows for quick response with an actuator capable of both tactile feedback and visual indication, thanks to integrated LEDs in blue, green, orange, red, and yellow. The SPST (single pole single throw) contact configuration is engineered for safety and easy circuit integration, and the unit is protected to IP67 for resilience against dust and water ingress.
Electrical ratings include compatibility with 36V AC and DC, and a switch contact current of 2A, making this device suitable for various industrial low-voltage applications. The solder terminal style ensures solid connections for dependable performance in vibration-prone or mobile installations. Operating temperature range from -25°C to 55°C supports utility in harsh ambient conditions.
The MMP0120/ABLP model offers flexibility with body and button materials; available in stainless steel, nickel-plated brass, or anodized aluminum with durable PBT buttons. It is RoHS compliant, indicating adherence to strict material quality standards.
This switch finds applications in industrial machine-operation controls, commercial equipment panels, electrical distribution, laboratory instrumentation, and HVAC controls where momentary function and clear status indication are essential.
Browse more Bulgin Push Button Switches and related solutions for all automation and panel interface needs in the EnvMart platform.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The push button switch requires a 12 mm cutout for panel mounting applications.
This model has an IP67 protection rating, making it suitable for use in environments where dust and water resistance is required.
It is rated for a maximum switch contact current of 2A.
The switch supports both 36V AC and 36V DC contact voltages, enhancing its versatility for various applications.
It operates within a temperature range of -25°C to 55°C, making it suitable for harsh ambient conditions.
The switch comes with multiple LED indicator colors including blue, green, orange, red, and yellow.
It features a single pole single throw (SPST) contact configuration, ensuring reliable operation.
The switch uses solder terminals for solid connections, ensuring dependable performance in various installations.
The body and button materials include stainless steel, nickel-plated brass, or anodized aluminum with durable PBT buttons.
It is RoHS compliant, indicating adherence to strict material quality standards.
This switch is suitable for industrial machine-operation controls, commercial equipment panels, electrical distribution, laboratory instrumentation, and HVAC controls.
The actuator style is momentary, providing quick response with tactile feedback and visual indication.
