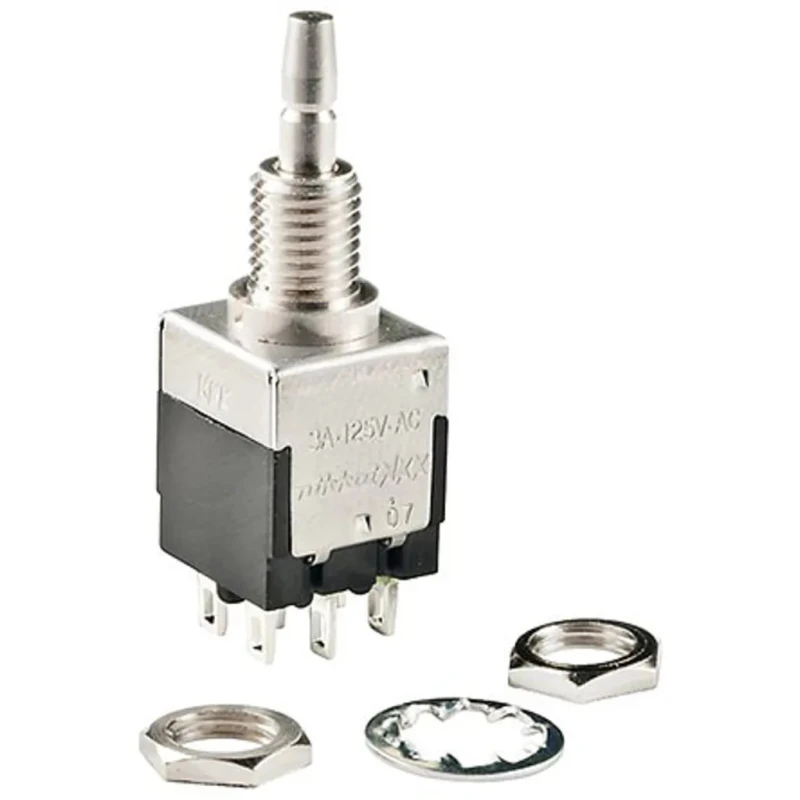

NKK Switches EB Series Momentary Panel Mount Push Button Switch DPDT 6.35 mm Cutout 125 V AC EB2061

Name: NKK Switches EB Series Momentary Panel Mount Push Button Switch DPDT 6.35 mm Cutout 125 V AC EB2061
Brand: NKK Switches
SKU: 142694
Price: 6.42 USD
Availability: InStock



Category Push Button Switch Brand NKK Switches Condition New

Specifications

Country of Origin	China
Brand	NKK Switches
Model	EB2061
Mount Type	Panel Mount
Series	EB
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Minimum Operating Temperature	-10°C
Panel Cutout Size	6.35 mm
Terminal type	Solder Lug
Standards/Approvals	UL 94 V-0
Switch Operation	Momentary
Contact DC Voltage	125V
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	125V ac

Key Features

Designed for momentary switch operation in electrical and automation applications.
Panel mount style with a precise 6.35 mm cutout for easy installation.
Double Pole Double Throw (DPDT) contact configuration provides versatile switching options.
Round actuator style for user-friendly tactile feedback and light touch actuation.
Constructed with corrosion-resistant stainless steel frame and heat-resistant resin case.
High dielectric strength of 1,500V ensures reliable insulation between contacts and case.
Terminal type is solder lug for secure electrical connections.
Operates reliably between -10°C to 70°C ambient temperatures.

Product Description

NKK Switches EB2061 is a high-quality momentary panel mount push button switch from the EB Series, suited for industrial electrical and automation control applications. This switch features a 6.35 mm panel cutout and a rugged construction designed to withstand demanding environments.

The DPDT (Double Pole Double Throw) contact configuration enables flexible circuit design options with independent switching positions. Its round actuator style provides a comfortable, light touch actuation suitable for operator control panels. The stainless steel frame offers excellent corrosion resistance, while the heat-resistant resin case ensures durability during thermal stress.

NKK EB2061 push button switch is engineered with high insulating barriers and rated for a contact voltage of 125 V AC and DC. The terminals are epoxy sealed and use solder lug connections for secure wiring. This switch operates reliably within a temperature range from -10°C to 70°C, supporting diverse industrial environments.

The switch complies with UL 94 V-0 flame retardancy standards, confirming its suitability for safe electrical installations. Its robust design and high dielectric strength of 1,500 V between contacts and the case provide enhanced safety and reliability.

Momentary switch operation for precise control. Panel mount with 6.35 mm cutout provides easy integration. DPDT contact configuration for complex switching applications. Corrosion-resistant stainless steel frame enhances longevity.

Heat-resistant resin case improves durability. High dielectric strength ensures electrical insulation safety. Epoxy sealed terminals protect against moisture and contaminants. Rated for 125 V AC/DC contact voltage and 3A contact current.

UL 94 V-0 flame retardant certification for safety compliance.

This product is ideal for industrial control panels, automation systems, and electrical cabinets requiring reliable push button switches with momentary action. Explore more Push Button Switches and electrical components on EnvMart for comprehensive solutions.
