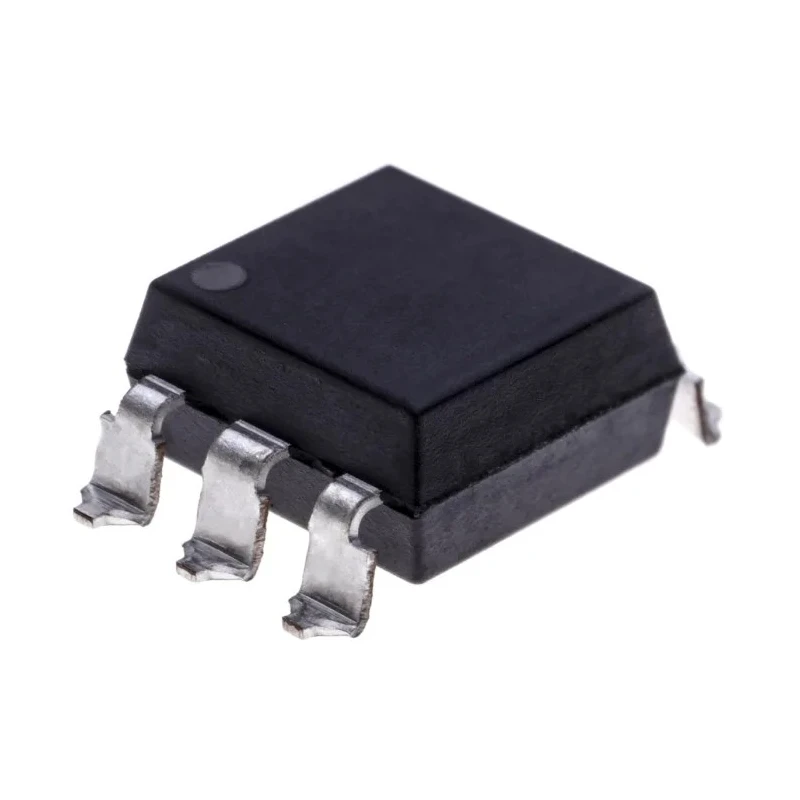

Isocom AC Input Optocoupler Surface Mount 6-Pin 1 Channel 1.5V Max Forward Voltage 60mA Input Current H11L1SM

The Isocom H11L1SM AC Input Optocoupler is designed for use in electronic components, power and connector applications requiring reliable electrical isolation and signal coupling. It features a surface mount package with 6 pins and a single channel configuration, optimized for microprocessor compatible drive and logic compatible outputs.

Constructed with a Gallium Arsenide infrared emitting diode and a Schmitt Trigger, this optocoupler can handle high data rates typically up to 1 MHz in non-return-to-zero (NRZ) coding. It delivers a maximum forward voltage of 1.5 volts and supports an input current up to 60mA.

The device’s fast switching times, typically 0.1 microseconds rise and fall, enable efficient performance in high-speed digital and industrial control systems. It operates reliably across a wide temperature range from -55°C to 100°C, making it suitable for harsh environments in industrial machinery, factory automation, and instrumentation.

Additionally, the H11L1SM offers high isolation voltage rated at 5000 Vrms, which ensures safe electrical separation between input and output signals. Its guaranteed on/off threshold hysteresis and high common mode rejection ratio assist in robust signal integrity and noise resistance in complex electrical environments.

This optocoupler is packaged in tape and reel format for seamless integration into surface mount technology (SMT) production lines. It complies with industry standards including RoHS, UL, and VDE, ensuring quality and environmental compliance.

The optocoupler provides electrical isolation and logic compatible output. It supports a maximum forward voltage of 1.5 volts and an input current up to 60 milliamps. Fast switching times with typical rise and fall times of 0.1 microseconds facilitate high frequency operation.

Operational temperature range is from -55°C to 100°C, suitable for varied industrial environments. Packaged in tape and reel format convenient for automated assembly. Offers guaranteed on/off threshold hysteresis for reliable logic switching.

High common mode rejection and wide supply voltage compatibility enhance noise immunity. Complies with RoHS, UL, and VDE standards ensuring safety and quality.

This product is ideal for use in electronic industrial assembly, automated manufacturing, signal isolation, and microprocessor interface applications. Browse the Electronics Components category at EnvMart for additional Optocoupler solutions and related electronic components.
