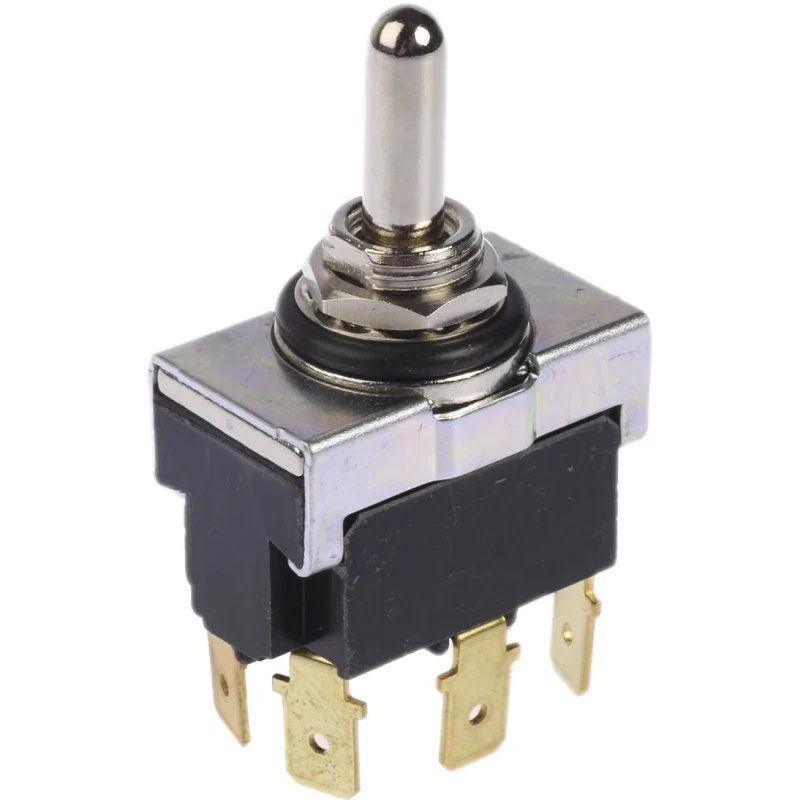

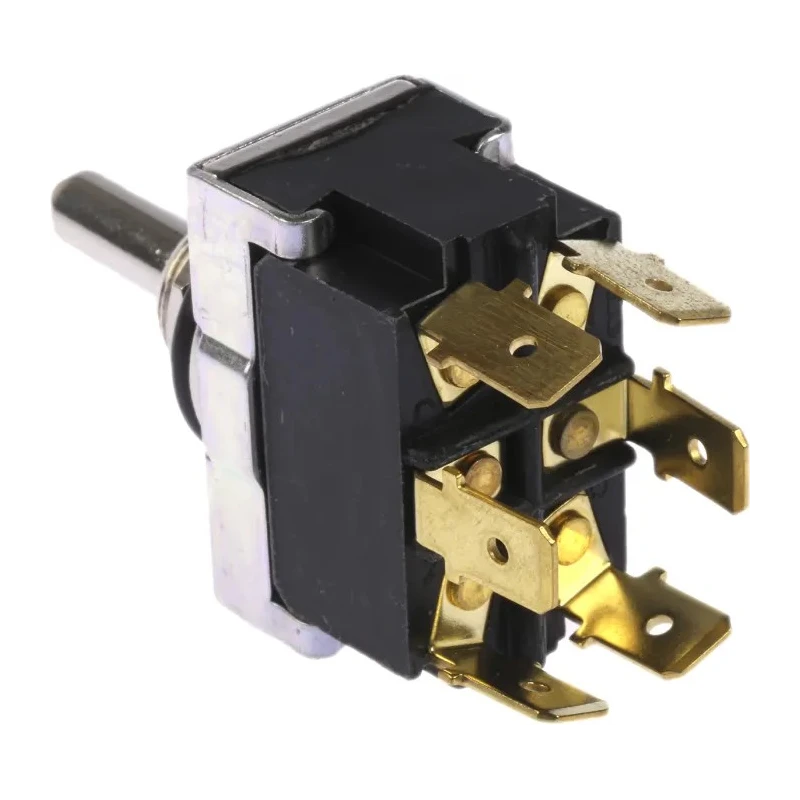

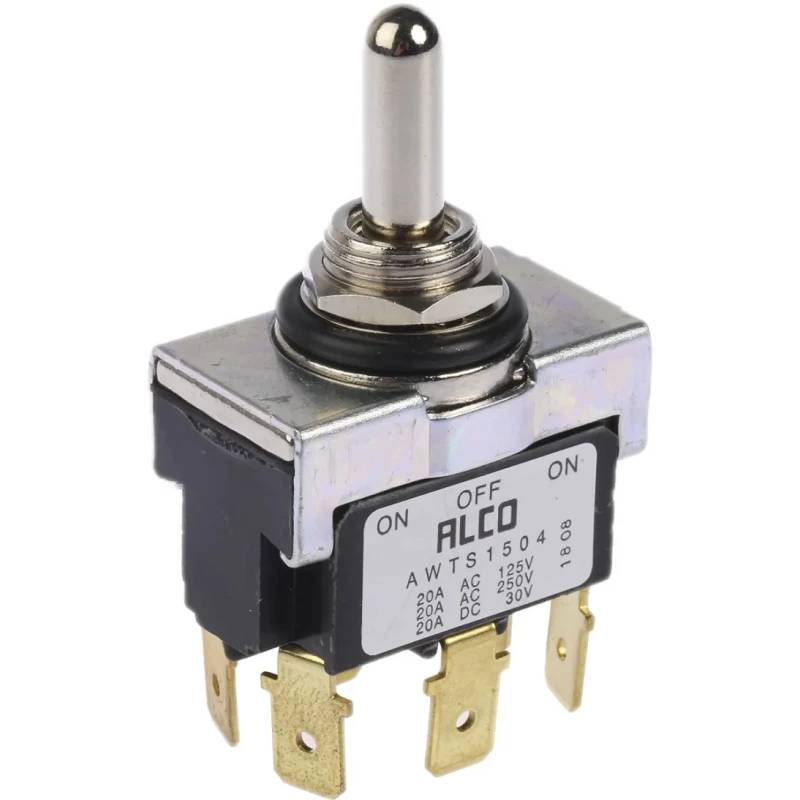

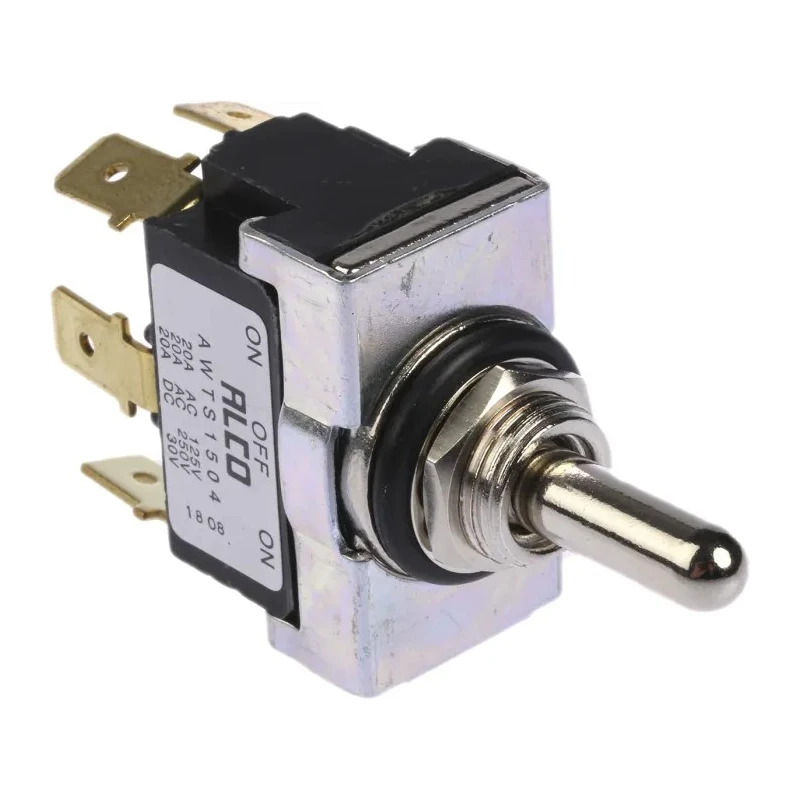

TE Connectivity Toggle Switch DPDT On-Off-On Panel Mount IP67, 20A 30V DC 250V AC AWTS1504
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | AWTS1504 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -20°C |
| Terminal type | Tab |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 20A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- DPDT On-Off-On toggle switch for flexible circuit switching.
- IP67 sealed design prevents dust and moisture ingress.
- 20A contact rating at 30V DC or 250V AC for versatile use.
- Panel mount configuration with easy-connect tab terminals.
- Robust brass actuator, 17.5mm length for reliable operation.
- Operates reliably from -20°C to 70°C in diverse environments.
- Tested up to 40000 mechanical cycles for long service life.
Product Description
The TE Connectivity AWTS1504 is a premium industrial toggle switch engineered for reliable electrical switching in panel-mounted applications. Featuring a double pole double throw (DPDT) configuration, the switch offers On-Off-On functionality, making it ideal for versatile circuit control where both continuity and switching flexibility are required.
This model is rated up to 20A and is suitable for both 30V DC and 250V AC circuits, accommodating a broad spectrum of power switching tasks in automation, electrical control panels, machinery, and commercial electronics. The IP67 sealing provides robust protection against dust and water ingress, enabling dependable operation even in challenging indoor and outdoor environments.
Designed for panel mounting, the switch is equipped with secure tab terminals for straightforward wiring. The actuator is constructed from high-quality brass, measuring 17.5mm in length, ensuring durability and ergonomic handling for consistent manual operation. The case is made from glass filled polyester for enhanced mechanical strength and resistance to harsh conditions.
The AWTS1504 offers a wide operational temperature range from -20°C to +70°C, allowing for deployment in diverse climates and industrial settings. With a mechanical life tested up to 40000 switching cycles, the switch is well-suited to applications involving frequent operation, such as in transport panels, HVAC control units, water treatment systems, manufacturing equipment, and laboratory instrumentation.
Additional benefits include quick and secure connection options via tab terminals, and momentary bias functionality as indicated by the (On)-Off-(On) configuration for specialized circuit needs. The device meets RoHS compliance standards for hazardous substance control.
Choose the TE Connectivity AWTS1504 Toggle Switch for applications demanding reliability, mechanical endurance, and robust environmental sealing. Explore more industrial switching solutions and trusted TE Connectivity products in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a double pole double throw (DPDT) contact configuration, allowing for versatile circuit control.
This model has a maximum current rating of 20A, suitable for both DC and AC applications.
The switch is rated for 30V DC and 250V AC, accommodating a wide range of electrical applications.
It has an IP67 rating, providing protection against dust and water ingress, making it suitable for challenging environments.
The operational temperature range is from -20°C to +70°C, allowing for use in various climates and industrial settings.
The switch has been tested for up to 40,000 mechanical cycles, indicating its suitability for frequent operation.
It is equipped with tab terminals for secure and straightforward wiring during installation.
The actuator is made from brass, while the case is constructed from glass filled polyester for enhanced mechanical strength.
The actuator length is 17.5mm, designed for ergonomic handling and reliable operation.
Yes, the switch meets RoHS compliance standards for hazardous substance control.
This model is suitable for applications such as transport panels, HVAC control units, water treatment systems, and laboratory instrumentation.
The switch configuration is (On)-Off-(On), allowing for specialized circuit needs and momentary bias functionality.
