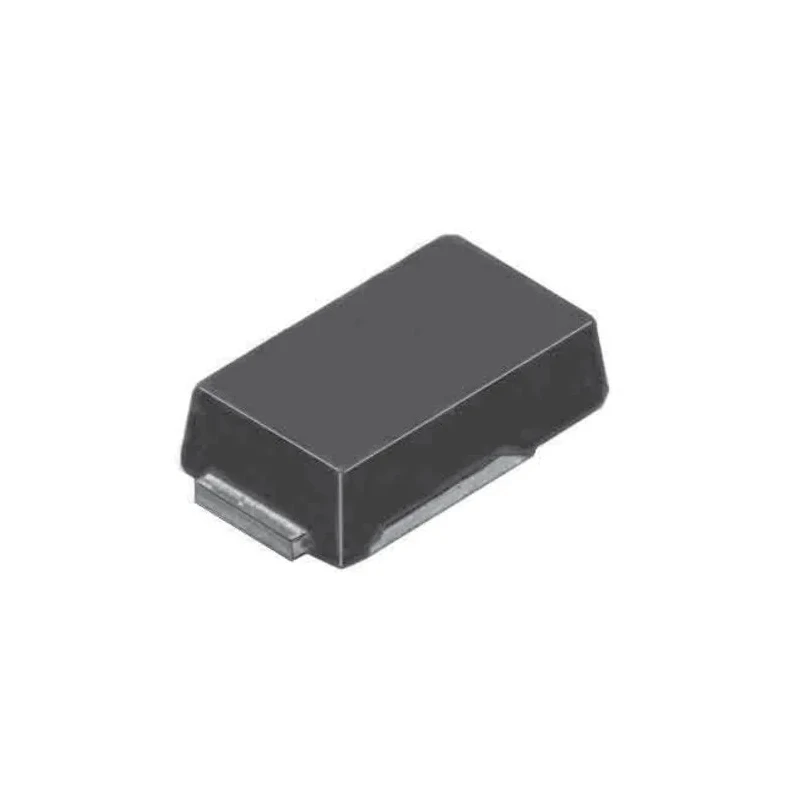

Vishay 60 V 2 A Surface Mount Schottky Rectifier Diode SMP (DO-220AA) V2P6LHM3/H

Free Delivery in India | Lowest Global Shipping Charges

Vishay 60 V 2 A Surface Mount Schottky Rectifier Diode SMP (DO-220AA) V2P6LHM3/H

Name: Vishay 60 V 2 A Surface Mount Schottky Rectifier Diode SMP (DO-220AA) V2P6LHM3/H
Brand: Vishay
SKU: 172962



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.15mm
Length	4mm
Model	V2P6LHM3/H
Width	2.18mm
Mount Type	Surface
Series	V2
Maximum Operating Temperature	150°C
Package Type	SMP (DO-220AA)
Minimum Operating Temperature	-40°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	10mA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	0.6V

Key Features

Provides low forward voltage drop for high efficiency rectification.
Operates reliably within -40°C to 150°C junction temperature range.
Supports peak non-repetitive forward surge current up to 50 A.
Features 2-pin single diode configuration suitable for surface mount applications.
Designed in accordance with AEC-Q101 automotive standard for high reliability.
Ideal for low voltage, high frequency inverters, freewheeling diodes, and DC/DC converters.
The compact dimensions of 4 mm length, 2.18 mm width, and 1.15 mm height suit space-constrained designs.

Product Description

Vishay V2P6LHM3/H is a high-performance surface mount Schottky rectifier diode designed to provide reliable and efficient rectification. Packaged in a low-profile SMP (DO-220AA) surface mount package, this diode delivers a maximum continuous forward current of 2 A with a peak reverse repetitive voltage rating of 60 V. It features a single 2-pin diode configuration optimized for compact circuit layouts.

The device supports a peak non-repetitive forward surge current of up to 50 A, enabling resilience in transient conditions. Its low forward voltage drop of 0.6 V minimizes power loss and heat generation, enhancing overall energy efficiency in electronic applications.

Operating junction temperatures range from -40°C to +150°C, making it suitable for demanding industrial and automotive environments. Compliance with the automotive AEC-Q101 standard assures its reliability in automotive systems and other harsh operating conditions.

Typical applications include use in low voltage, high frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits. The compact physical dimensions allow integration into space-restricted printed circuit boards, facilitating modern electronic designs.

Provides low forward voltage drop for efficient power conversion. Wide operating temperature range ensures reliable performance in various environments. High surge current capability ensures robustness in transient events.

Surface mount SMP (DO-220AA) package is suitable for automated assembly processes. Complies with automotive AEC-Q101 reliability standard. Compact size enables use in space-constrained applications. Single diode configuration simplifies circuitry in rectification tasks.

Vishay’s V2P6LHM3/H Schottky rectifier diode is well-suited for industrial, automotive, and consumer electronics requiring fast switching, low forward voltage, and high efficiency rectification solutions. Browse EnvMart's semiconductor category for related high-quality products to complement your electronic design needs.
