Nexperia 30 V 200 mA Schottky Diode 4-Pin SOT-143 BAT74,215

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 30 V 200 mA Schottky Diode 4-Pin SOT-143 BAT74,215

Name: Nexperia 30 V 200 mA Schottky Diode 4-Pin SOT-143 BAT74,215
Brand: Nexperia
SKU: 185421
Price: 0.14 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1mm
Length	3mm
Model	BAT74,215
Width	1.4mm
Mount Type	Surface
Series	BAT74
Maximum Operating Temperature	150°C

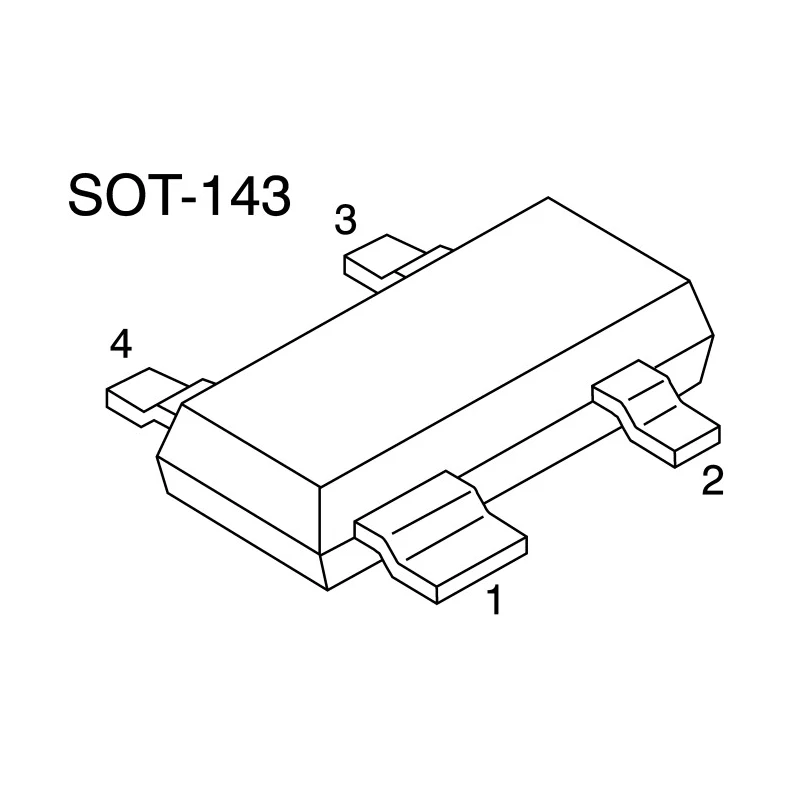

Package Type	SOT-143
Minimum Operating Temperature	-65°C
Pin Count	4
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Isolated
Rectifier Type	Schottky
Peak Reverse Current Ir	2μA
Peak Non-Repetitive Forward Surge Current Ifsm	600mA
Maximum Forward Voltage Vf	800mV
Peak Reverse Recovery Time trr	5ns
onsemi 30 V 200 mA Schottky Diode Schottky 6-Pin SOT-363 MBD54DWT1GBrand	onsemi
NXP 30V 200mA, Dual Schottky Diode, 4-Pin SOT-143B BAT74Brand	NXP

Key Features

This Schottky barrier diode is optimized for low forward voltage drop and high junction temperature tolerance.
It is housed in an ultra-small 4-pin SOT-143 package measuring 3 mm by 1.4 mm by 1 mm.
The device supports a maximum continuous forward current of 200 mA and a peak non-repetitive forward surge current of 600 mA.
Operating temperature range spans from -65°C to 150°C, suitable for automotive and industrial applications.
Peak reverse voltage is 30 V with a low peak reverse current of 2 µA, ensuring minimal leakage.
The diode features a fast peak reverse recovery time of 5 ns and a maximum forward voltage of 800 mV.
Conforms to automotive standard AEC-Q101 and is manufactured in China.

Product Description

Nexperia BAT74,215 is a high-efficiency 30 V 200 mA Schottky barrier diode designed for surface mount applications, housed in a compact 4-pin SOT-143 package measuring 3 mm in length, 1.4 mm width, and 1 mm height. This diode is ideal for automotive, industrial, and electronic circuit protection uses where low forward voltage drop and fast switching are crucial.

The device offers a maximum continuous forward current of 200 mA and can handle peak non-repetitive forward surge currents up to 600 mA. Its peak reverse voltage of 30 V and minimal leakage current of 2 µA provide excellent performance in rectification and switching circuits. The diode's peak reverse recovery time of 5 ns ensures rapid switching, enhancing efficiency in high-frequency applications.

Operating temperature ranges from -65°C to 150°C, making it suitable for demanding environments and conforming to automotive standard AEC-Q101. The low forward voltage drop (800 mV max) minimizes power loss during operation.

This Schottky diode is a key component in power regulation, signal detection, and clamping circuits in a variety of electronic systems, including automotive electronics, power supply modules, and consumer electronics.

High efficiency with low forward voltage drop. Compact, low-profile 4-pin SOT-143 package. Wide operating temperature range of -65°C to 150°C. Fast switching with peak reverse recovery time of 5 ns. Automotive grade compliant with AEC-Q101.

Low leakage current and peak reverse current. Manufactured in China. Explore more Schottky diodes and related components in EnvMart's comprehensive semiconductor catalog for reliable industrial applications.
