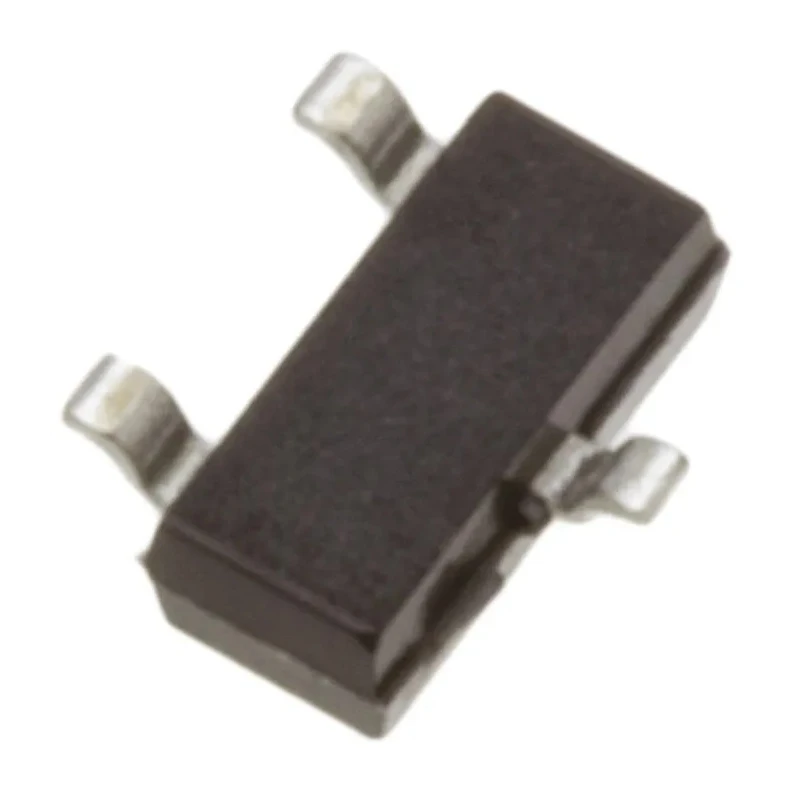

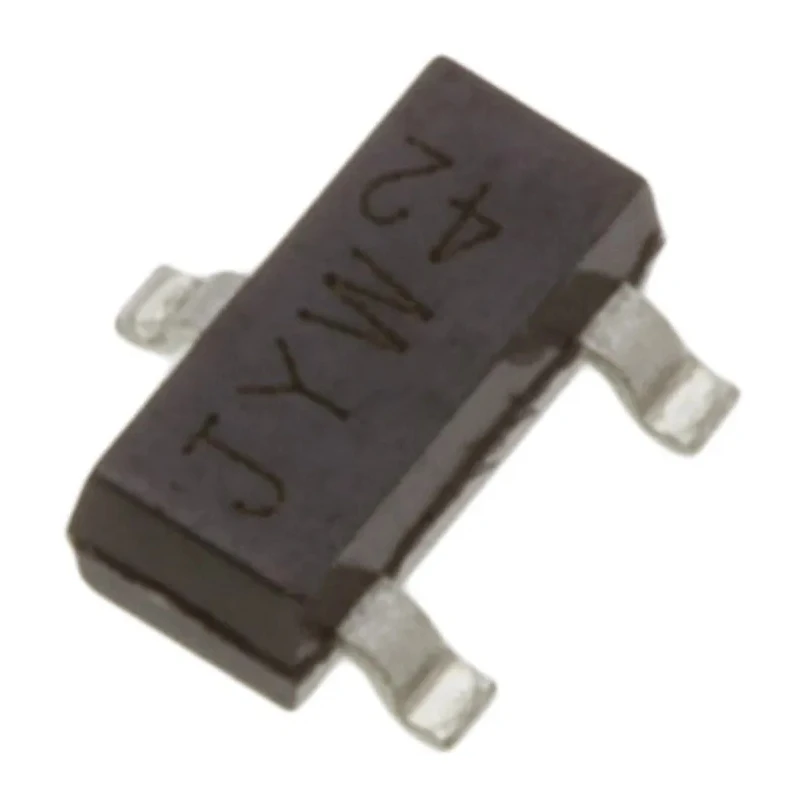

Nexperia Low Leakage 3-Pin SOT-23 Diode 85 V 160 mA BAV199,215

Nexperia BAV199,215 is a low leakage diode housed in a 3-pin SOT-23 surface mount package. It is engineered to support customized high-density circuit designs with its low leakage current and high voltage capabilities. With a maximum continuous forward current of 160 mA and peak reverse repetitive voltage of 85 V, this diode is ideal for applications requiring efficient switching and minimal power loss.

The device features a compact dimension of 3 mm length, 1.4 mm width, and 1 mm height, suitable for space-constrained electronic assemblies. It offers a low maximum forward voltage of 1.25 V and a high peak surge current of 4 A, allowing robust transient handling. The diode operates reliably across a temperature range of -65°C to 150°C, making it suitable for industrial, automotive, and general semiconductor applications.

Featuring a fast peak reverse recovery time of 3 μs, the BAV199,215 diode supports high-speed switching in power rectification and signal processing circuits. The peak reverse current is minimized at 5 nA to reduce leakage and improve overall device efficiency.

This diode complies with the automotive standard AEC-Q101, ensuring its performance and reliability in automotive electronic systems. It is a surface mount device enabling efficient machine assembly and integration in modern electronics manufacturing.

Typical applications for the Nexperia BAV199,215 diode include power management circuits, electronic signal rectification, automotive electronics, and other compact semiconductor designs requiring a low leakage, high voltage diode component. The diode supports advanced design requirements in industrial, automotive, communications, and consumer electronics sectors.

Maximum continuous forward current of 160 mA ensures reliable performance. Available in compact 3 mm length and 1.4 mm width SOT-23 package. Peak reverse repetitive voltage of 85 V supports high voltage applications. Low forward voltage of 1.25 V minimizes power loss during operation.

High peak non-repetitive forward surge current of 4 A for transient conditions. Operating temperature range from -65°C to 150°C for wide environmental tolerance. Low peak reverse current at 5 nA reduces leakage and improves efficiency.

Complies with automotive standard AEC-Q101 for automotive reliability. Fast peak reverse recovery time of 3 μs enables high speed switching. Surface mount type suitable for automated PCB assembly. Explore more semiconductor components including diodes and rectifiers on EnvMart for your industrial and engineering needs.
