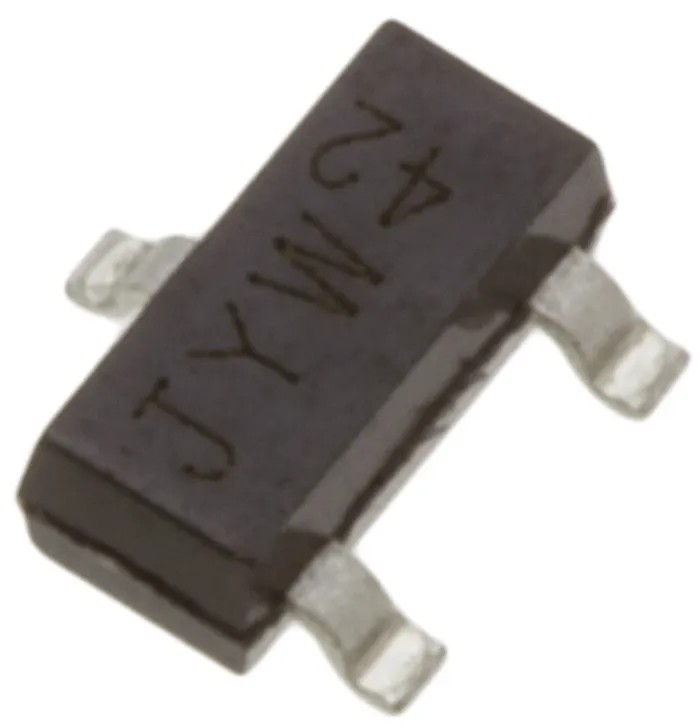

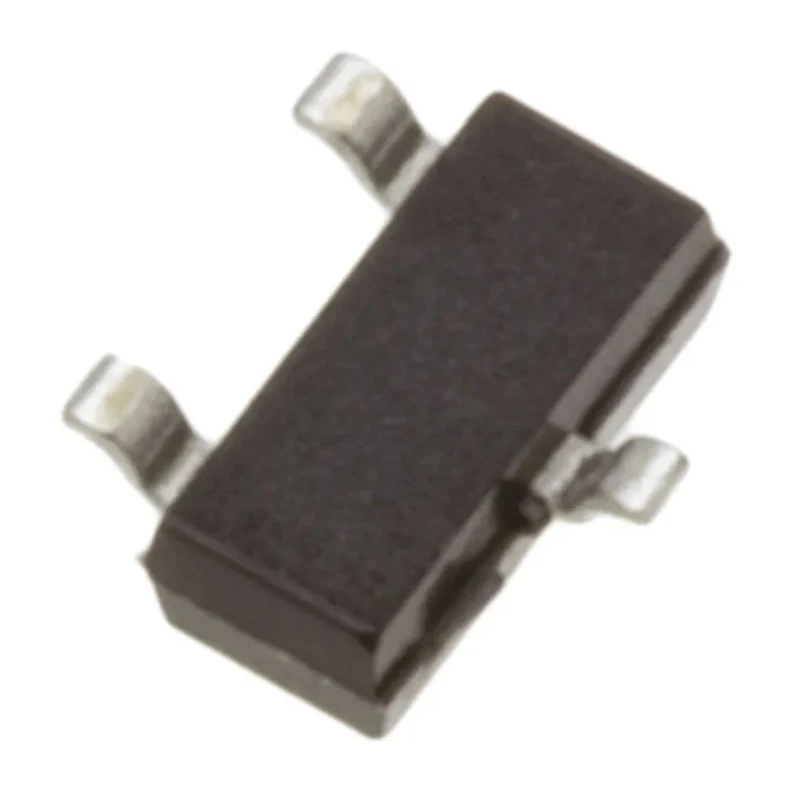

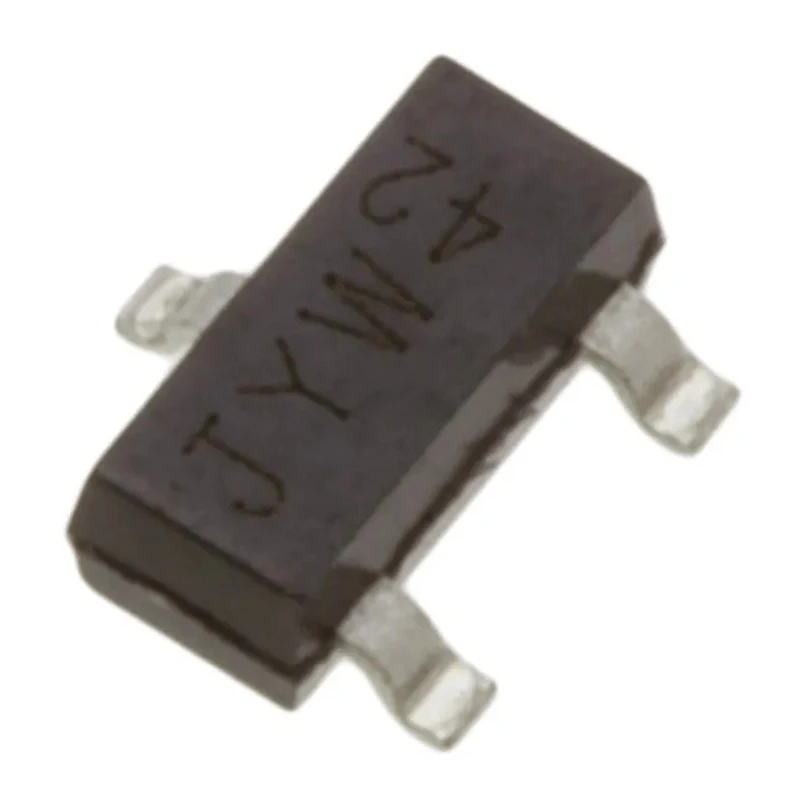

Nexperia Diode Low Leakage 85 V 160 mA Surface Mount SOT-23 Package BAV199,215

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Diode Low Leakage 85 V 160 mA Surface Mount SOT-23 Package BAV199,215

Name: Nexperia Diode Low Leakage 85 V 160 mA Surface Mount SOT-23 Package BAV199,215
Brand: Nexperia
SKU: 185417
Price: 0.07 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1mm
Length	3mm
Model	BAV199,215
Width	1.4mm
Mount Type	Surface
Series	BAV199
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	160mA
Peak Reverse Repetitive Voltage Vrrm	85V
Diode Configuration	Series
Rectifier Type	Low Leakage
Peak Reverse Current Ir	5nA
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	3μs
onsemi Silicon Junction, Series, 160 mA, 3-Pin 85 V SOT-23Brand	onsemi

Key Features

This diode features low capacitance and high switching speeds ideal for high density circuit designs.
Its maximum forward voltage is 1.25 V ensuring efficient operation.
Operates reliably between -65°C and 150°C, suitable for various environmental conditions.
Complies with automotive standard AEC-Q101 ensuring robust automotive performance.
Peak non-repetitive forward surge current rating is 4 A, providing reliable transient handling.
Has a peak reverse recovery time of 3 microseconds, optimizing switching performance.
Compact dimensions of 3 mm length, 1.4 mm width, and 1 mm height enable space-saving PCB integration.

Product Description

The Nexperia BAV199,215 diode is a high-performance low leakage semiconductor designed for surface mount applications, housed in the common SOT-23 package. Its key electrical parameters include a peak reverse voltage of 85 V and a continuous forward current of 160 mA, making it suitable for sensitive low power switching and rectification tasks.

Its low forward voltage drop of 1.25 V contributes to energy efficiency in circuit designs, while the low leakage current preserves device integrity under reverse voltage stress. This diode supports a peak non-repetitive forward surge current of 4 A, allowing it to withstand transient conditions without damage.

Engineered for high switching speeds and low capacitance, this component facilitates high density and rapid circuit switching, ideal for modern electronics including automotive and industrial control units. It meets the AEC-Q101 automotive standard, underscoring its reliability in automotive electronics environments.

With a temperature range spanning from -65°C to 150°C, the diode performs stably across extreme environments, providing durability in industrial, commercial, and automotive applications. Its compact physical dimensions (3 mm length, 1.4 mm width, 1 mm height) allow for flexible PCB layout designs where space optimization is critical.

This diode is suitable for use in industrial machinery, automotive electronics, power converters, and other semiconductor applications requiring low leakage and dependable switching.

Small form factor and surface mount compatibility ease manufacturing and assembly processes in automated lines. Robust electrical parameters ensure adherence to stringent electronics design criteria. Provides reliable operation in control circuits, general purpose switching, and signal rectification.

Low leakage characteristics help in energy-sensitive and precision electronic devices. Explore the broad range of Nexperia semiconductor solutions available on EnvMart to enhance your electronics projects and manufacturing needs.
